Xerox Phaser 3600 Service Manual

Phaser 3600 Printer Service Manual 5-25
Print-Quality Troubleshooting
Skew
The printed image is not parallel with both sides of the paper.
Initial Actions
■ Check the paper transfer path.
■ Ensure there are no debris on the transfer path.
5 Check the Fu
ser for correct
installation. Reseat the Fuser
(page 7-54).
Does the image quality improve?
Complete. Replace the
Fuser
(page 7-54).
Troubleshooting Reference Table

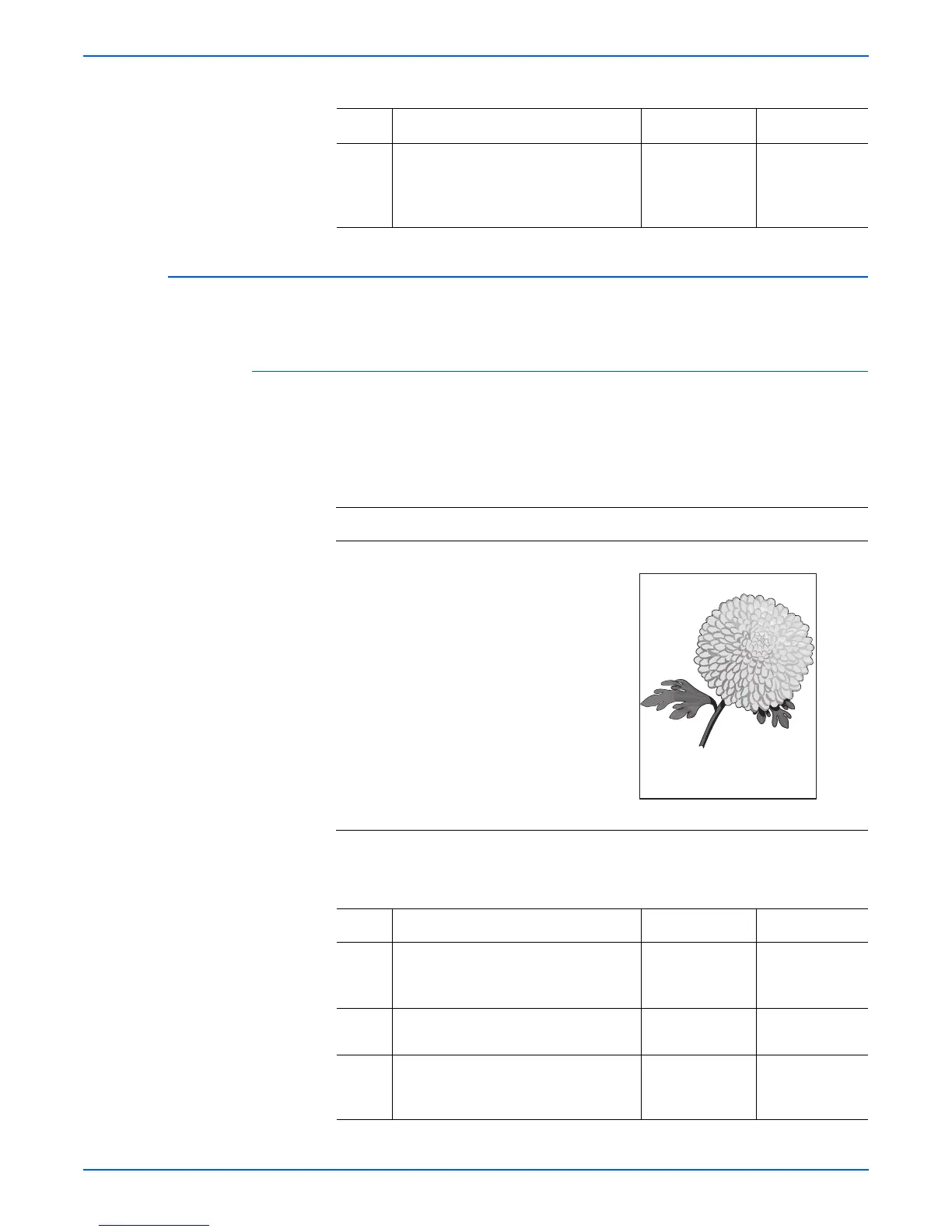

Applicable Notes Example Print
■ Retard Assembly, PL1.3.49
■ Tray 1 (MPT) Assembly, PL1.2.35
■ Separator Pad Assembly, PL1.3.4
■ Feed2 Idle Unit, PL1.3.50
■ Registration Assembly, PL1.1.12
■ Duplex Unit, PL2.3.0
Troubleshooting Procedure Table
Step Action and Questions Yes No
1 Print a demo page.
Does the error still occur when
pri
nt
ing?
Go to step 3. Go to step 2.
2 Print a customer application page.
Does the error still occur?
Go to step 3. Complete.
3 Check the paper condition.
Is the paper dry, recommended type,
and l
oaded in the correct position?
Go to step 4. Replace the
pape
r.
Troubleshooting Procedure Table (continued)
Step
Actions and Questions Yes No
Skew 2

Xerox Phaser 3600 Specifications

General

Color	No
Duplex printing	Yes
Print technology	Laser
Maximum resolution	600 x 600 DPI
Warm-up time (from sleep mode)	31 s
Print speed (black, normal quality, A4/US Letter)	38 ppm
Internal memory	32 MB
Maximum internal memory	512 MB
Total input capacity	600 sheets
Total output capacity	250 sheets
Maximum input capacity	1100 sheets
Paper tray 2 input capacity	500 sheets
Functions	Print
I/O ports	Parallel (IEEE 1284), USB 2.0
Device manager	DHCP, Xerox CentreWare Internet Services Embedded Web Server, Xerox CentreWare Printer Management for Microsoft, Novell, and UNIX
Package length	563.87 mm
Depth (imperial)	18.8 \
Width (imperial)	15.7 \
Height (imperial)	15.1 \
Power requirements	240 V, 50/60 Hz
Standard input trays	2
Print memory (standard)	64 MB
Power consumption (active)	700 W
Compatible operating systems	HP-UX 10.2, Linux, Mac OS X ver.10.2 Red Hat 9, SCO, SUSE 9, Solaris 2.5.1/2.6+, Windows 2000/Vista
Acoustic power emissions (standby)	35 dB
Standard output capacity for envelopes	8000 sheets
Acoustic power emissions (active, print, copy or scan)	56 dB
PCL fonts	68
Certification	CE, UL 60950-1/CSA 60950-1-03, FCC Part 15 Class A, 73/23/EEC, RoHS 2002/95/EC
Maximum duty cycle	200000 pages per month
Recommended duty cycle	8000 pages per month
Number of PostScript fonts	136
Power consumption (standby)	13 W
Power consumption (PowerSave)	130 W
Export Control Classification Number (ECCN)	EAR99

Weight and Dimensions

Depth	478 mm
Width	399 mm
Height	383 mm
Package width	515.61 mm
Package height	584.19 mm
Package weight	21201.2 g
Dimensions (WxDxH)	399 x 462 x 383 mm
