Xerox Phaser 3600

7-8 Phaser 3600 Printer Service Manual
Service Parts Disassembly

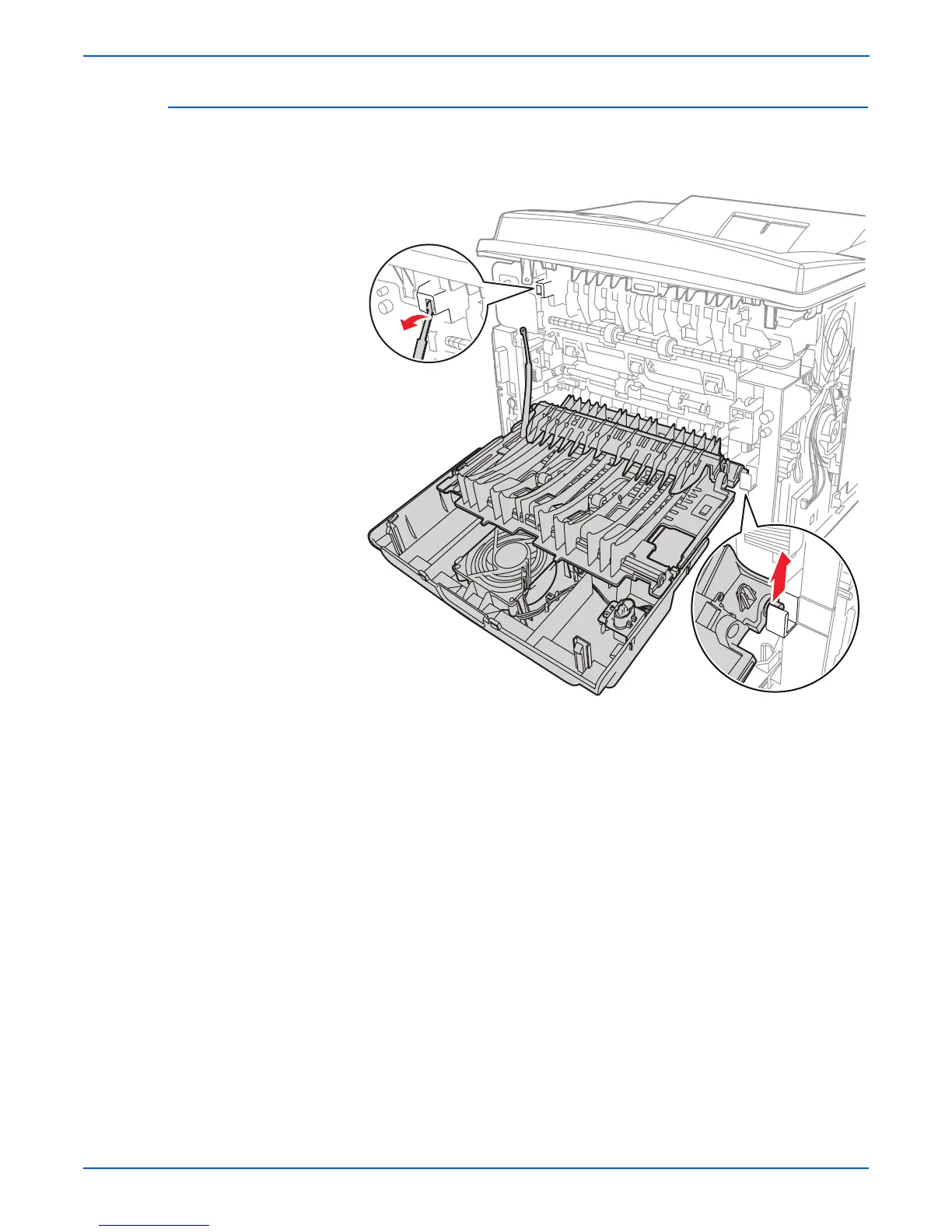

Rear Cover (PL 1.2.6)
1. Open the Rear Cover.
2. Release the Restraining Strap (tie stopper).
3. While facing the Rear Cover, lift up on the right hinge pin, slide the Rear
Cover to the right to free the left hinge pin, then remove the Rear Cover
from the printer.
s3600-040
