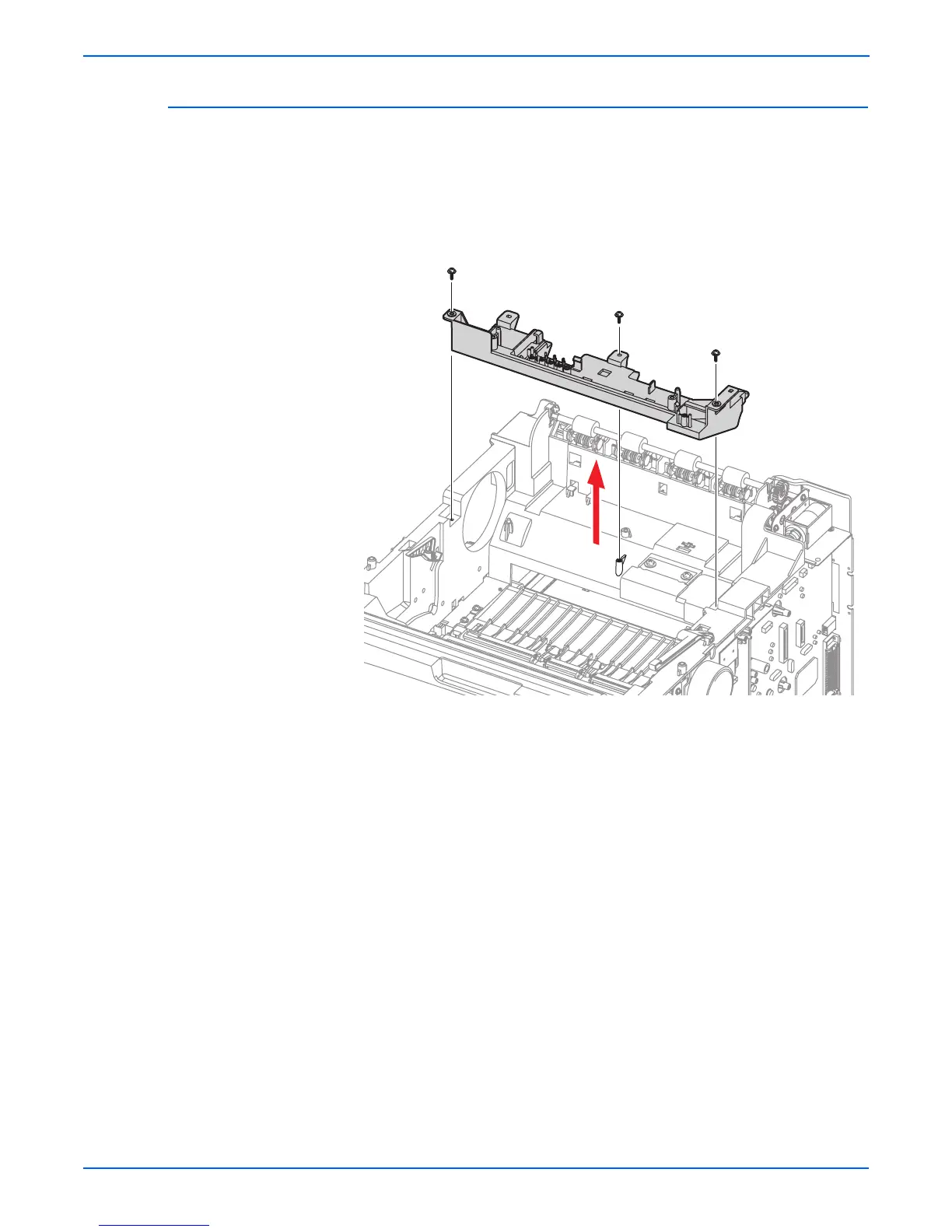

LSU Lower Cover (PL 1.3.48)
1. Remove 1 screw securing the fan duct.
2. Remove the fan and duct to access the screws in the next step.
3. Remove 3 screws (12mm) securing the LSU Cover.
4. Disconnect all the connectors running to the LSU Cover.
5. Lift the cover free from the chassis.
s3600-067
