7-40 Phaser 3600 Printer Service Manual
Service Parts Disassembly

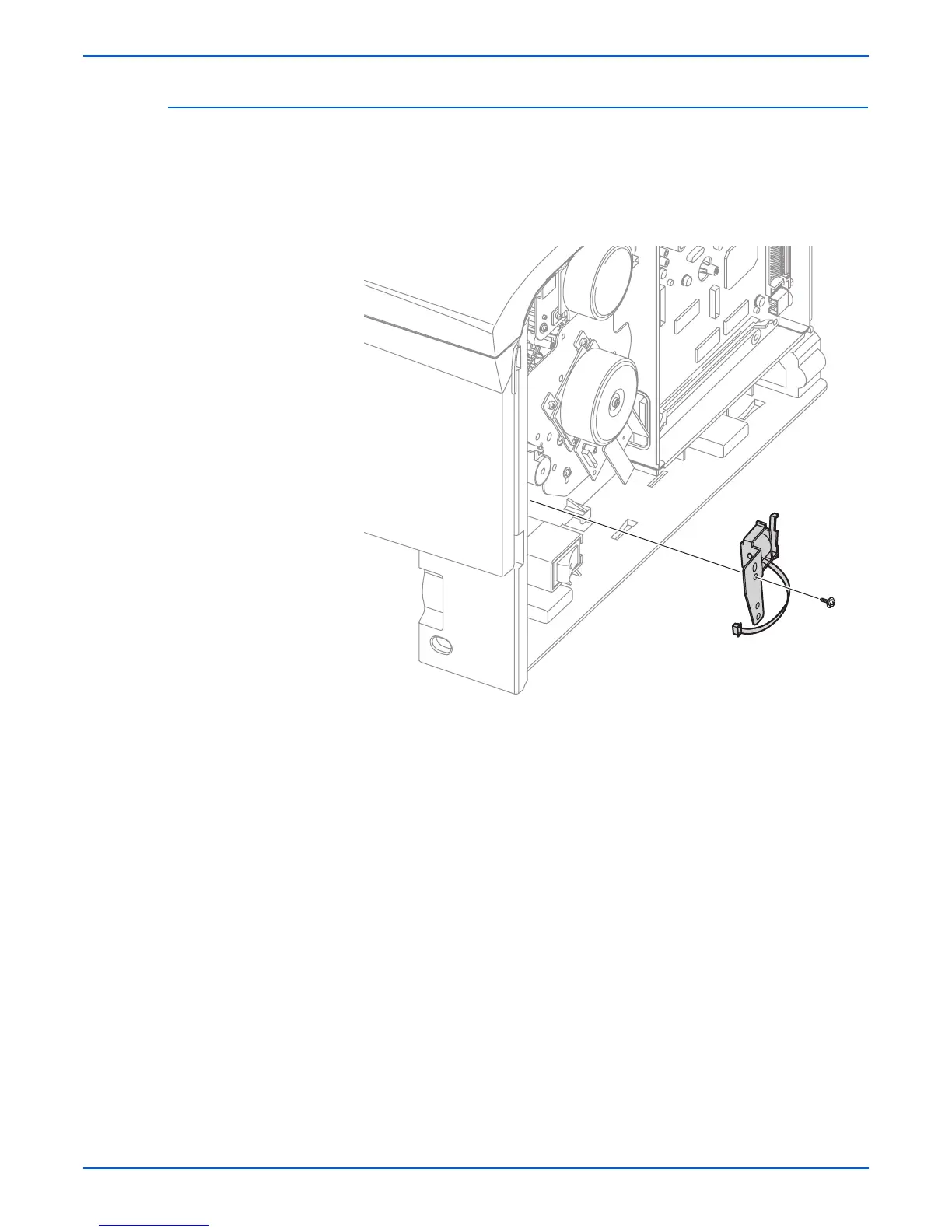

Main Solenoid (PL 1.1.25)
1. Remove the Right Cover (page 7-6).
2. Disconnect the connector (CN10) from the Joint Board to the Main
Solenoid.
3. Remove 1 screw securing the Main Solenoid and remove from the
chassis.
s3600-052
