7-48 Phaser 3600 Printer Service Manual
Service Parts Disassembly
Exit Solenoid (PL 1.1.16)
1. Remove the Right Cover (page 7-6).
2. Remove the Left Cover (page 7-7).
3. Remove the Top Cover (page 7-10).
4. Disconnect connector CN10 from the Main Board.
5. Remove 3 screws securing the solenoid to the printer.
6. Remove the solenoid assembly.
Note
There is a resistor attached by the upper right hand screw. When
reassembling the printer, ensure the resistor is in place.

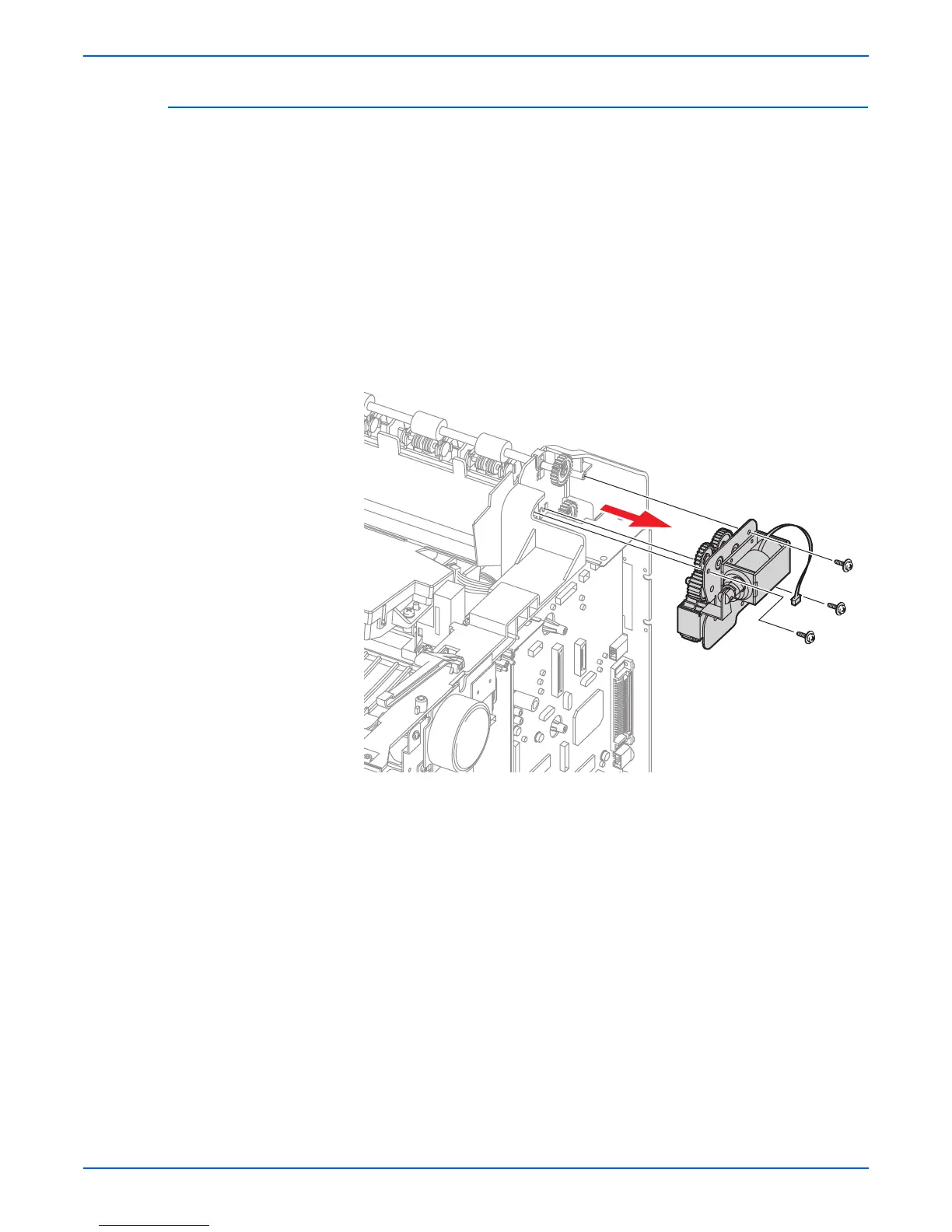

s3600-056
