Service Parts Disassembly
Power Supplies
High Voltage Power Supply (HVPS) (PL 1.1.29.1)
N
o
t
e
Do not lose the three board-retaining springs when removing the HVPS.
1. Remove the Left Cover (page 7-7).
2. Remove the Rear Cover (page 7-8).

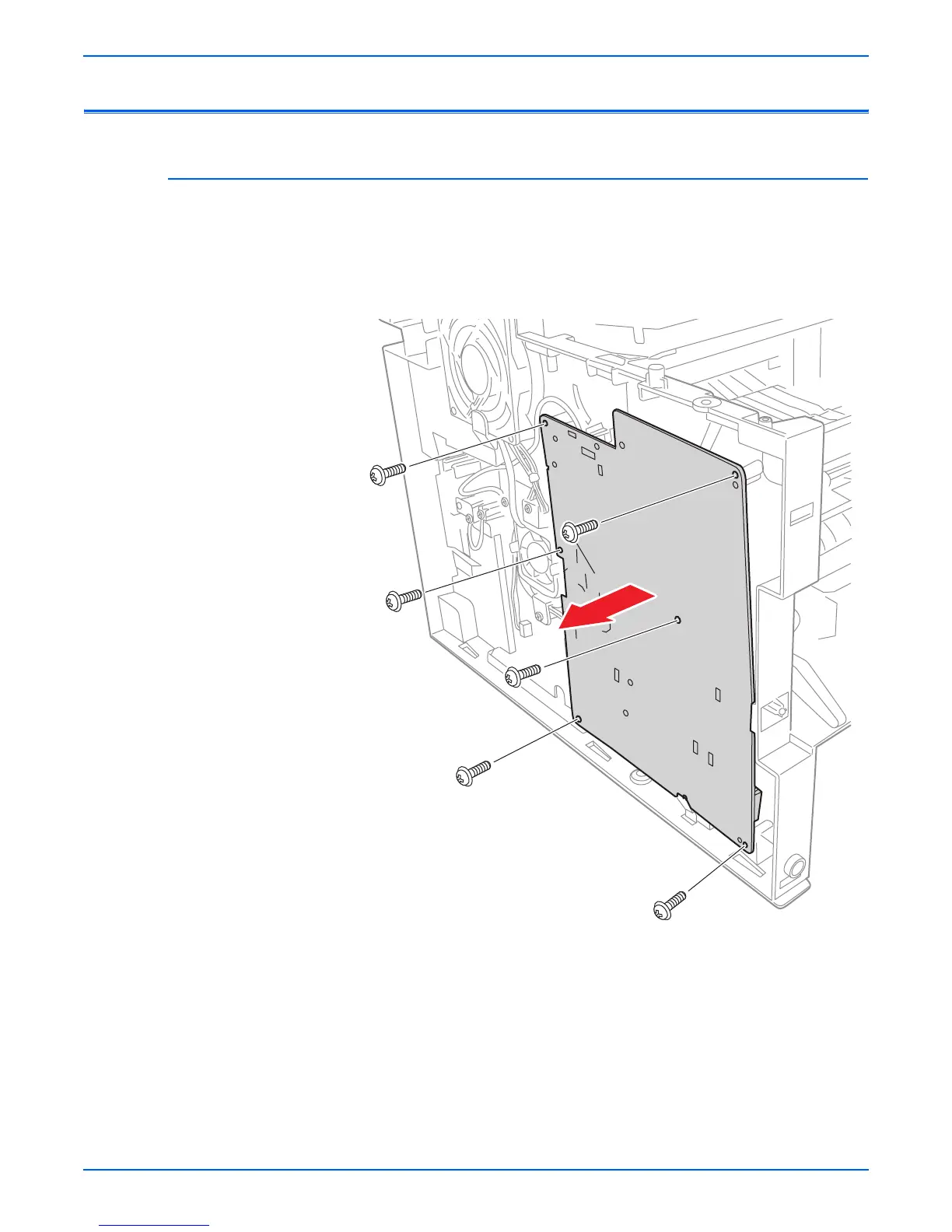

3. Remove 6 screws from the HVPS.
4. Disconnect all connectors from the HVPS.
5. Remove the HVPS from the printer.
Replacement Note
After reinstalling the SMPS board, make sure the actuator from the
chassis can move freely into the Paper Tray Empty Sensor.
s3600-092
