Xerox Phaser 3600

7-66 Phaser 3600 Printer Service Manual
Service Parts Disassembly
Dual-lamp (PL 1.4.56)
Warning
Be sure you turn off the Printer and let the Fuser cool for 5 minutes
1. Remove the Fuser Assembly from the Printer (page 7-54).
2. Remove the Heat Roller and Bushing (page 7-60).

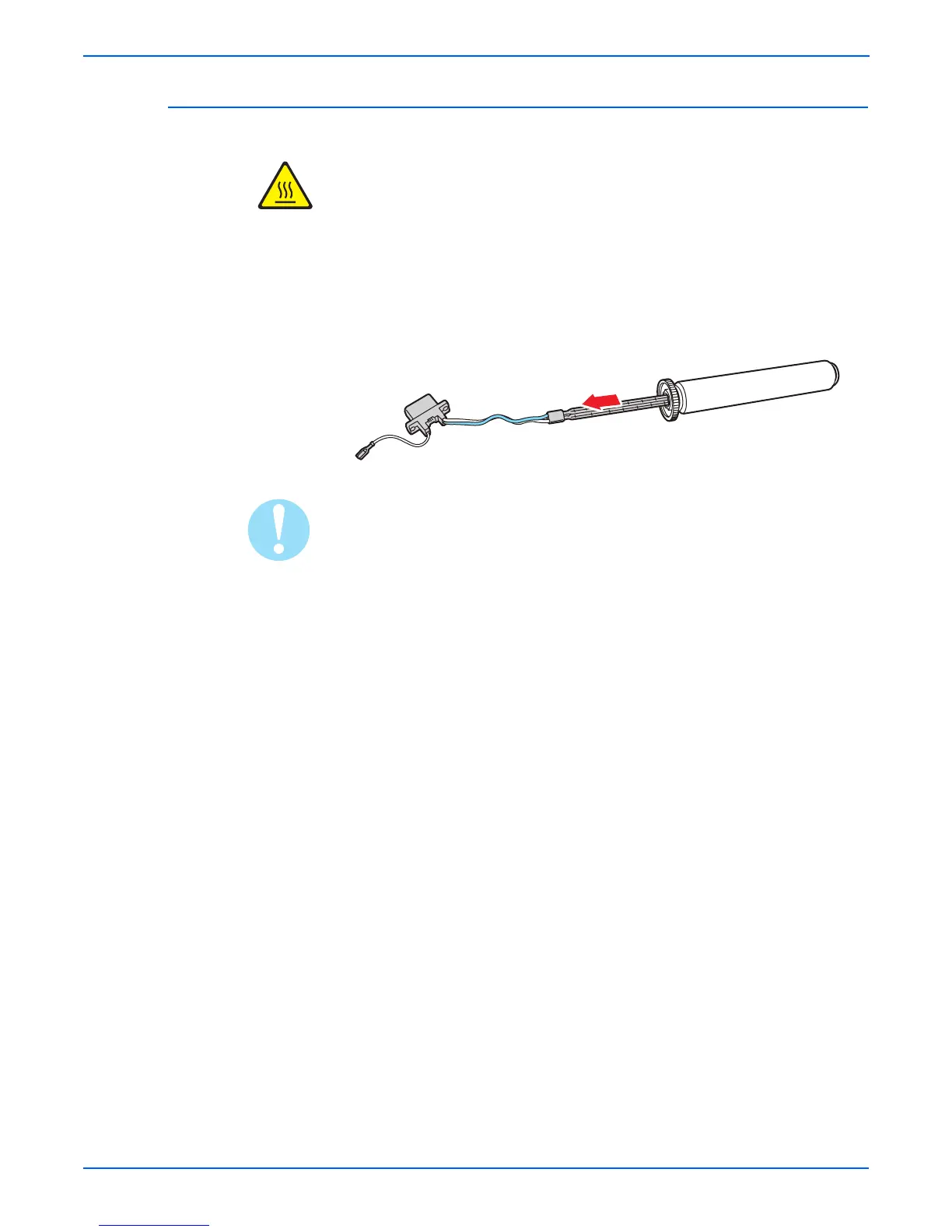

3. Slide the Dual-lamp free from the Heat Roller.
Caution
Do not touch the lamps when re-installing. Fingerprints can cause the lamps
to burn out prematurely.
s3600-120
