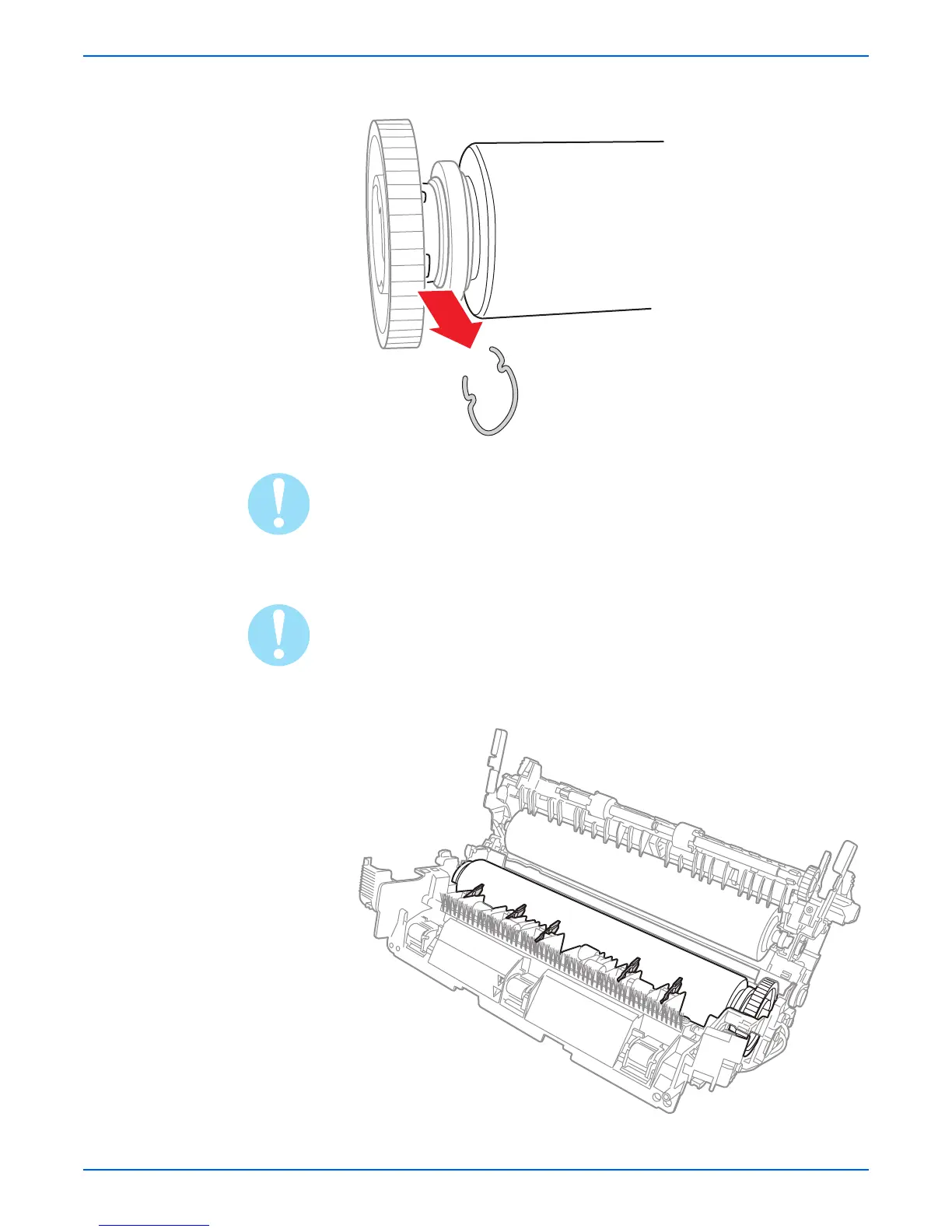

10. .From the right side of the roller, remove the spring retaining clip securing
the gear to the roller.
Caution
Be careful not to break the Dual-lamp when removing the roller.
Caution
Be sure to seat the Heat Roller claws over the Heat Roller before securing the
Heat Roller to the assembly.
s3600-122
s3600-126
