Xerox Phaser 3600

Phaser 3600 Printer Service Manual 7-35
Service Parts Disassembly

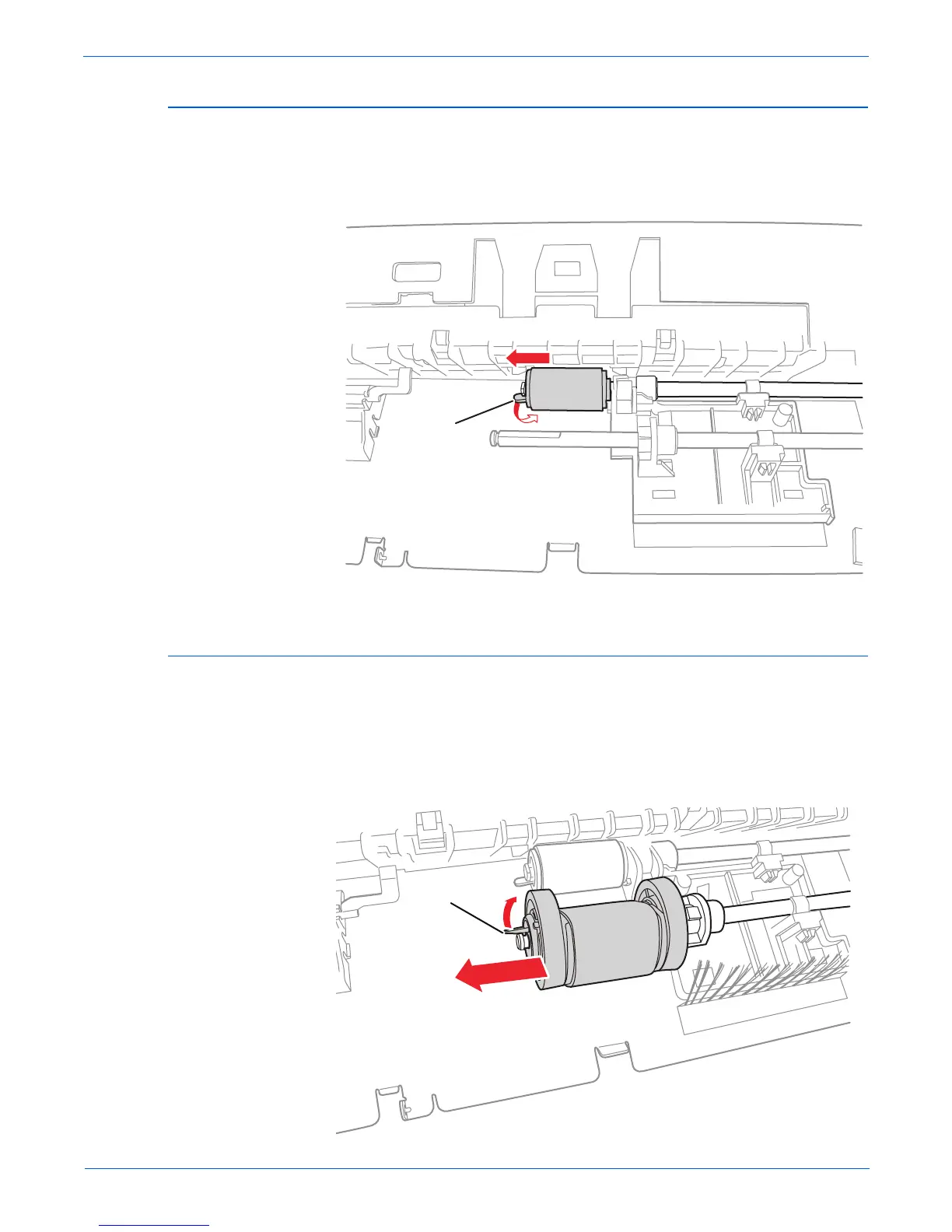

Tray 2 Feed Roller (PL1.3.59.5)
1. Perform all steps for removing the Tray 2 Pick-Up Assembly and Rollers
(page 7-30).
2. From underneath the chassis, depress the latch downward, then slide the
Feed Roller off of the shaft.
Tray 2 Pick Roller (PL1.3.59.2)
N
o
t
e
Since the Pick Roller is accessible directly underneath the chassis, there
is no need to remove any assemblies.
1. From underneath the chassis, depress the latch downward, then slide the
Pi
ck Roller off of the shaft.
s3600-105
Latch
s3600-106
Latch
