Phaser 3600 Printer Service Manual 7-47
Service Parts Disassembly

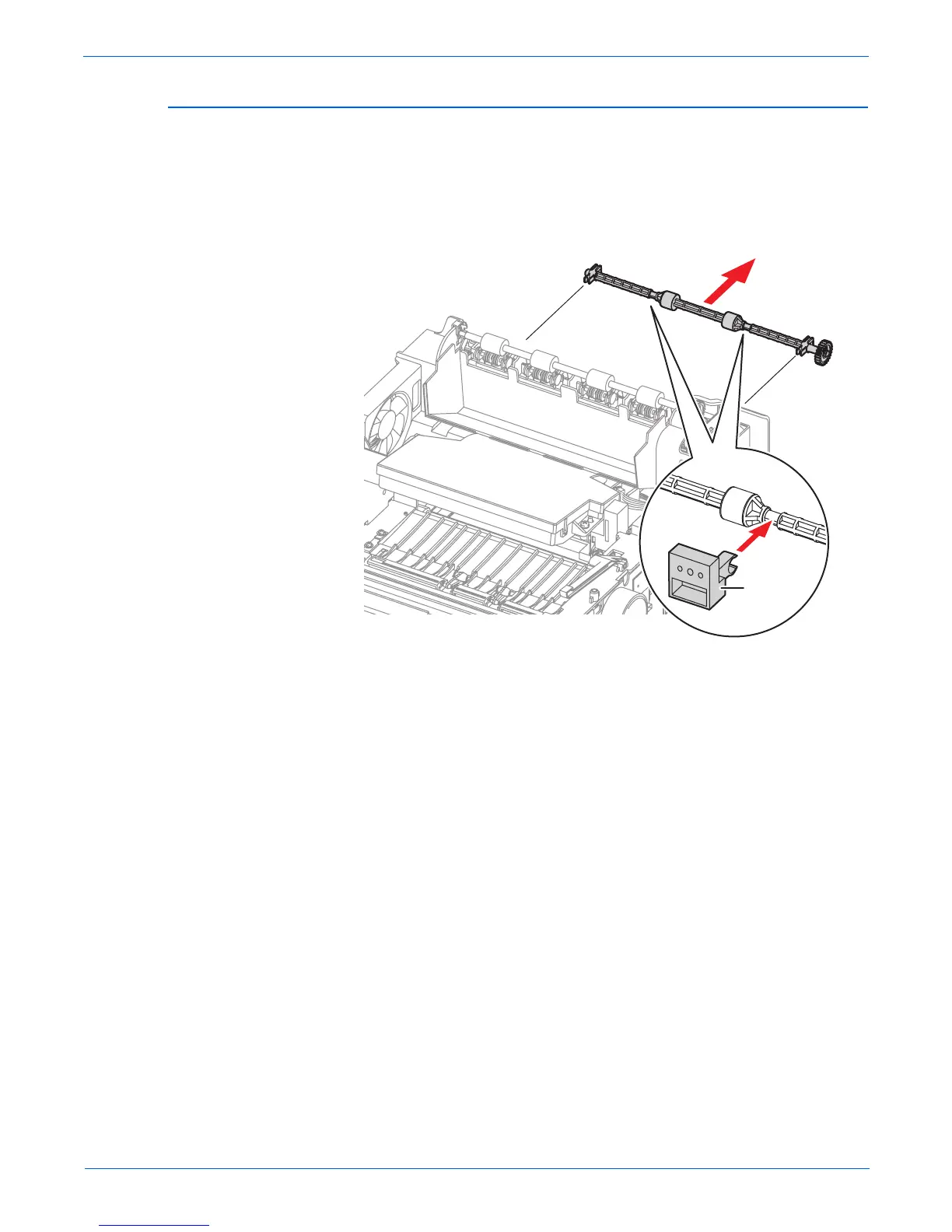

Duplex Roller (PL 1.3.11)
1. Remove the Right Cover (page 7-6).
2. Remove the Left Cover (page 7-7).
3. Remove the Top Cover (page 7-10).
4. Using a small flatblade screwdriver, spread apart the bearings on both
side of the duplex roller and remove from the printer.
Holder
s3600-060
