7-74 Phaser 3600 Printer Service Manual
Service Parts Disassembly
Cover Open Board and Sensor (PL 1.3.47)
1. Remove the Right Cover (page 7-6).
2. Remove the Left Cover (page 7-7).
3. Remove the Top Cover (page 7-10).
4. Remove the Laser Scan Unit (page 7-70).
5. Remove the LSU Lower Cover (page 7-72).
6. Remove 1 screw securing the cover open housing harness cover.
7. Release the latching tab and remove the cover open housing harness
cover.
8. Disconnect the connector (CN13) from the Main Board.
9. Using a small flatblade screwdriver, release the 4 tabs to remove the
Cover Open Board.

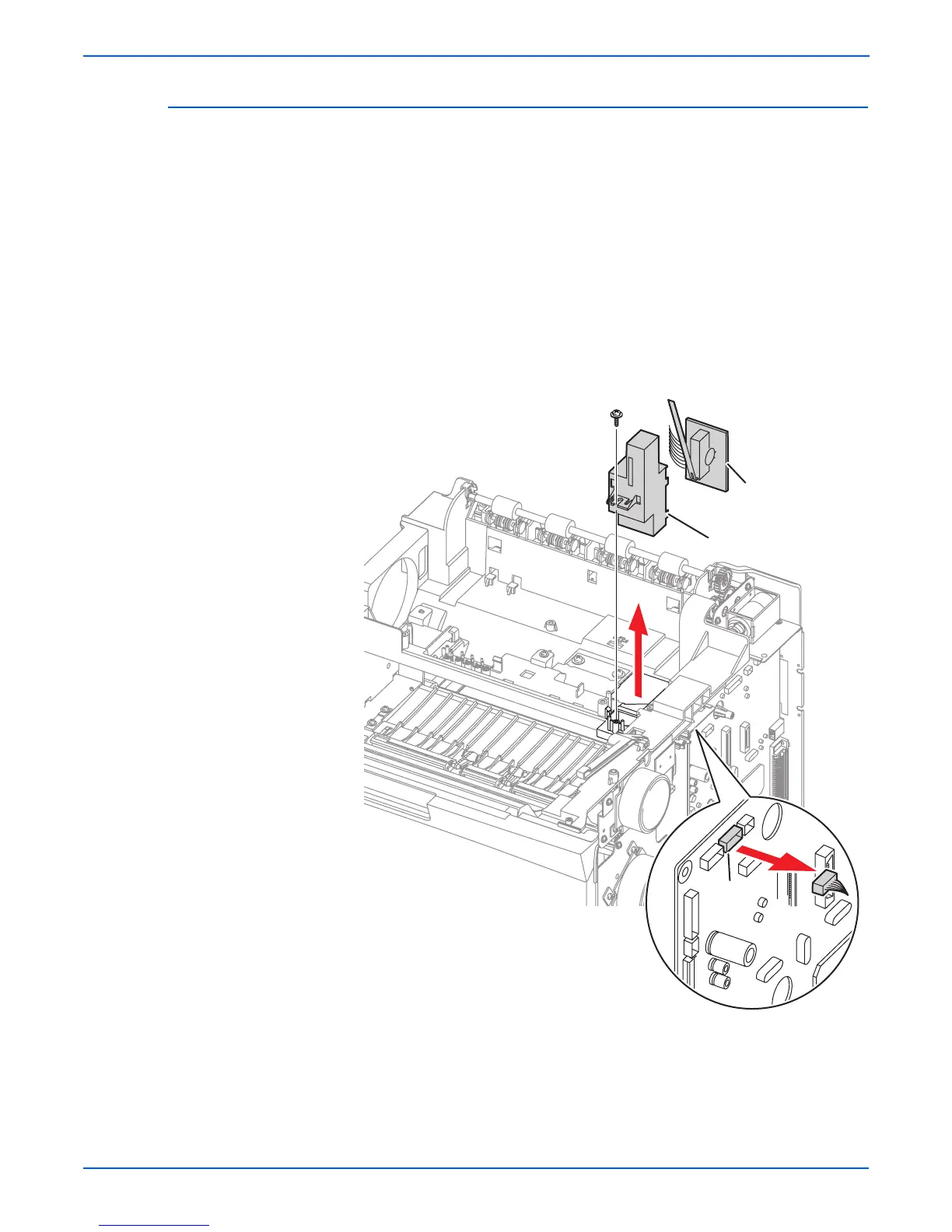

Cover Open Board
Harness Cover
Cover Open
s3600-070
