Phaser 3600 Printer Service Manual 7-19
Service Parts Disassembly

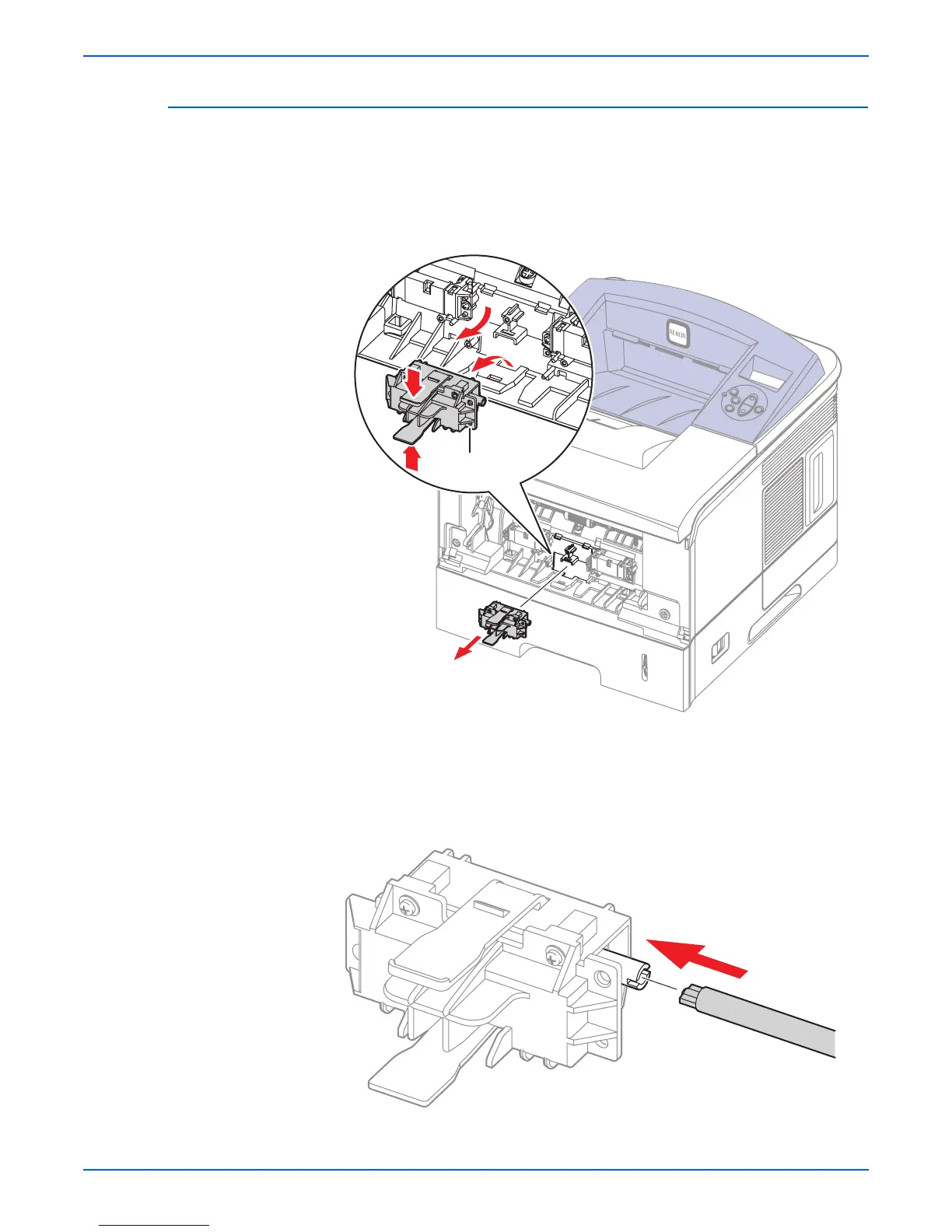

Retard Assembly (PL 1.3.49)
1. Remove Tray 1(MPT) Assembly (page 7-14).
2. Remove the Inner Cover (page 7-16).
3. Remove the Tray 1 Pick-Up rack (page 7-18).
4. Squeeze the lock as shown below and slide the Retard Assembly off of
the Retard Roller.
Replacement Note
When reassembling, insert the Retard Roller over the left end of the
retard shaft until the roller snaps in place.
Retard Assembly
s3600-037
s3600-009
