Phaser 3600 Printer Service Manual 2-3
Theory of Operation
Print Cartridge and Print Modes
Print Cartridge
The Print Cartridge receives image data in the form of pulsed laser light from
the Laser Scan Unit (LSU) and creates the image via the xerographic
process. The Print Cartridge contains the following components:
■ Charge Roller
■ Drum
■ Developer Roller (D/R)
■ Supply Roller (S/R)
■ Metering Blade
■ Cleaning Blade
Print Modes
The Phaser 3600 Laser Printer provides two print modes:
1. Draft mode: Uses a combination of reduced toner output and the lowest
resolution (300 x 300 dpi) to extend print cartridge life.
2. Enhanced mode: Used for printing on plain paper with an addressable
resolution of 1200 x 1200 dpi.

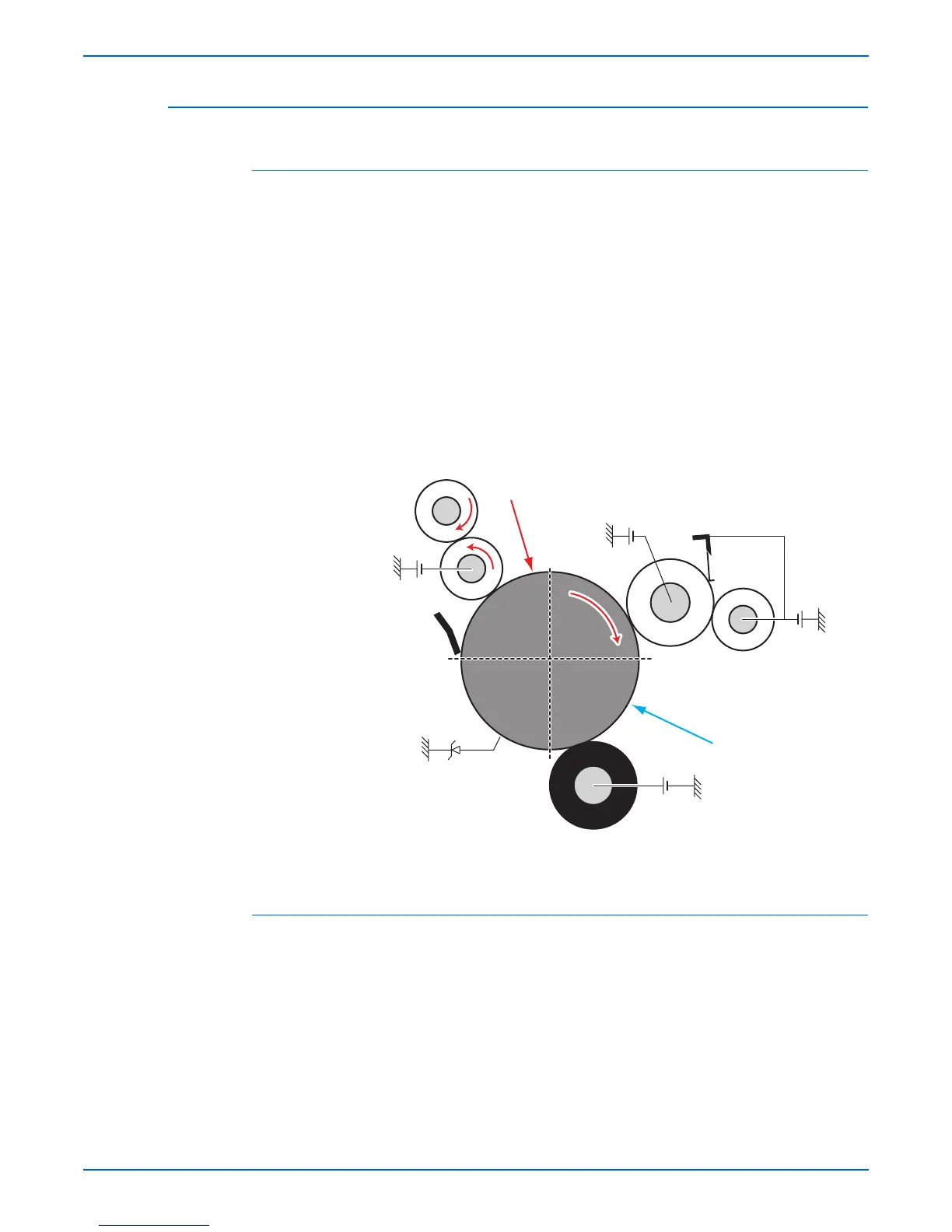

-1.5 ~ -1.30KV
-400 ~ -500±20V
-500 ~
-600±20V
s3600-004
LSU
0.20 mW
Charging Roller
Cleaning Blade
Transfer Roller
Developing
Roller
Supply Roller
Cleaning Roller
OPC Drum
Zener Diode
-100V
Doctor Blade
PTL
Max. +4.2kV
V
0
: -680V
V
L
: -620V

Xerox Phaser 3600 Specifications

General

Color	No
Duplex printing	Yes
Print technology	Laser
Maximum resolution	600 x 600 DPI
Warm-up time (from sleep mode)	31 s
Print speed (black, normal quality, A4/US Letter)	38 ppm
Internal memory	32 MB
Maximum internal memory	512 MB
Total input capacity	600 sheets
Total output capacity	250 sheets
Maximum input capacity	1100 sheets
Paper tray 2 input capacity	500 sheets
Functions	Print
I/O ports	Parallel (IEEE 1284), USB 2.0
Device manager	DHCP, Xerox CentreWare Internet Services Embedded Web Server, Xerox CentreWare Printer Management for Microsoft, Novell, and UNIX
Package length	563.87 mm
Depth (imperial)	18.8 \
Width (imperial)	15.7 \
Height (imperial)	15.1 \
Power requirements	240 V, 50/60 Hz
Standard input trays	2
Print memory (standard)	64 MB
Power consumption (active)	700 W
Compatible operating systems	HP-UX 10.2, Linux, Mac OS X ver.10.2 Red Hat 9, SCO, SUSE 9, Solaris 2.5.1/2.6+, Windows 2000/Vista
Acoustic power emissions (standby)	35 dB
Standard output capacity for envelopes	8000 sheets
Acoustic power emissions (active, print, copy or scan)	56 dB
PCL fonts	68
Certification	CE, UL 60950-1/CSA 60950-1-03, FCC Part 15 Class A, 73/23/EEC, RoHS 2002/95/EC
Maximum duty cycle	200000 pages per month
Recommended duty cycle	8000 pages per month
Number of PostScript fonts	136
Power consumption (standby)	13 W
Power consumption (PowerSave)	130 W
Export Control Classification Number (ECCN)	EAR99

Weight and Dimensions

Depth	478 mm
Width	399 mm
Height	383 mm
Package width	515.61 mm
Package height	584.19 mm
Package weight	21201.2 g
Dimensions (WxDxH)	399 x 462 x 383 mm
