Xerox Phaser 3600

7-46 Phaser 3600 Printer Service Manual
Service Parts Disassembly
Outbin Full Sensor (PL1.3.21)
1. Remove the Right Cover (page 7-6).
2. Remove the Left Cover (page 7-7).
3. Remove the Top Cover (page 7-10).
4. Disconnect the 3-wire harness connector (CN3) from the Toner Sensor
Board.

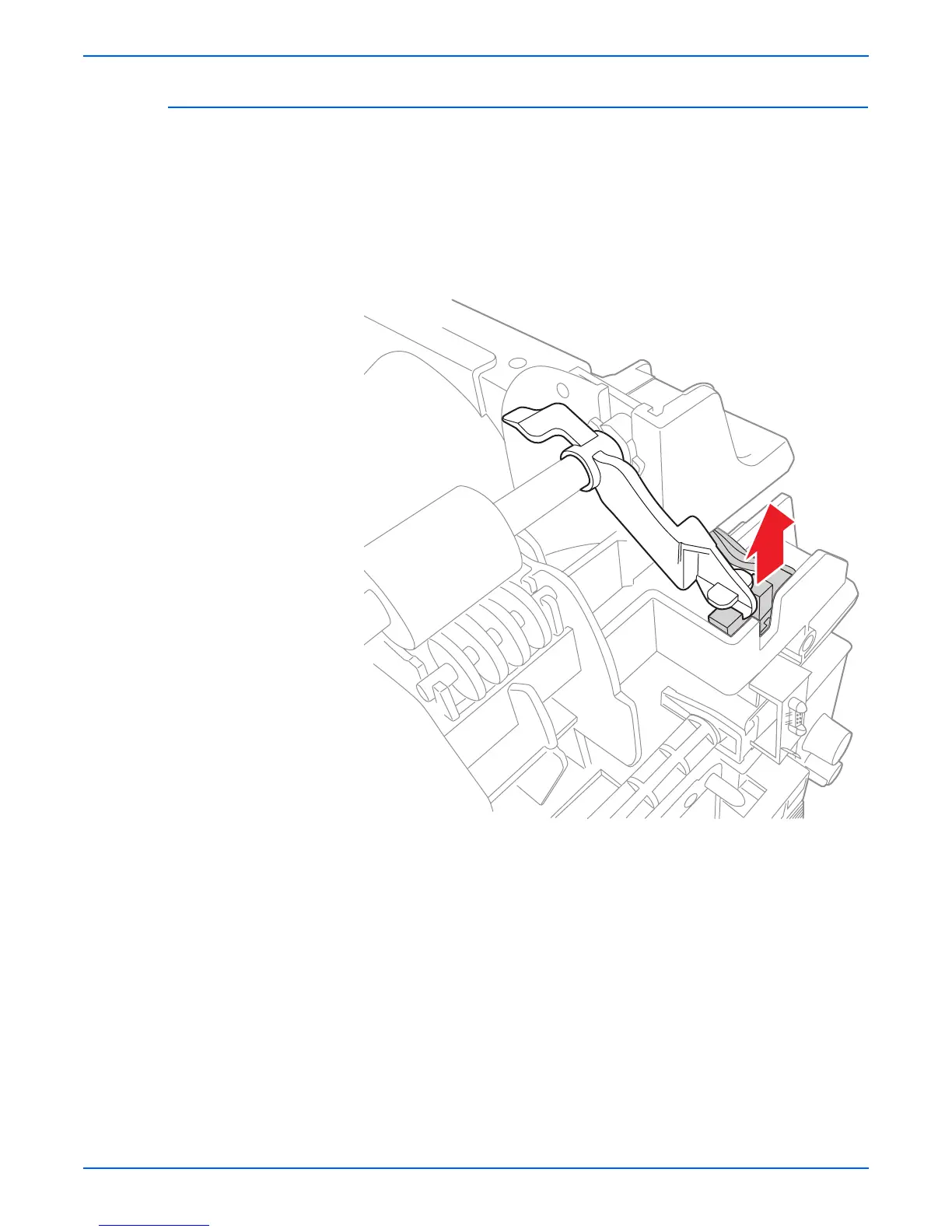

5. Pinch two black mounting tabs from underneath the sensors to release
and remove the sensor.
s3600-090
