Xerox Phaser 3600 Service Manual

1-6 Phaser 3600 Printer Service Manual
General Information
Printer Specifications
Printer Location and Clearance
Place the printer in a dust-free area where the temperature range is 50
degrees F to 89 degrees F (10 degrees C to 32 degrees C) and the relative
humidity range is between 20% to 80%.
■ Place the printer in an area where there is adequate space for ventilation,

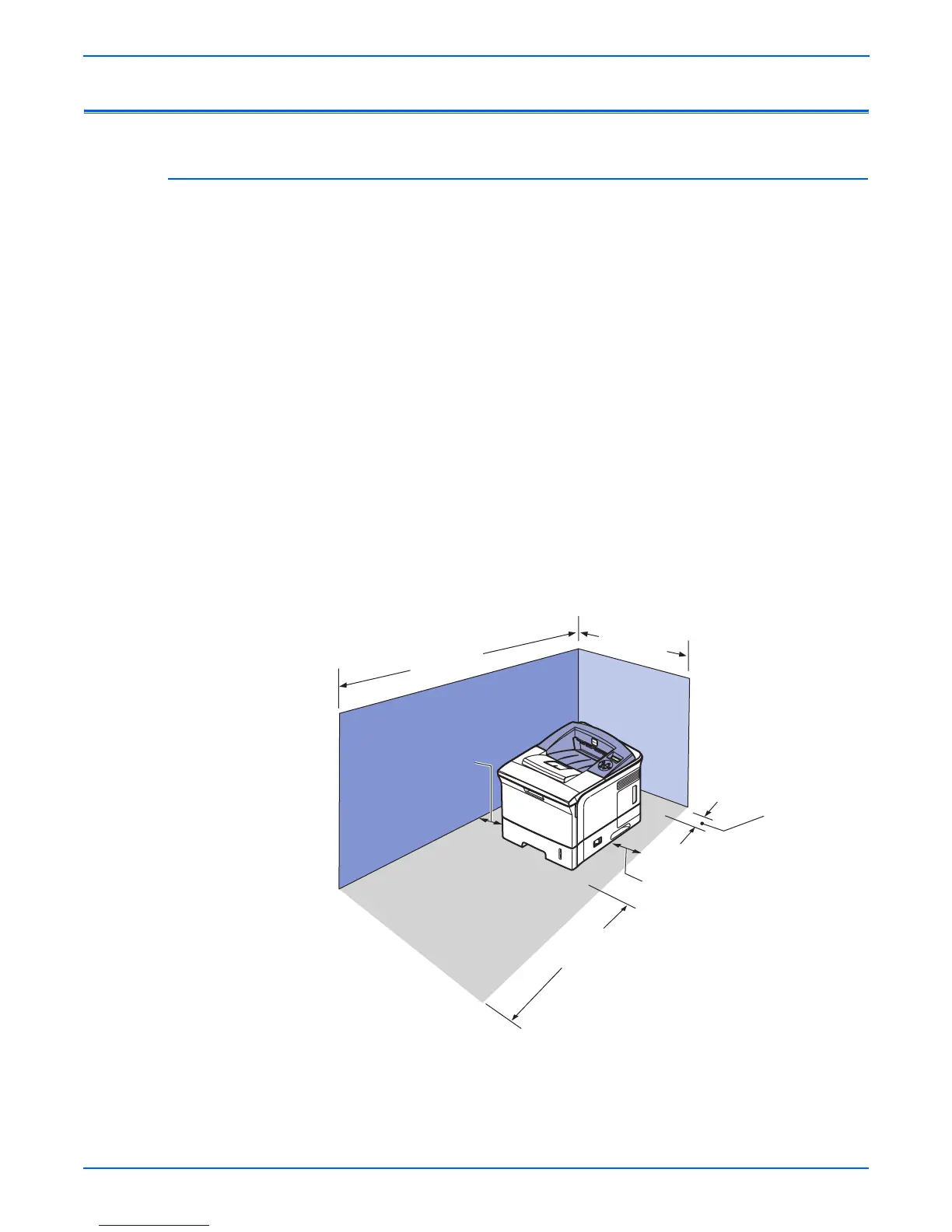

operation, and servicing. See the clearance graphic below.
■ Do not block or cover the slots and openings on the printer. The printer
can overheat without adequate ventilation.
■ For altitudes under 2,050 meters (6,726 feet), use the Low Altitude
setting. For altitudes over 2,050 meters (6,726 feet), use the High Altitude
setting.
■ Do not place the printer near a heat source.
■ Do not place the printer in direct sunlight.
■ Do not place the printer in line with the cold air flow from an air
conditioning system.
■ Place the printer on a level, solid surface with adequate strength for the
weight of the printer.
482.6 mm
(18.8 in.)
320 mm
(12.6 in.)
100 mm
(4 in.)
100 mm
(4 in.)
1255.6 mm
(49.2 in.)
596 mm
(24.6 in.)
s3600-003

Xerox Phaser 3600 Specifications

General

Color	No
Duplex printing	Yes
Print technology	Laser
Maximum resolution	600 x 600 DPI
Warm-up time (from sleep mode)	31 s
Print speed (black, normal quality, A4/US Letter)	38 ppm
Internal memory	32 MB
Maximum internal memory	512 MB
Total input capacity	600 sheets
Total output capacity	250 sheets
Maximum input capacity	1100 sheets
Paper tray 2 input capacity	500 sheets
Functions	Print
I/O ports	Parallel (IEEE 1284), USB 2.0
Device manager	DHCP, Xerox CentreWare Internet Services Embedded Web Server, Xerox CentreWare Printer Management for Microsoft, Novell, and UNIX
Package length	563.87 mm
Depth (imperial)	18.8 \
Width (imperial)	15.7 \
Height (imperial)	15.1 \
Power requirements	240 V, 50/60 Hz
Standard input trays	2
Print memory (standard)	64 MB
Power consumption (active)	700 W
Compatible operating systems	HP-UX 10.2, Linux, Mac OS X ver.10.2 Red Hat 9, SCO, SUSE 9, Solaris 2.5.1/2.6+, Windows 2000/Vista
Acoustic power emissions (standby)	35 dB
Standard output capacity for envelopes	8000 sheets
Acoustic power emissions (active, print, copy or scan)	56 dB
PCL fonts	68
Certification	CE, UL 60950-1/CSA 60950-1-03, FCC Part 15 Class A, 73/23/EEC, RoHS 2002/95/EC
Maximum duty cycle	200000 pages per month
Recommended duty cycle	8000 pages per month
Number of PostScript fonts	136
Power consumption (standby)	13 W
Power consumption (PowerSave)	130 W
Export Control Classification Number (ECCN)	EAR99

Weight and Dimensions

Depth	478 mm
Width	399 mm
Height	383 mm
Package width	515.61 mm
Package height	584.19 mm
Package weight	21201.2 g
Dimensions (WxDxH)	399 x 462 x 383 mm
