Xerox Phaser 3600

Phaser 3600 Printer Service Manual 7-57
Service Parts Disassembly
Fuser Thermostat (PL 1.4.3)
Warning
Be sure you turn off the Printer and let the Fuser cool for 5 minutes

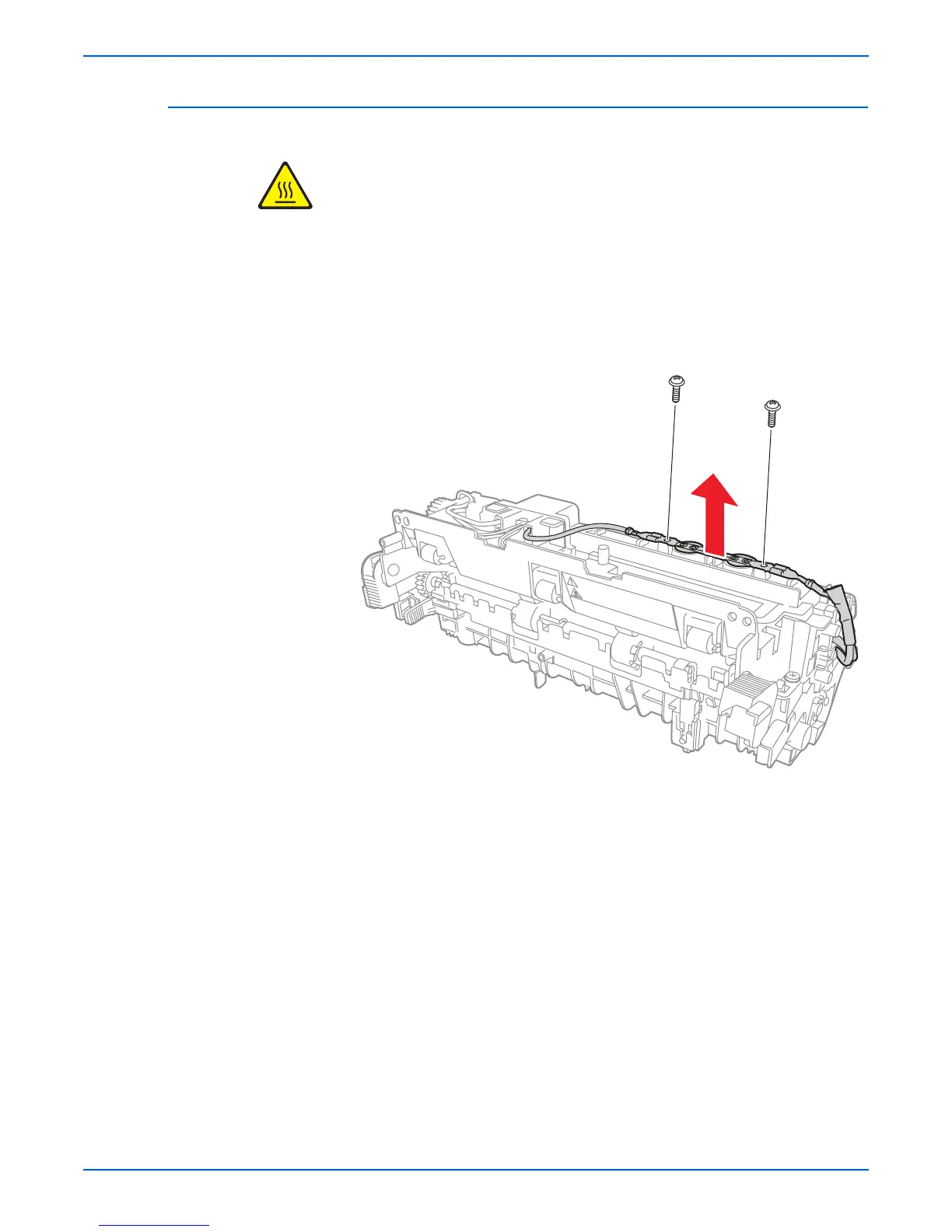

1. Remove the Fuser Assembly from the Printer (page 7-54).
2. Remove two screws (6mm) securing the Thermostat to the Fuser
assembly.
3. Slide one wire connector off each end of the Thermostat tabs.
4. Pull the Thermostat free from the Fuser Assembly.
Replacement Note
Be sure to insert the Thermostat with the Foil side near the edge of
the Assembly.
s3600-115
