Xerox Phaser 3600

Phaser 3600 Printer Service Manual 7-41
Service Parts Disassembly
Registration Assembly (PL 1.1.12)
1. Remove the Right Cover (page 7-6).
2. Remove the Left Cover (page 7-7).
3. Remove the Top Cover (page 7-10).

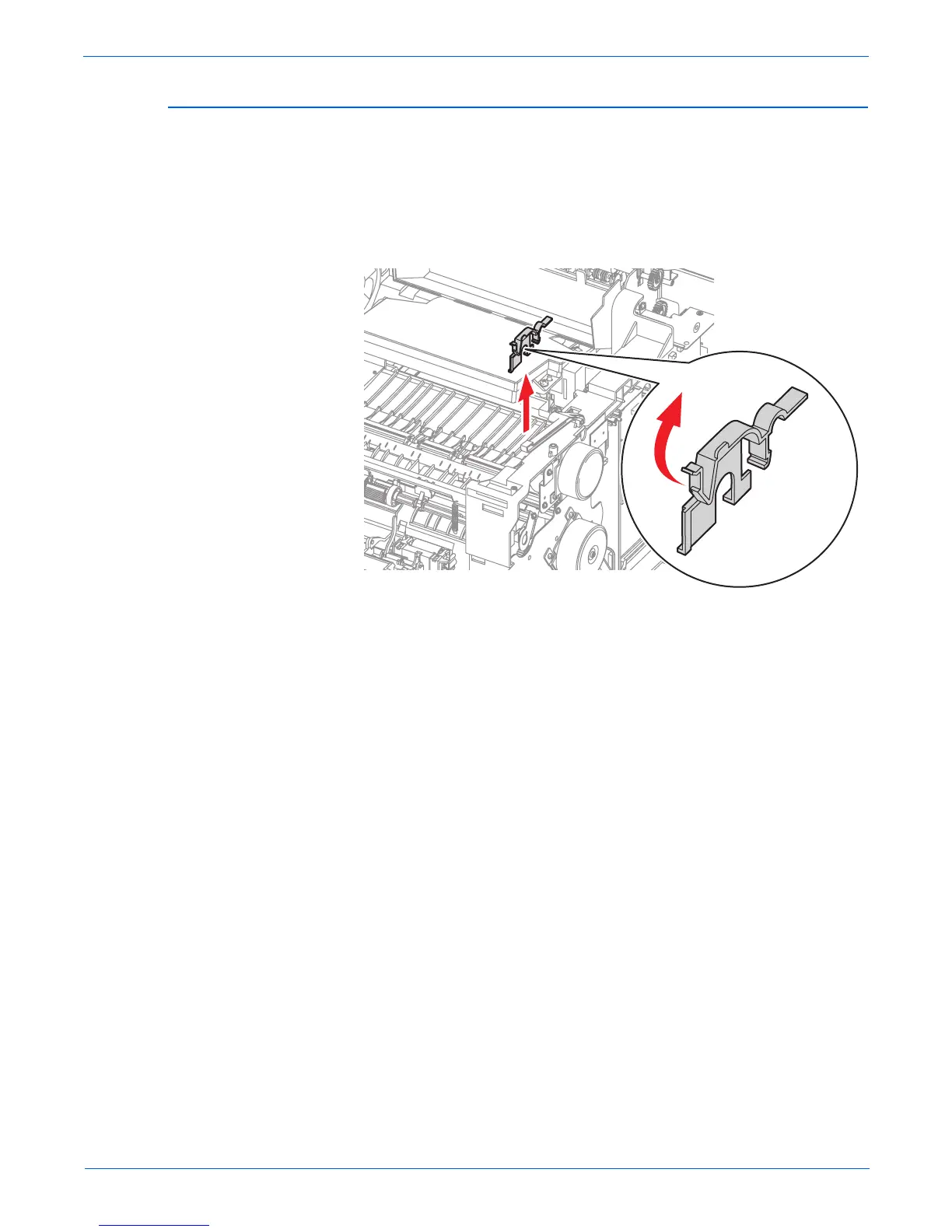

4. Locate the Gear Cap on the right side of the Registration Assembly.
5. Lift up on the tab to release and remove the Gear Cap from the assembly.
6. Remove the 4 screws securing the Registration Assembly to the printer.
7. Remove the Registration Assembly from the printer.
s3600-053
Gear Cap
