Xerox Phaser 3600

Phaser 3600 Printer Service Manual 7-9
Service Parts Disassembly

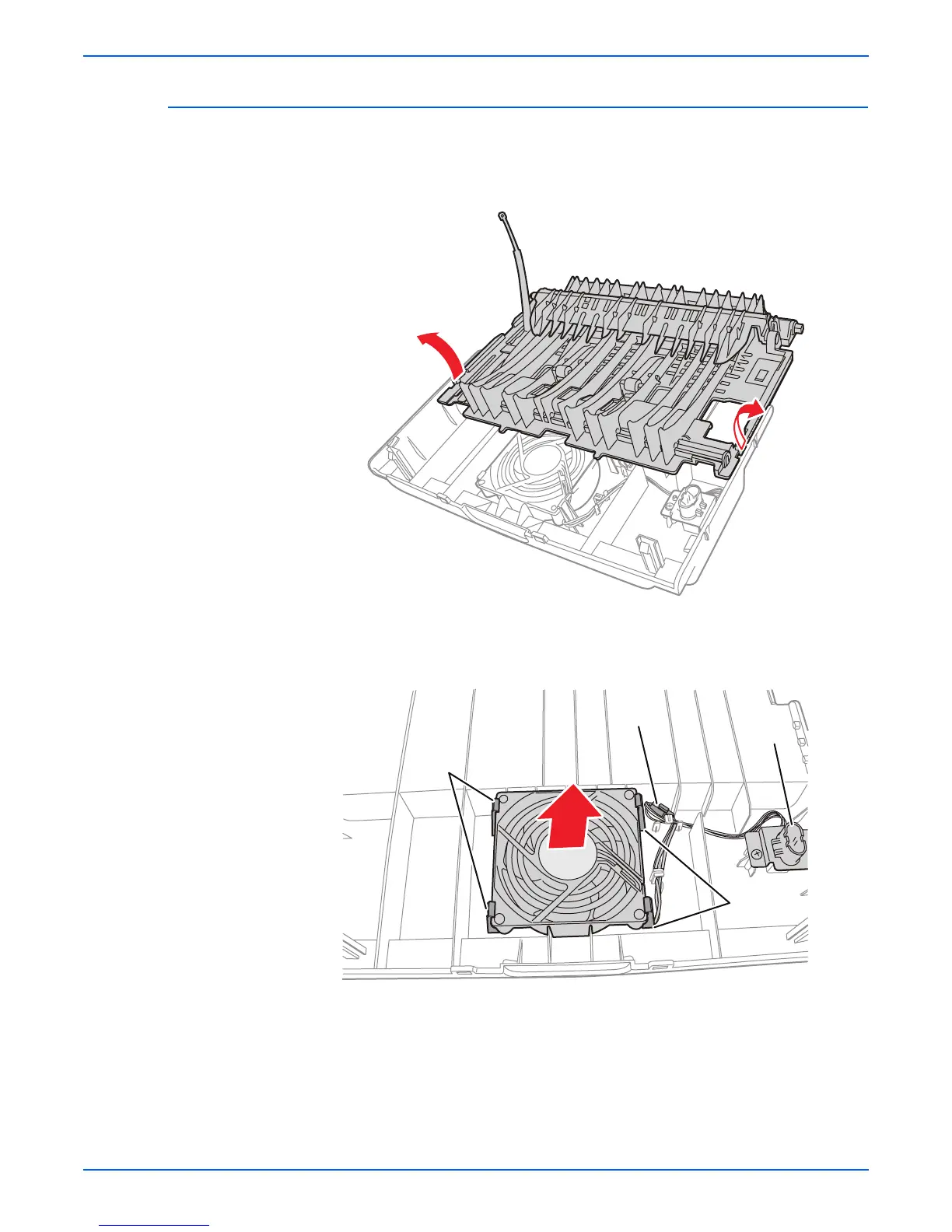

Rear Cover Fan (PL1.2.6.10)
1. Remove the Rear Cover (page 7-8).
2. Use a flatblade screwdriver to flex one side of the paper guide, then lift
and remove to expose the fan.
3. Disconnect the interim connector (P/J4) from the three-wire harness to
the fan.
4. Flex two hooks on one side of the fan to release and remove.
s3600-108
Hooks
Hooks
s3600-109
P/J4
P/J3
