Fuser Assembly (1.3.80)
Warning
Be sure you turn off the Printer and let the Fuser cool for 5 minutes
1. Remove the Rear Cover (page 7-8).

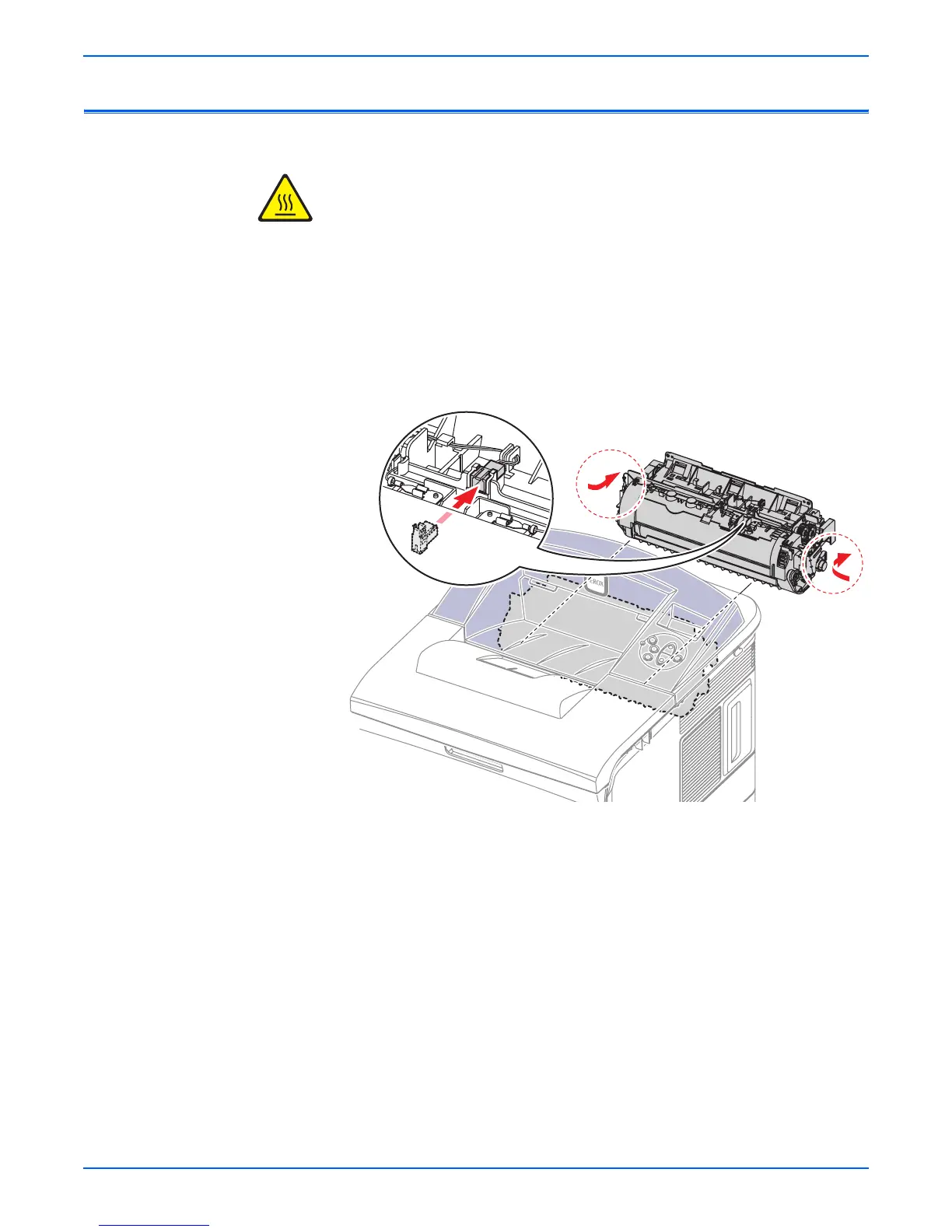

2. Pull the locking lever and take out the Fuser Assembly.
N
o
t
e
Press the two green tabs towards the center of the machine to pull out the
Fuser.
Replacement Note
When you replace the Fuser, run the Clean Fuser cycle from the
Control Panel (page 6-4).
Thermistor
Connector
s3600-065
