Xerox Phaser 3600

7-64 Phaser 3600 Printer Service Manual
Service Parts Disassembly

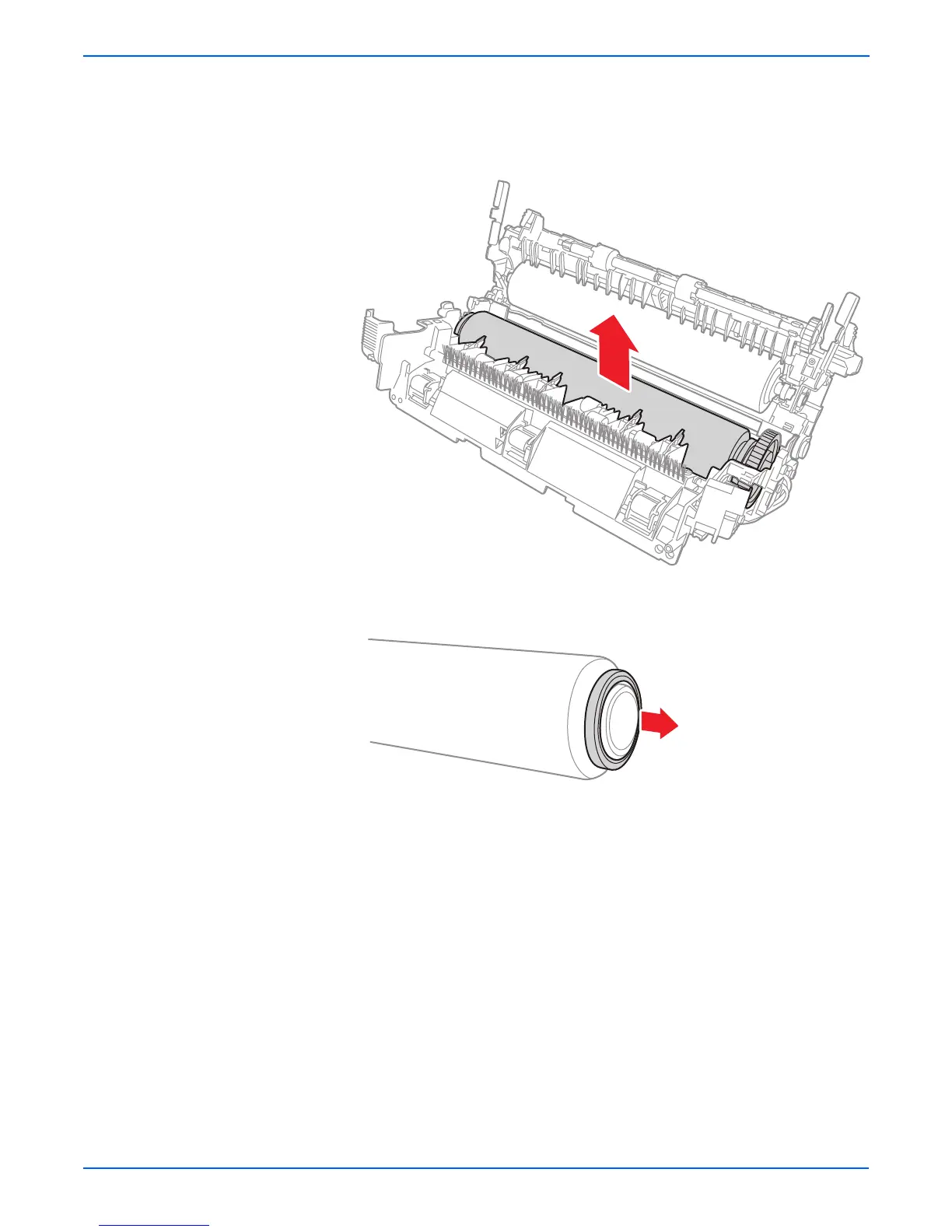

8. Pull the retaining plates away from roller and lift the roller free from the
assembly.
Note
Make sure you do not lose any of the Heat Roller claws.
9. Remove the bushing (and rubber sleeve) from the left side of the roller.
s3600-125
s3600-121
