Phaser 3600 Printer Service Manual 7-63
Service Parts Disassembly

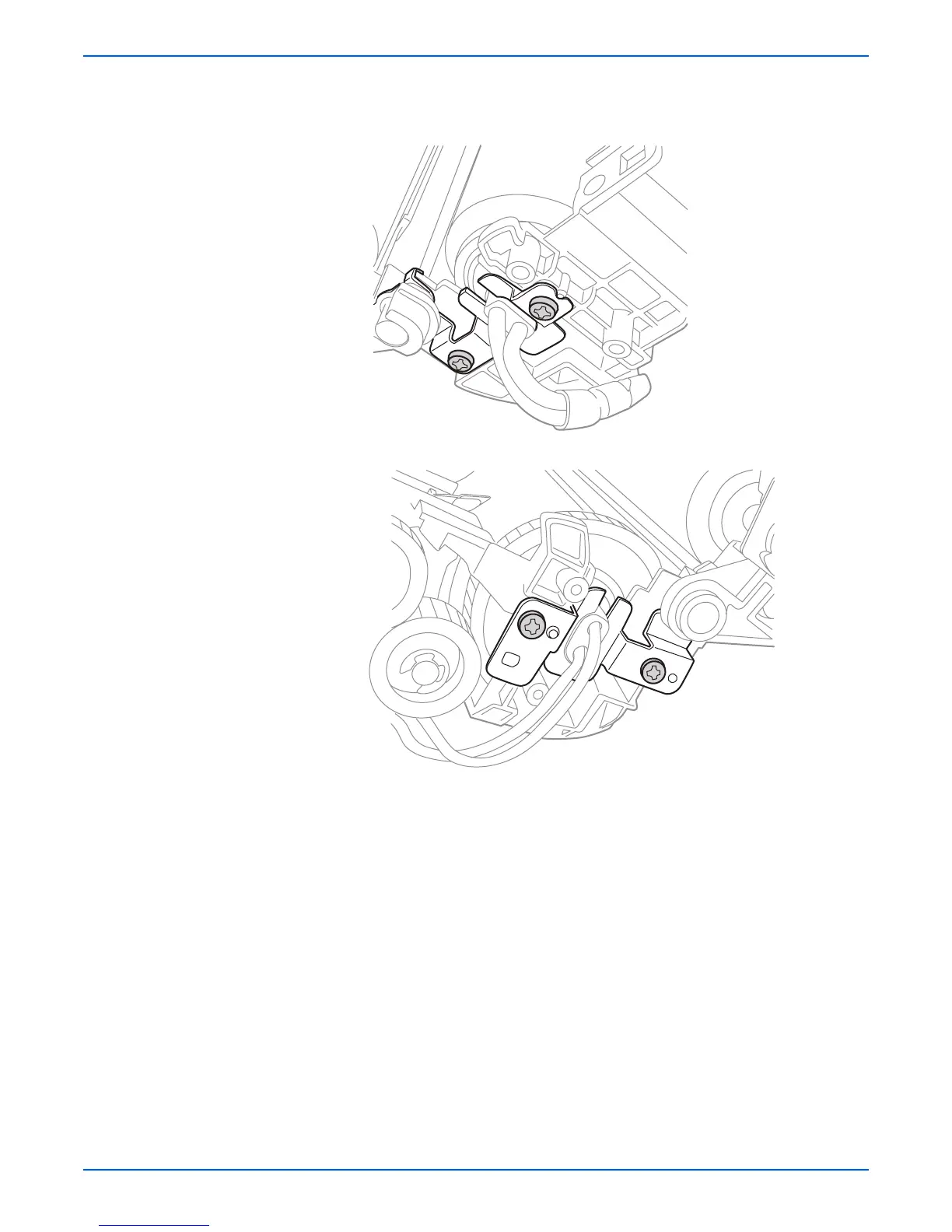

7. Loosen (but do not remove) two screws (6mm) securing the Heat Roller
retaining plates on each side of the Heat Roller.
s3600-118
L
s3600-127
R
