7-62 Phaser 3600 Printer Service Manual
Service Parts Disassembly

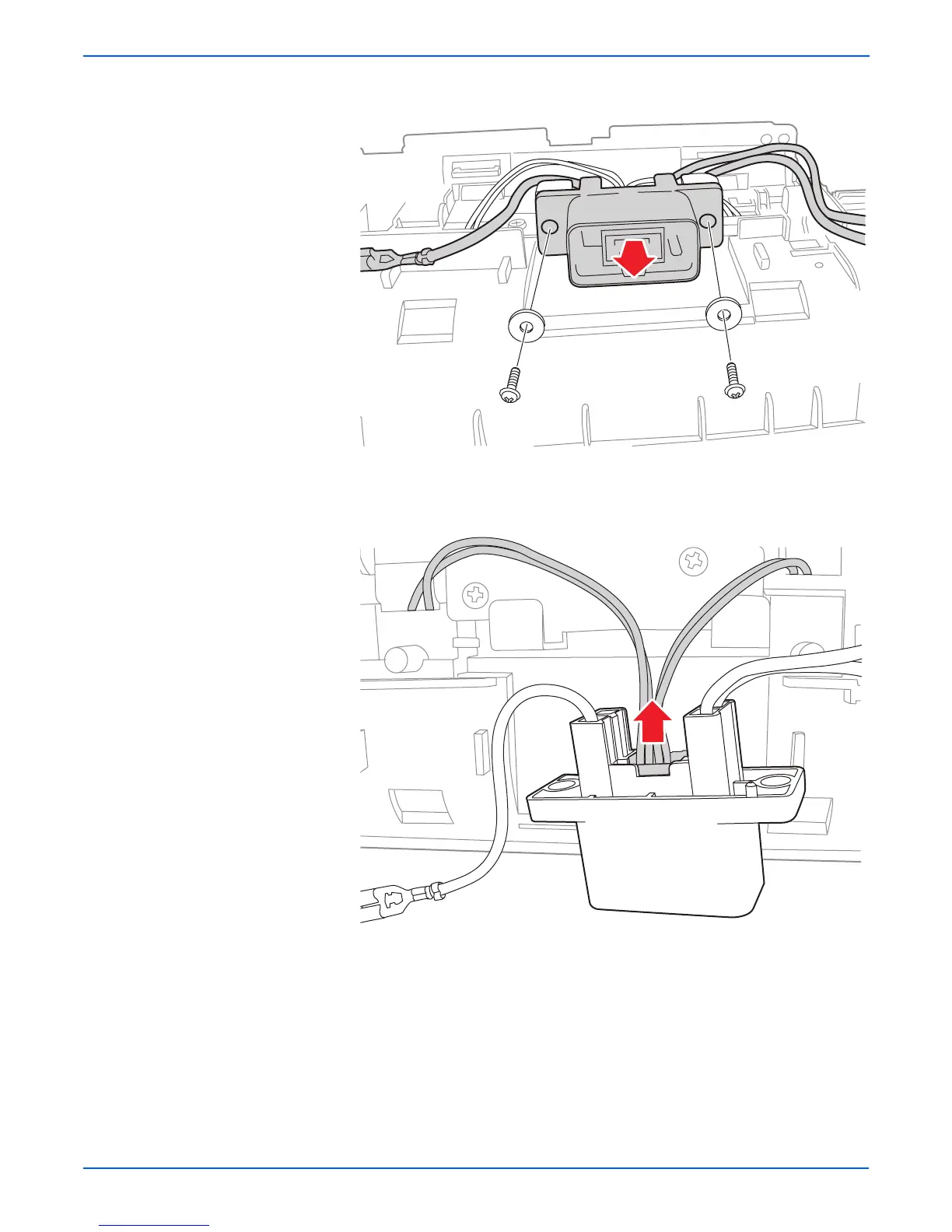

5. Remove two screws (8mm) securing the Fuser connector to the Fuser
Assembly.
6. Disconnect the center Thermistor plug from the Fuser Connector.
s3600-119
s3600-117
