Xerox Phaser 3600

Phaser 3600 Printer Service Manual 7-33
Service Parts Disassembly

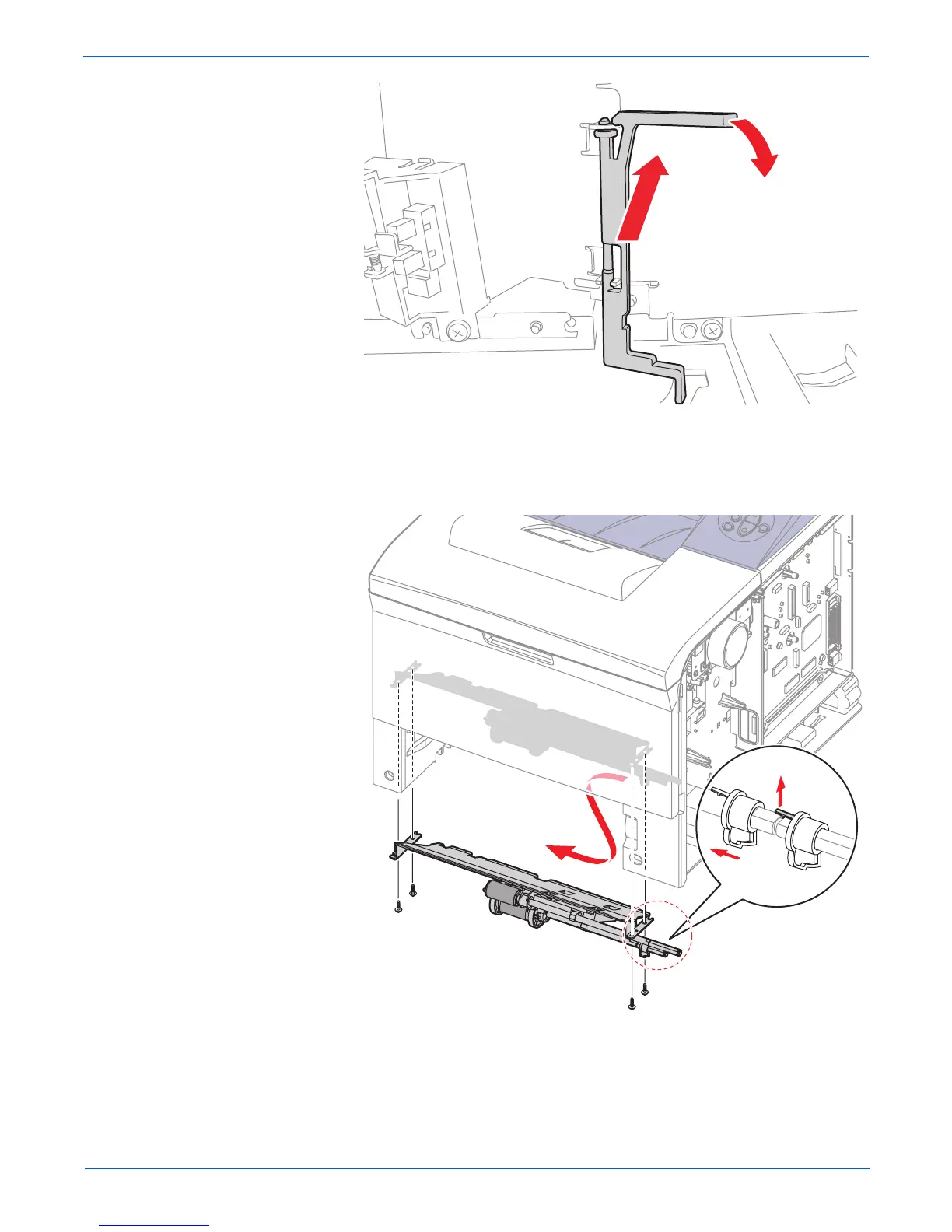

15. Release the plastic tab on the actuator that is mounted on the metal plate.
Once the screw is out just lift it free from the boss.
16. Remove the 4 screws securing the pick assembly and maneuver the pick
assembly out of the printer.
s3600-088
s3600-048
