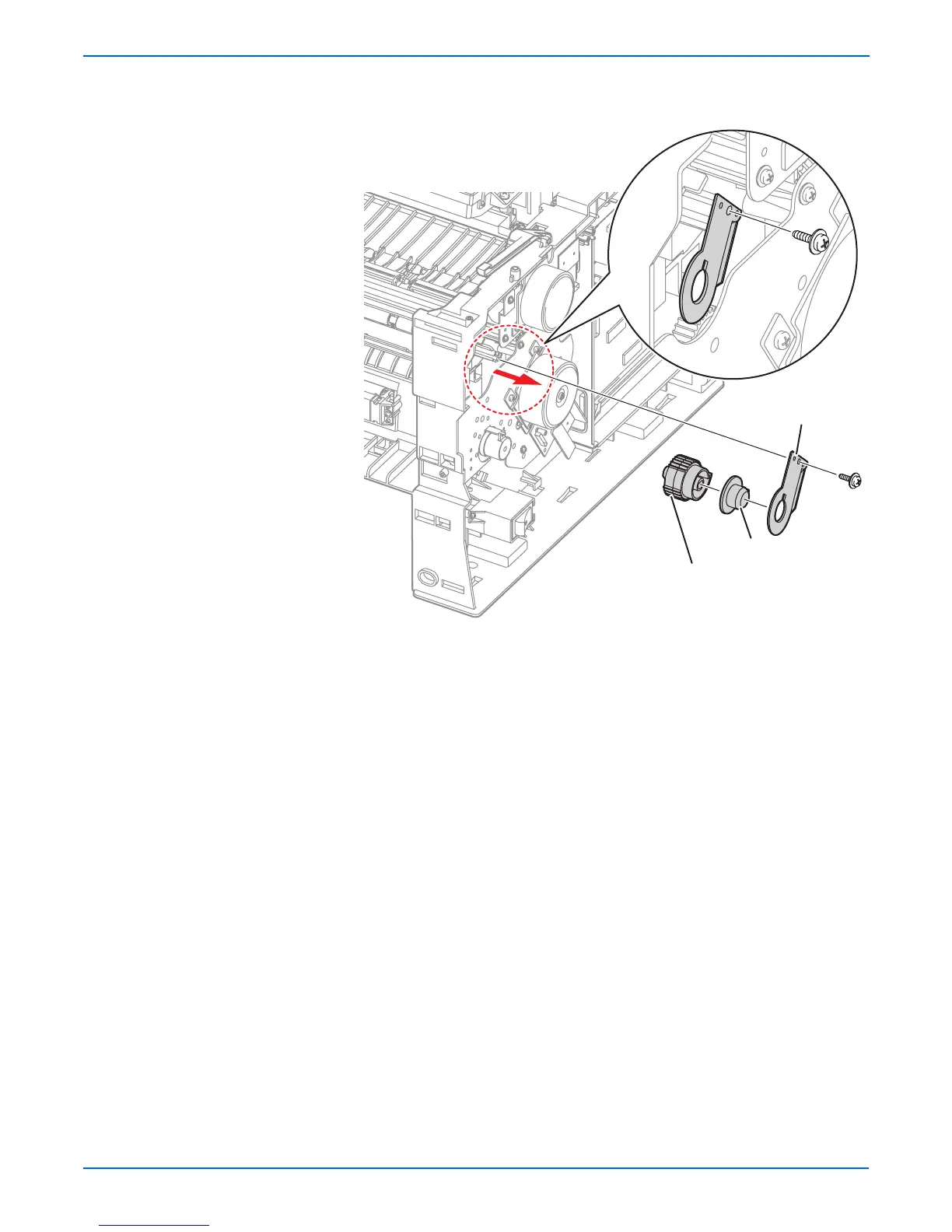

8. Remove 1 screw, on the right end of the shaft, securing the bracket,
remove the bracket with the bearing.
9. Remove the right side gear from the shaft.
Gear Assembly
Bearing
Bracket
s3600-041
