Xerox Phaser 6120 Service Manual

Disassembly/Assembly Procedures
Phaser® 6120 Color Laser Printer Service Manual
5-7
4. Remove Tray 1 (Paper Take-up Cover). See Tray 1 (Paper Take-Up Cover) on page 5-6.

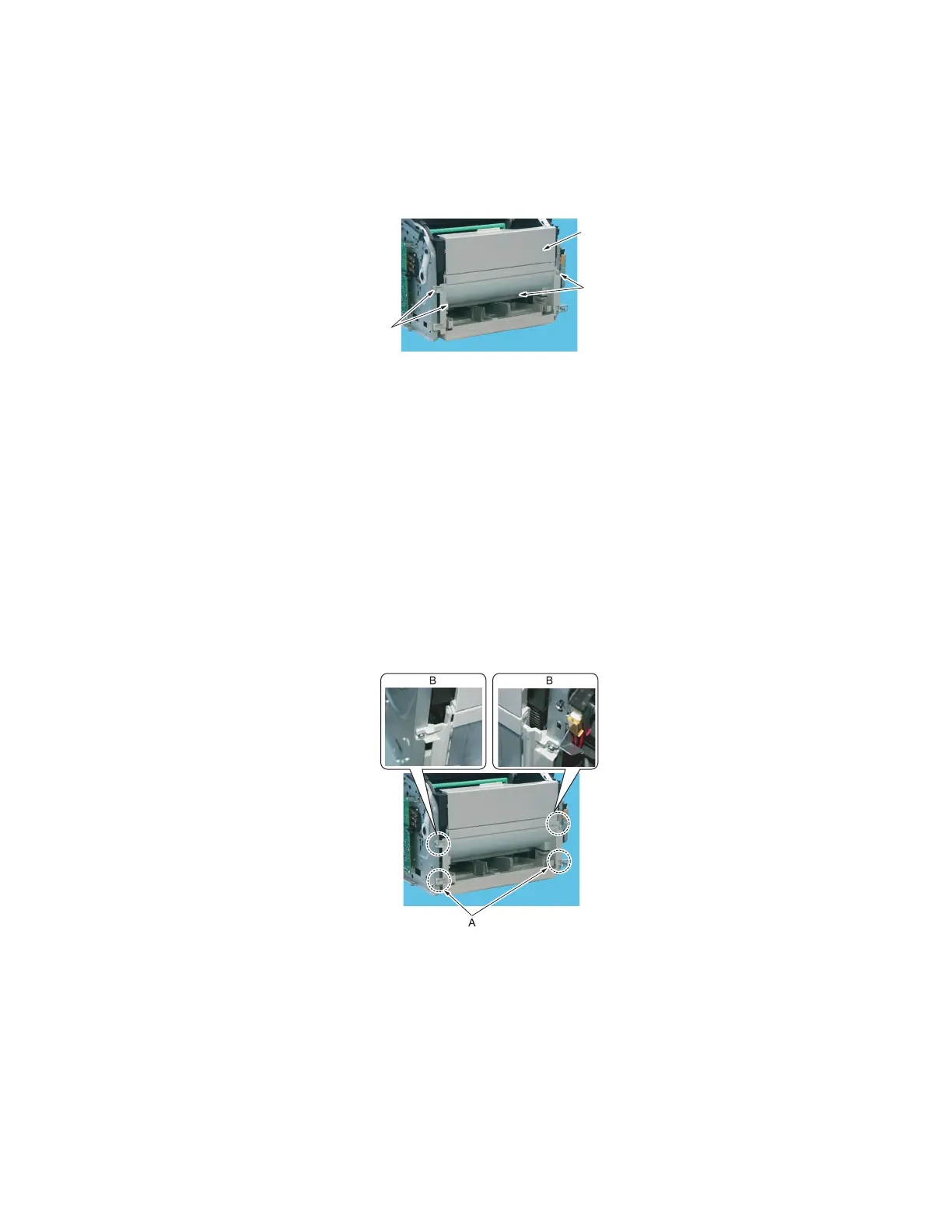

5. Remove four screws [1] and the Front Cover [2].
Caution: When removing and reinstalling the Front Cover, use care not to touch the
Developing Roller of the Toner Cartridge.
Precautions for Remounting the Front Cover
1. When remounting the Front Cover, make sure that the two tabs in [A] are properly fitted in
position.
2. When tightening the screws, make sure that there is no clearance between the machine
frame and Front Cover [B]. If there is any clearance, tighten the screws, while pressing the
machine frame.
[2]
[1]
[1]
4139fs2017c1
4139F2C513DA

Xerox Phaser 6120 Specifications

General

Color	Yes
Print technology	Laser
Time to first page (black, normal)	13 s
Time to first page (color, normal)	22 s
Print speed (black, normal quality, A4/US Letter)	20 ppm
Print speed (color, normal quality, A4/US Letter)	5 ppm
Internal memory	128 MB
Processor model	300 MHz, 32 bit RISC
Maximum print size	210 x 297 mm
Maximum ISO A-series paper size	A4
I/O ports	USB
Power requirements	200 – 240 VAC / 100 – 127 VAC 50/60 Hz
Networking features	Ethernet/Fast-Ethernet
Non-operating relative humidity (non-condensing)	10 - 85 %
Total input capacity	200 sheets
Maximum input capacity	500 sheets
Printer fonts	PostScript
Maximum duty cycle	35000 pages per month
Number of PostScript fonts	139
Power consumption (printing)	380 W
Storage temperature (T-T)	-20 - 40 °C
Operating temperature (T-T)	10 - 32 °C
Operating relative humidity (H-H)	10 - 80 %

Weight and Dimensions

Dimensions (WxDxH)	442 x 395 x 341 mm
