Xerox Phaser 6120 Service Manual

Adjustments
Phaser® 6120 Color Laser Printer Service Manual
3-2
Adjustments
How to Use the Adjustments Section
This section contains detailed information on the control panel, menus, and adjustment items
and procedures needed for this machine.
Description of the Control Panel
Control Panel Display
The control panel, located on the top of the printer, allows you to direct the printer’s operation.
In addition, it displays the current status of the printer, including any condition(s) that needs
user attention.

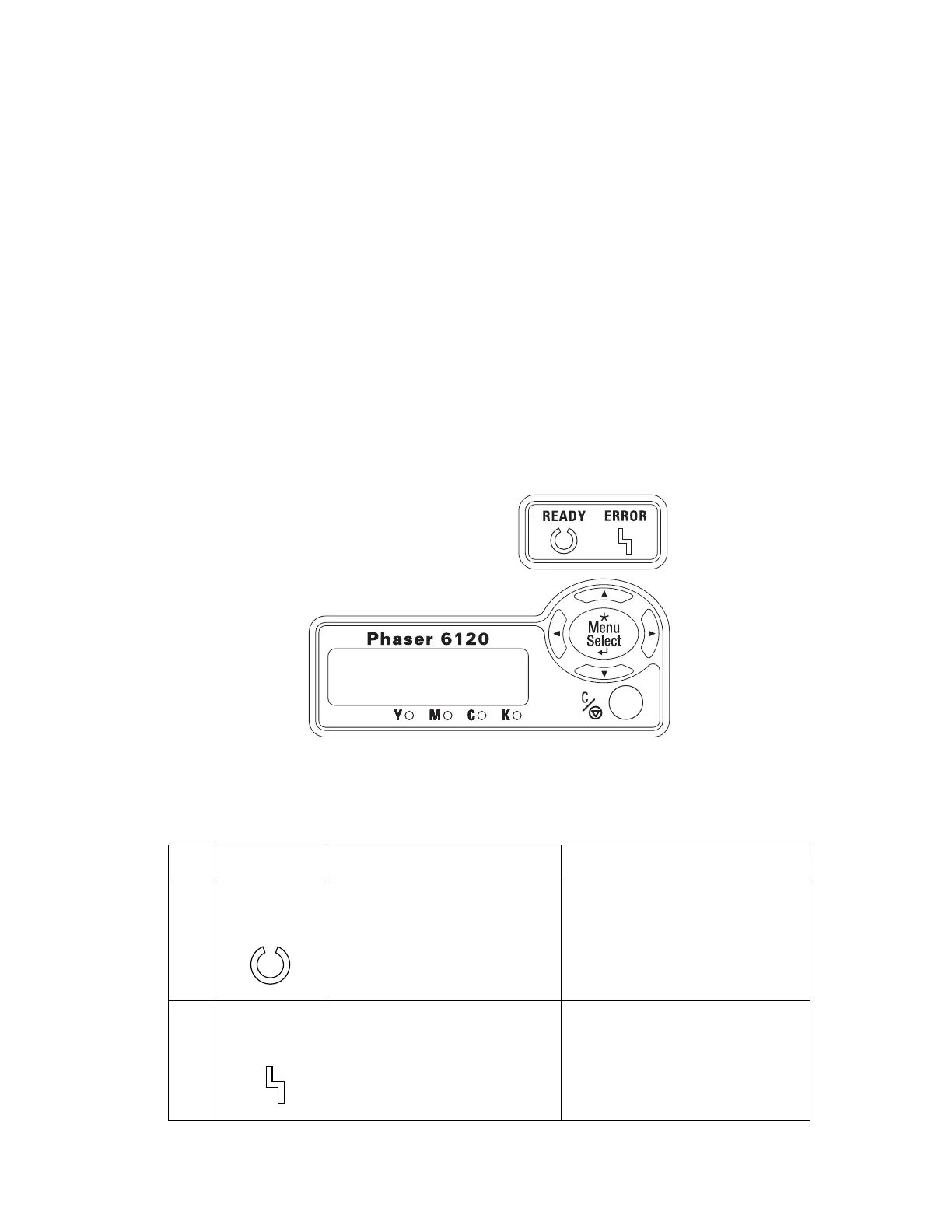

Control Panel Indicators and Keys
No. Indicator Off On
1 The printer is not ready to accept
data.
The printer is ready to accept data.
2 No problem. The printer requires operator
attention (usually accompanied by a
status message in the message
window).
Ready
Error
Error

Xerox Phaser 6120 Specifications

General

Color	Yes
Print technology	Laser
Time to first page (black, normal)	13 s
Time to first page (color, normal)	22 s
Print speed (black, normal quality, A4/US Letter)	20 ppm
Print speed (color, normal quality, A4/US Letter)	5 ppm
Internal memory	128 MB
Processor model	300 MHz, 32 bit RISC
Maximum print size	210 x 297 mm
Maximum ISO A-series paper size	A4
I/O ports	USB
Power requirements	200 – 240 VAC / 100 – 127 VAC 50/60 Hz
Networking features	Ethernet/Fast-Ethernet
Non-operating relative humidity (non-condensing)	10 - 85 %
Total input capacity	200 sheets
Maximum input capacity	500 sheets
Printer fonts	PostScript
Maximum duty cycle	35000 pages per month
Number of PostScript fonts	139
Power consumption (printing)	380 W
Storage temperature (T-T)	-20 - 40 °C
Operating temperature (T-T)	10 - 32 °C
Operating relative humidity (H-H)	10 - 80 %

Weight and Dimensions

Dimensions (WxDxH)	442 x 395 x 341 mm
