Xerox Phaser 6120

Maintenance
Phaser® 6120 Color Laser Printer Service Manual
8-3
Maintenance
Maintenance Parts

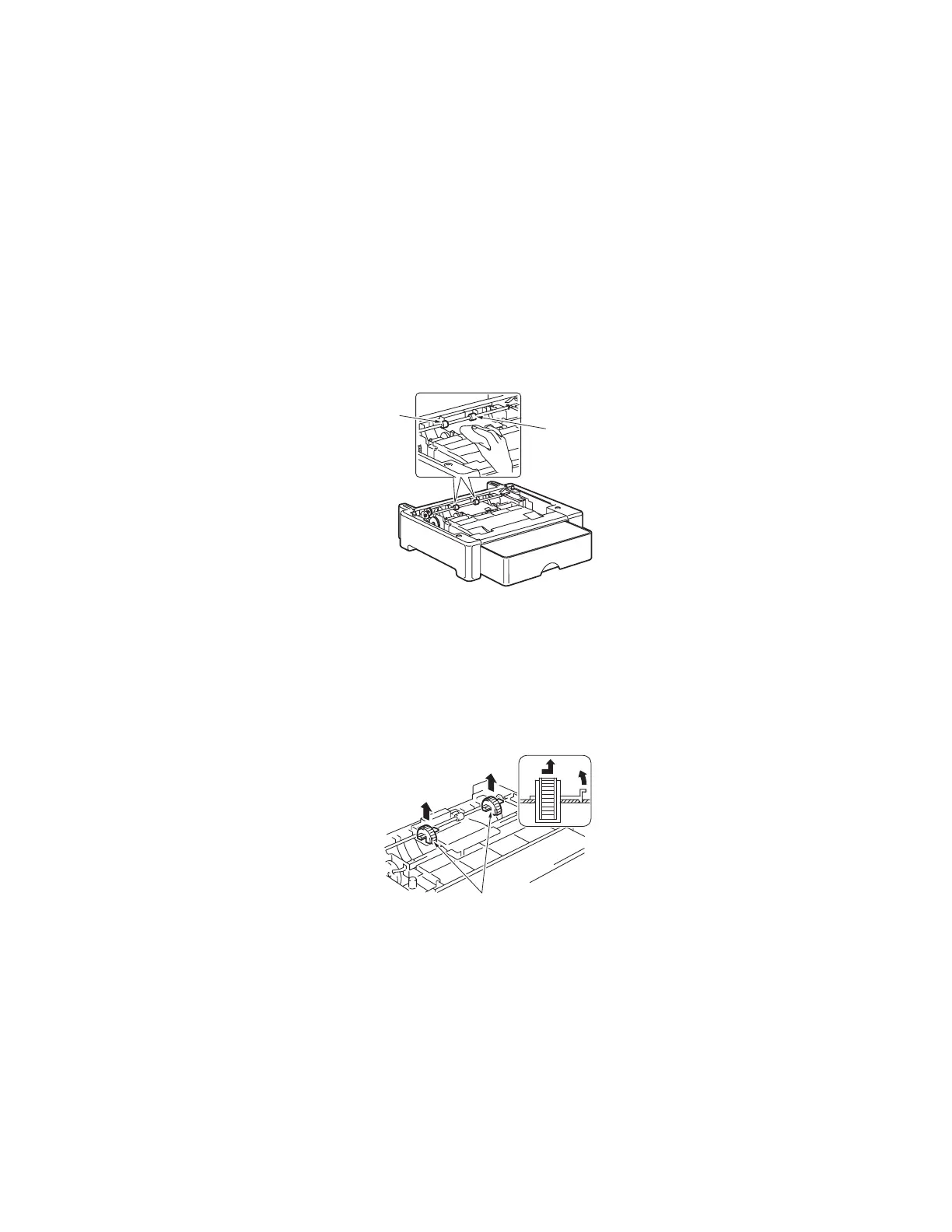

Pick-Up Roller
Cleaning Procedure
1. Remove the Lower Feeder Unit from the main unit.
2. Wipe the Pick-up Roller [1] clean of dirt using a soft cloth dampened with water.
Removal Procedure
1. Remove the Lower Feeder Unit from the main unit.
2. Remove two Pick-up Rollers [1].
[1]
[1]
4056fs2501c0
[1]
4056fs2502c0
