P3 Paper Cassette Section
Phaser® 6120 Color Laser Printer Service Manual
8-21
P3 Paper Cassette Section

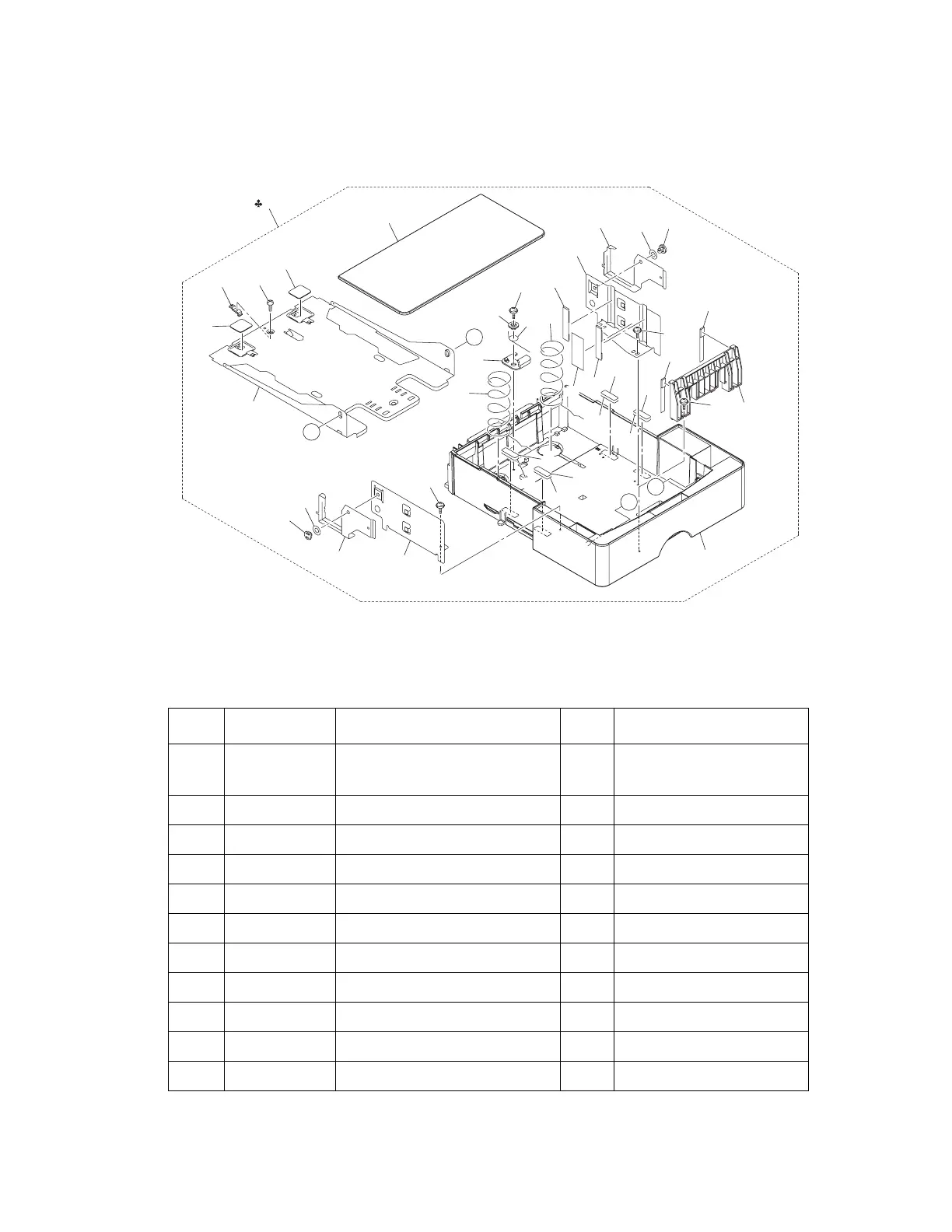

P3 Paper Cassette Section Parts List Table
Key Part No. Description Qty Comments
1 050E23380
050E23390
CASSETTE (A4)
CASSETTE (A3, Letter)
1
2 COVER 1
3 COLLAR 1
4CAM 1
5 TORSION SPRING 1
6 PRESSURE SPRING 2
7 CUSHION 2
8GUIDE 1
9 SEPARATOR 1
10 WASHER 2
11 PIN 2
P 3
A
B
A
B
a
20
21
20
2
1
9
10
8
7
19
b
4
6
5
3
6
c
c
11
14
14
14
14
14
14
12
12
13
16
7
14
14
15
c
10
11
17
18
