Xerox Phaser 6120

Service Parts Disassembly
Phaser® 6120 Color Laser Printer Service Manual
9-8

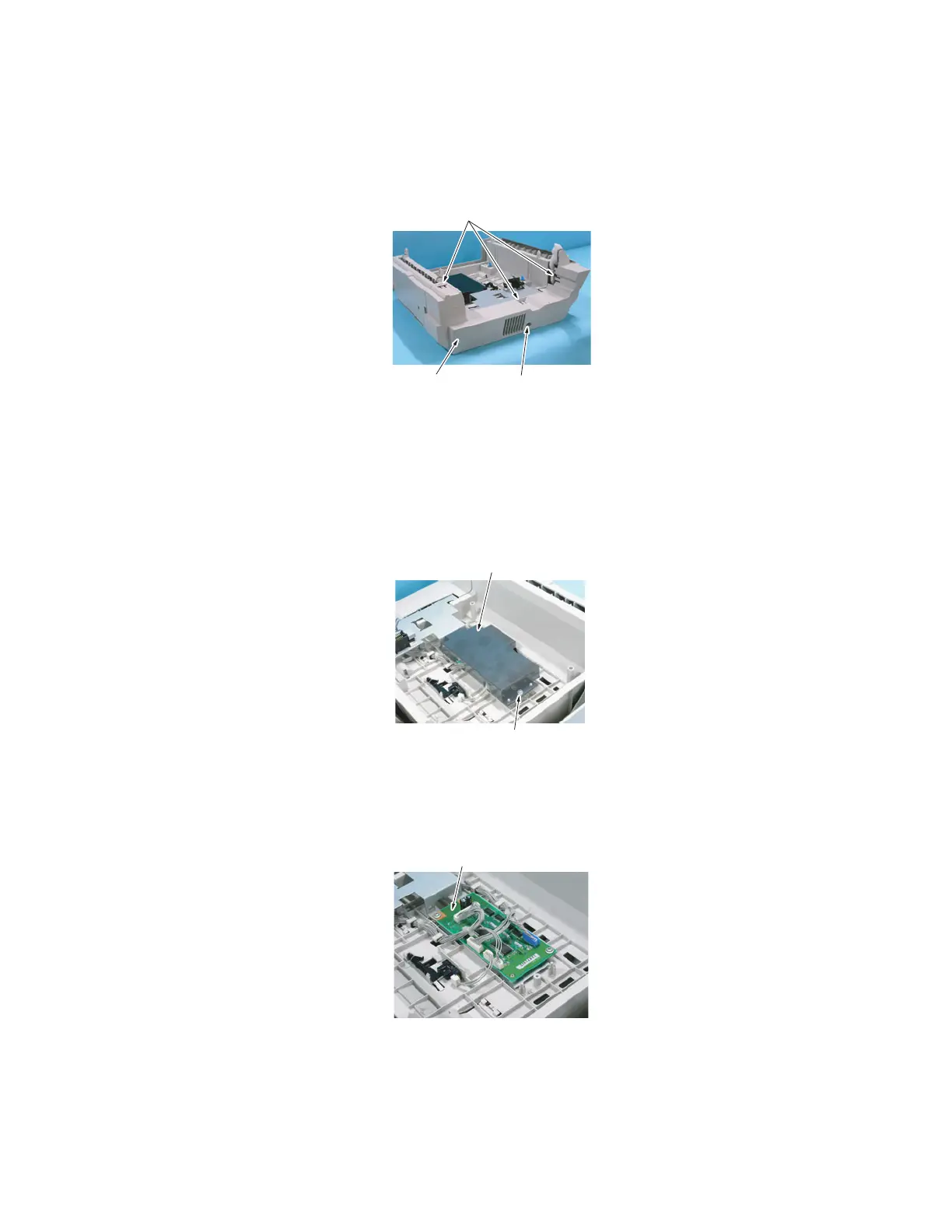

Right Cover
1. Remove one screw [1], unlock three tabs [2] and remove the Right Cover [3].
Duplex Board (PWB-A DU)
1. Remove the Right Cover. See Right Cover on page 9-8.
2. Remove one screw [1] and the Duplex Board Cover [2].
3. Disconnect all connectors from the Duplex Board [3].
[2]
[1][3]
4057fs2508c0
[1]
[2]
4057fs2509c0
[3]
4057fs2510c0
