Print Engine General Information
Phaser® 6120 Color Laser Printer Service Manual
1-3
Rear View with Options
Duplex unit

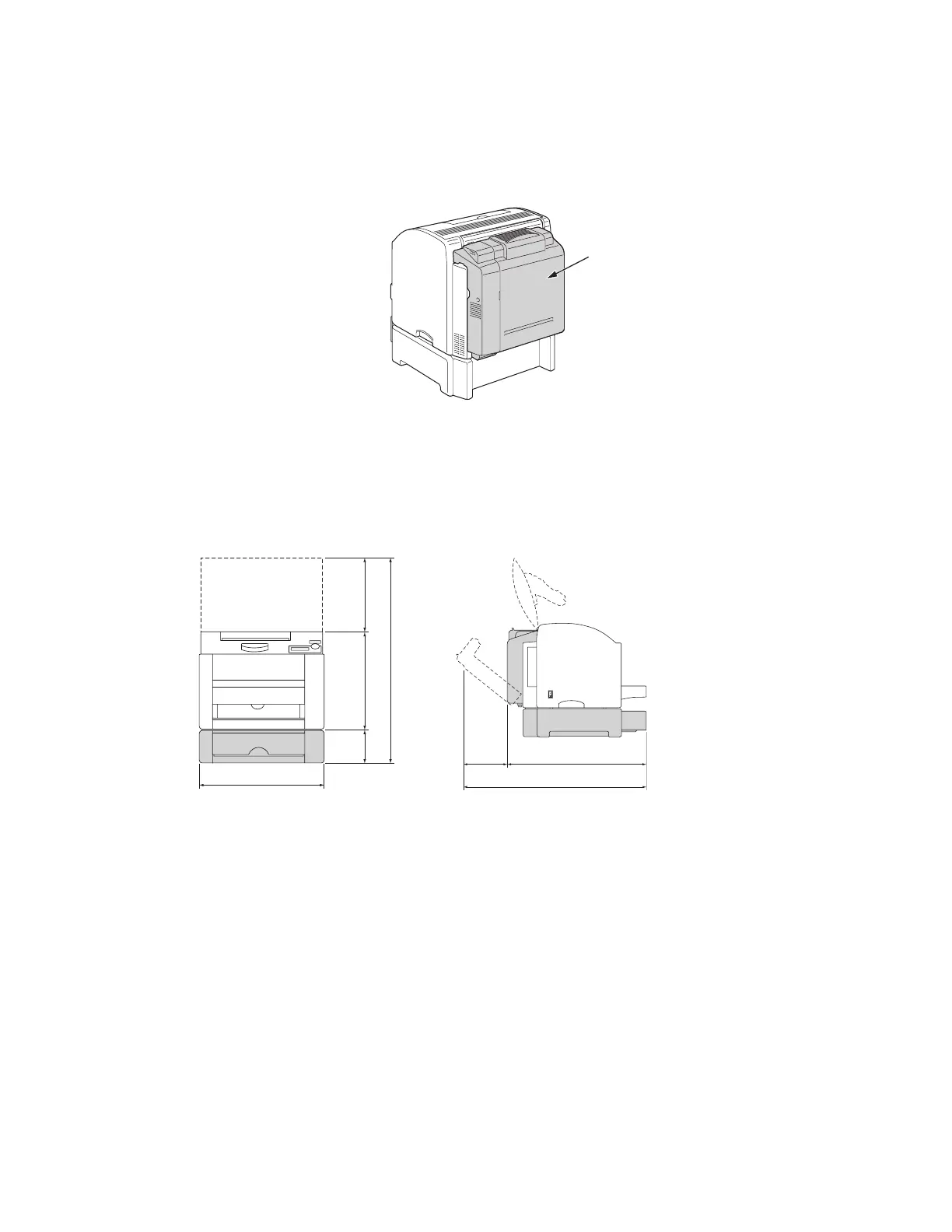

Space Requirements
To ensure easy operation, consumable replacement and maintenance, adhere to the
recommended space requirements detailed below.
Note: The options appear shaded in the above illustration.
771.0 mm (30.4")
560.8 mm (22.1")
210.2
mm
(8.3")
442 mm (17.4")
715.8 mm (28.2")
341 mm (13.4")
259 mm
(10.2")
115.8
mm
(4.6")
Side View
Front View
