Xerox Phaser 6120

Print Engine Parts List
Phaser® 6120 Color Laser Printer Service Manual
6-38

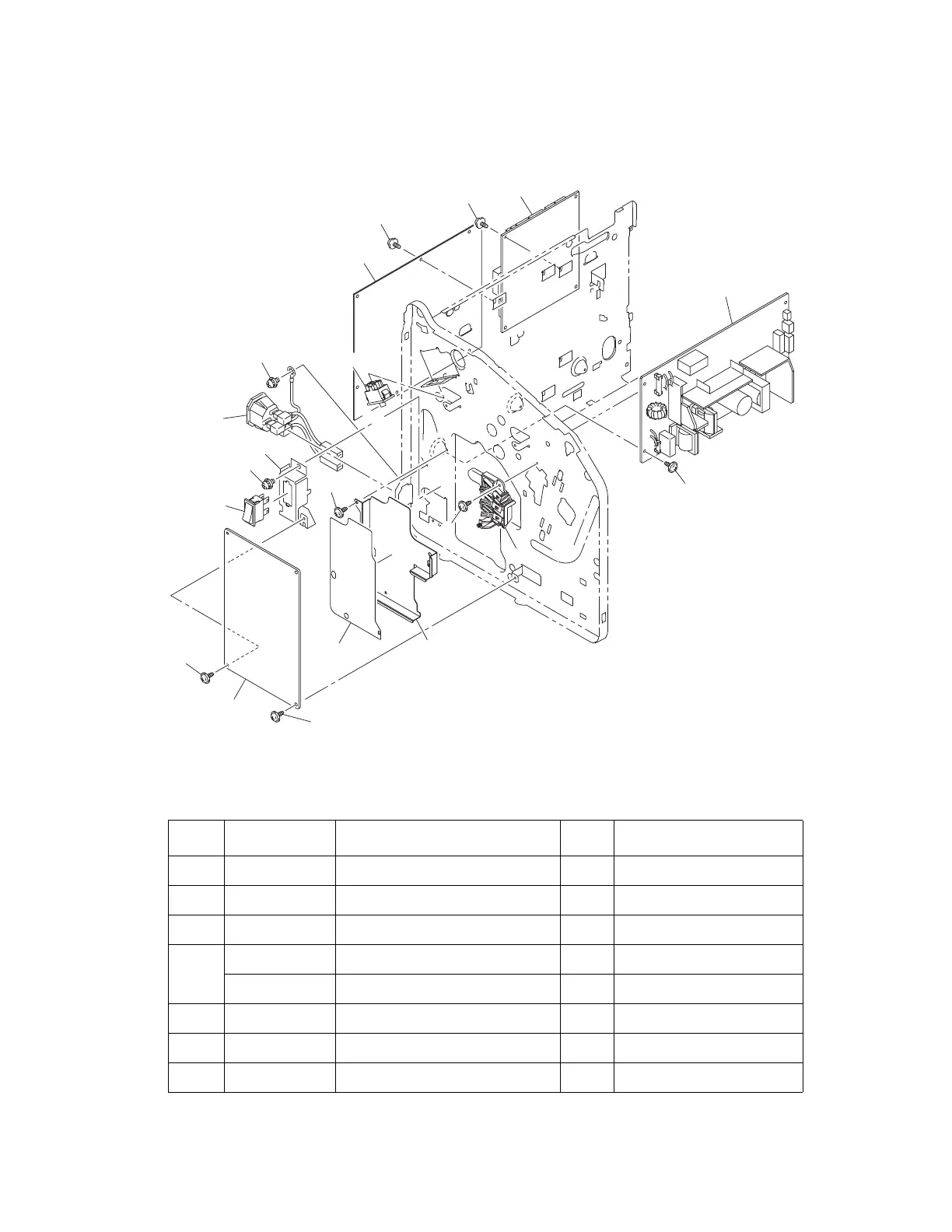

P17 Electrical Components
P17 Electrical Components Parts List Table
Key Part No. Description Qty Comments
1 960K25460 PWB-P (Image Processor) 1
2 960K25470 PWB-A (Engine Control Board) 1
3 962K49980 WIRE HARNESS ASSY 1
4 105E18500 POWER SUPPLY (100/120V) 1 Power Unit (PU)
105E18510 POWER SUPPLY (220/240V) 1 Power Unit (PU)
5 802K94020 RACK TERMINAL ASSY 1
6SHIELD 1
7SHIELD 1
P 17
HV
PWB-P
PWB-A
PU
S1
S3
a
a
a
a
a
b
b
a
1
11
7
6
5
8
10
3
9
4
a
2
