Xerox Phaser 6120

Parts Layout Drawing
Phaser® 6120 Color Laser Printer Service Manual
A-5

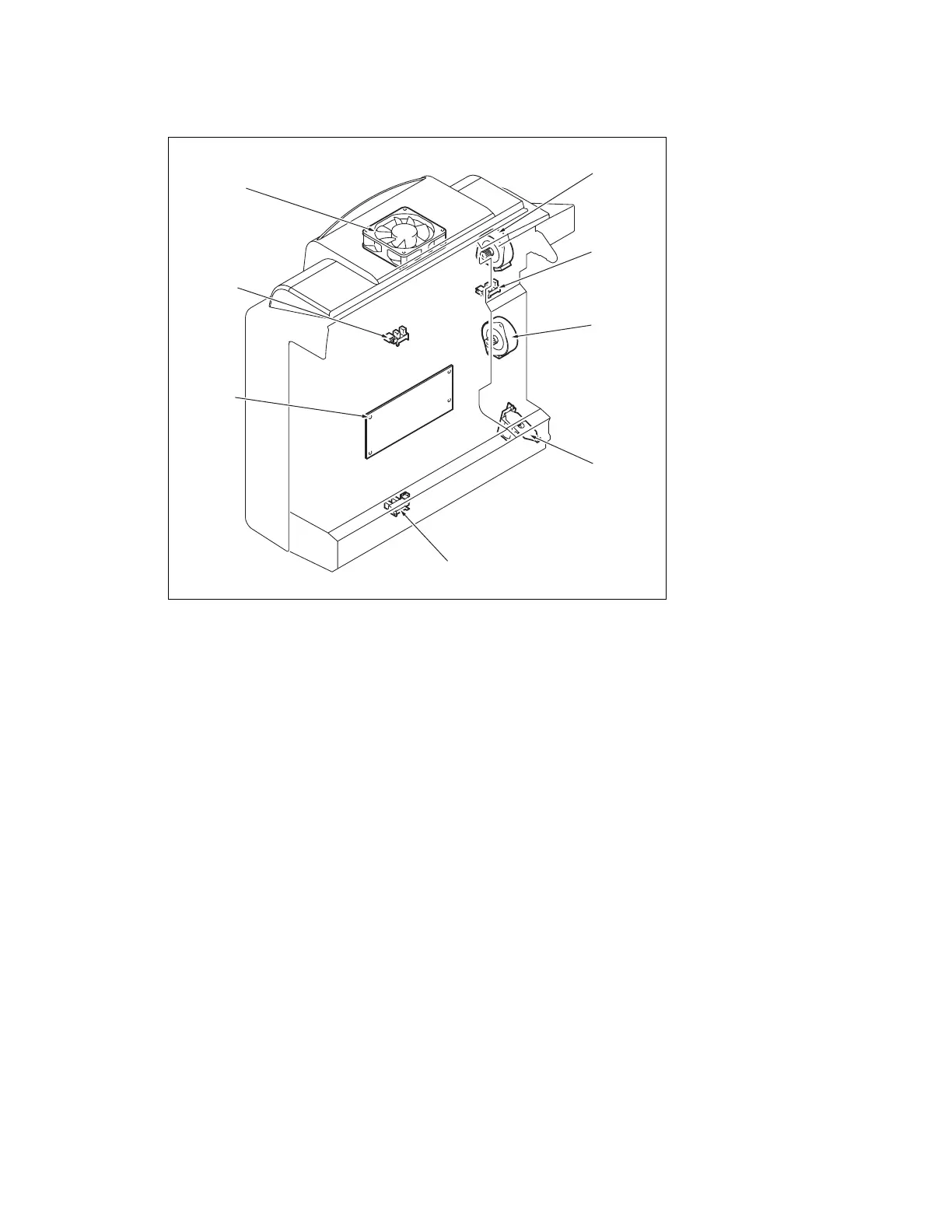

Duplex Unit (Option)
[1] Duplex Reverse Motor (M9 DU) [5] Duplex Paper Loop Sensor (PC10 DU)
[2] Duplex Door Sensor (PC11 DU) [6] Duplex Board (PWB-A DU)
[3] Duplex Transport Motor (M8 DU) [7] Duplex Transport Sensor (PC12 DU)
[4] Duplex Registration Solenoid (SL6 DU) [8] Duplex Cooling Fan Motor (M10 DU)
4057fs5501c0
[1]
[2]
[3]
[4]
[5]
[7]
[8]
[6]
