Xerox Phaser 6120 Service Manual

Print Engine Theory of Operation
Phaser® 6120 Color Laser Printer Service Manual
7-25

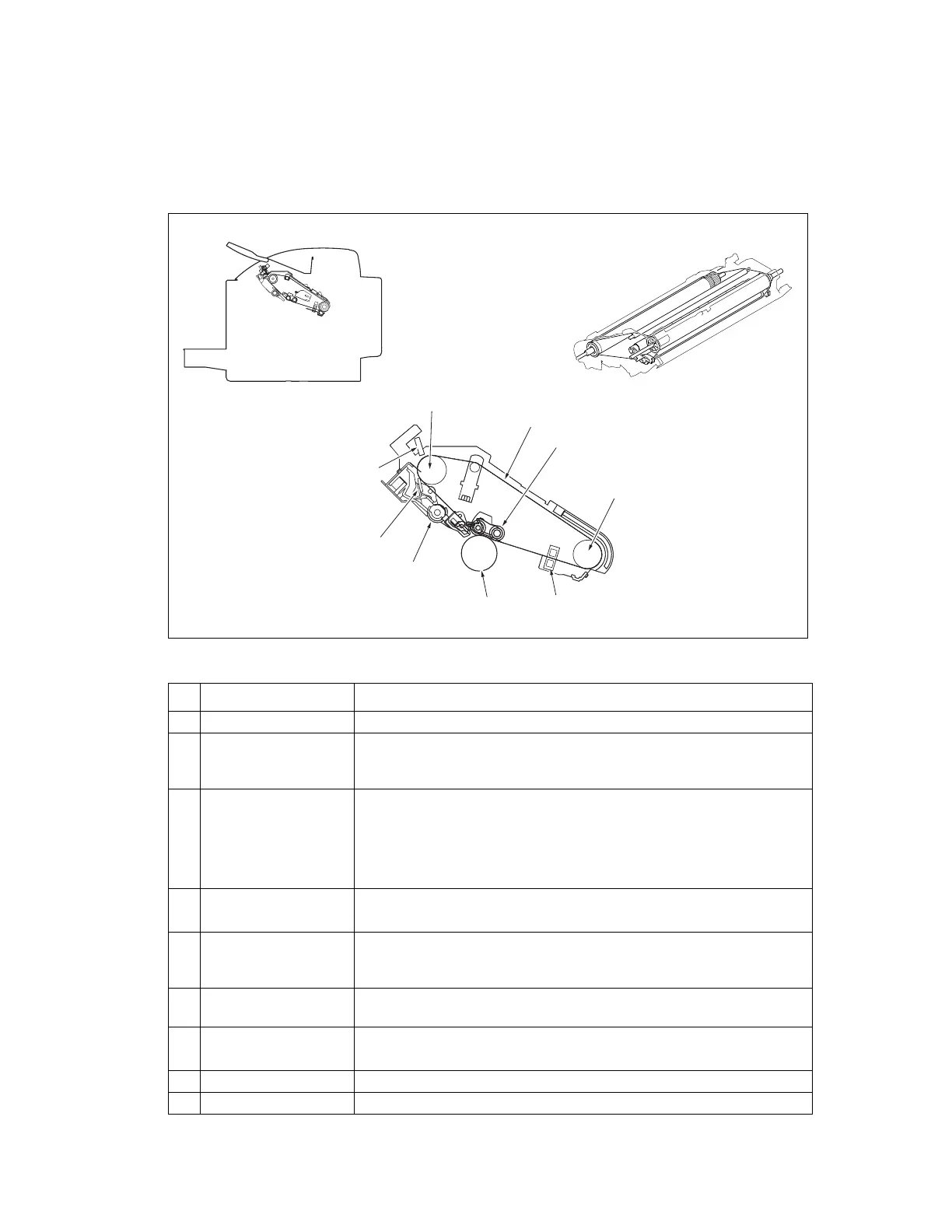

Image Transfer
1st Transfer
Key Name Function/System
[1] Driven Roller Rotated as driven by the Transfer Belt.
[2] Transfer Belt The image of each color of toner is transferred from the 1st Transfer
Roller to this Transfer Belt in the order of Y, M, C, and K, thereby forming
a full color toner image.
[3] 1st Transfer Roller Transfers the toner image from the Photo Conductor to the Transfer Belt
(1st transfer).
The 1st transfer voltage (T1) is applied.
No mechanism is provided for retracting and pressing the 1st Transfer
Roller.
[4] Transfer Belt Drive
Roller
Drives the Transfer Belt.
Driven by the Main Motor (M1).
[5] Belt Positioning
Sensor (PC4)
Detects the position of the Transfer Belt as the sensor is blocked/
unblocked by a hole for detecting the Transfer Belt position provided in the
Transfer Belt.
[6] Photo Conductor The drum surface on which an image of each color of toner is formed for
subsequent transfer of the image to the Transfer Belt.
[7] Toner Collecting
Screw (auger)
Conveys toner scraped off by the Cleaning Blade onto the Imaging Unit.
[8] Cleaning Blade Scrapes residual toner off the surface of the Transfer Belt.
[9] Density Sensor (AIDC) Detects the toner density on the Image Transfer Belt.
4139to1514c0
[2]
[3]
[4]
[5]
[1]
[6]
[7]
[8]
[9]
4139to2019c0
4139to1571c1

Xerox Phaser 6120 Specifications

General

Color	Yes
Print technology	Laser
Time to first page (black, normal)	13 s
Time to first page (color, normal)	22 s
Print speed (black, normal quality, A4/US Letter)	20 ppm
Print speed (color, normal quality, A4/US Letter)	5 ppm
Internal memory	128 MB
Processor model	300 MHz, 32 bit RISC
Maximum print size	210 x 297 mm
Maximum ISO A-series paper size	A4
I/O ports	USB
Power requirements	200 – 240 VAC / 100 – 127 VAC 50/60 Hz
Networking features	Ethernet/Fast-Ethernet
Non-operating relative humidity (non-condensing)	10 - 85 %
Total input capacity	200 sheets
Maximum input capacity	500 sheets
Printer fonts	PostScript
Maximum duty cycle	35000 pages per month
Number of PostScript fonts	139
Power consumption (printing)	380 W
Storage temperature (T-T)	-20 - 40 °C
Operating temperature (T-T)	10 - 32 °C
Operating relative humidity (H-H)	10 - 80 %

Weight and Dimensions

Dimensions (WxDxH)	442 x 395 x 341 mm
