Service Parts Disassembly
Phaser® 6120 Color Laser Printer Service Manual
8-9
Tray Set Detecting Switch (S4 PF)
1. Remove the Lower Feeder Paper Pick-up Unit, see Lower Feeder Paper Pick-Up Unit on
page 8-6.

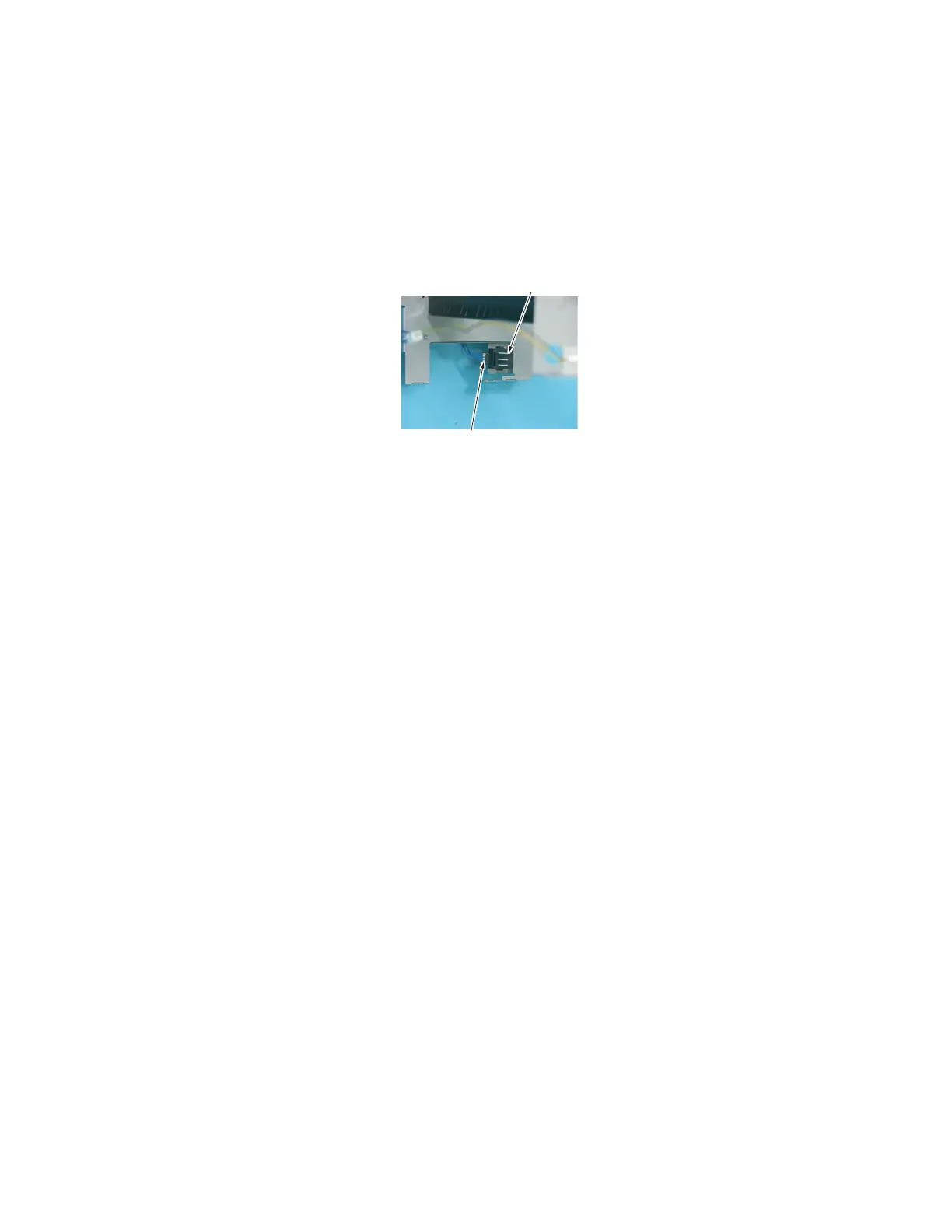

2. Unlock two tabs [1], disconnect one connector [2] and remove the Tray Set Detecting
Switch [3].
[2]
[1]
4056fs2007c0
To Next Page
