Xerox Phaser 6120

Print Engine Parts List
Phaser® 6120 Color Laser Printer Service Manual
6-16

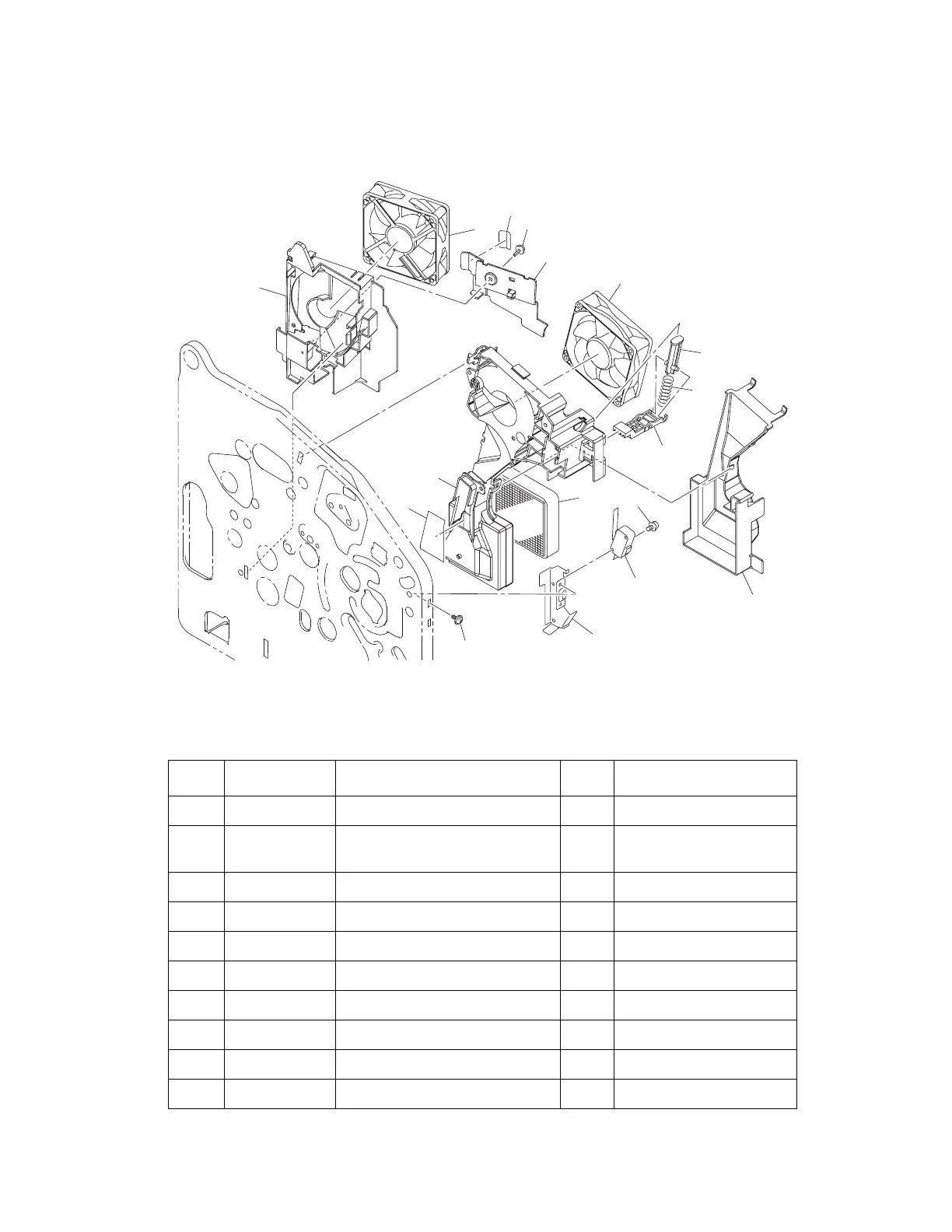

P6 Right Frame
P6 Right Frame Parts List Table
Key Part No. Description Qty Comments
1 DUCT 1
2 127E15240 POWER SUPPLY
COOLING (M4)
1
3 COVER 1
4 127E15250 VENTILATION FAN (M6) 1
5 LEVER 1
6 PRESSURE SPRING 1
7PAWL 1
8 DUCT 1
9 110K15620 SAFETY SWITCH (S2) 1
10 BRACKET 1
P 6
M6
S2
M4
a
3
13
2
4
5
8
9
10
6
11
12
14
7
1
b
c
