Xerox Phaser 6120

Print Engine Parts List
Phaser® 6120 Color Laser Printer Service Manual
6-8

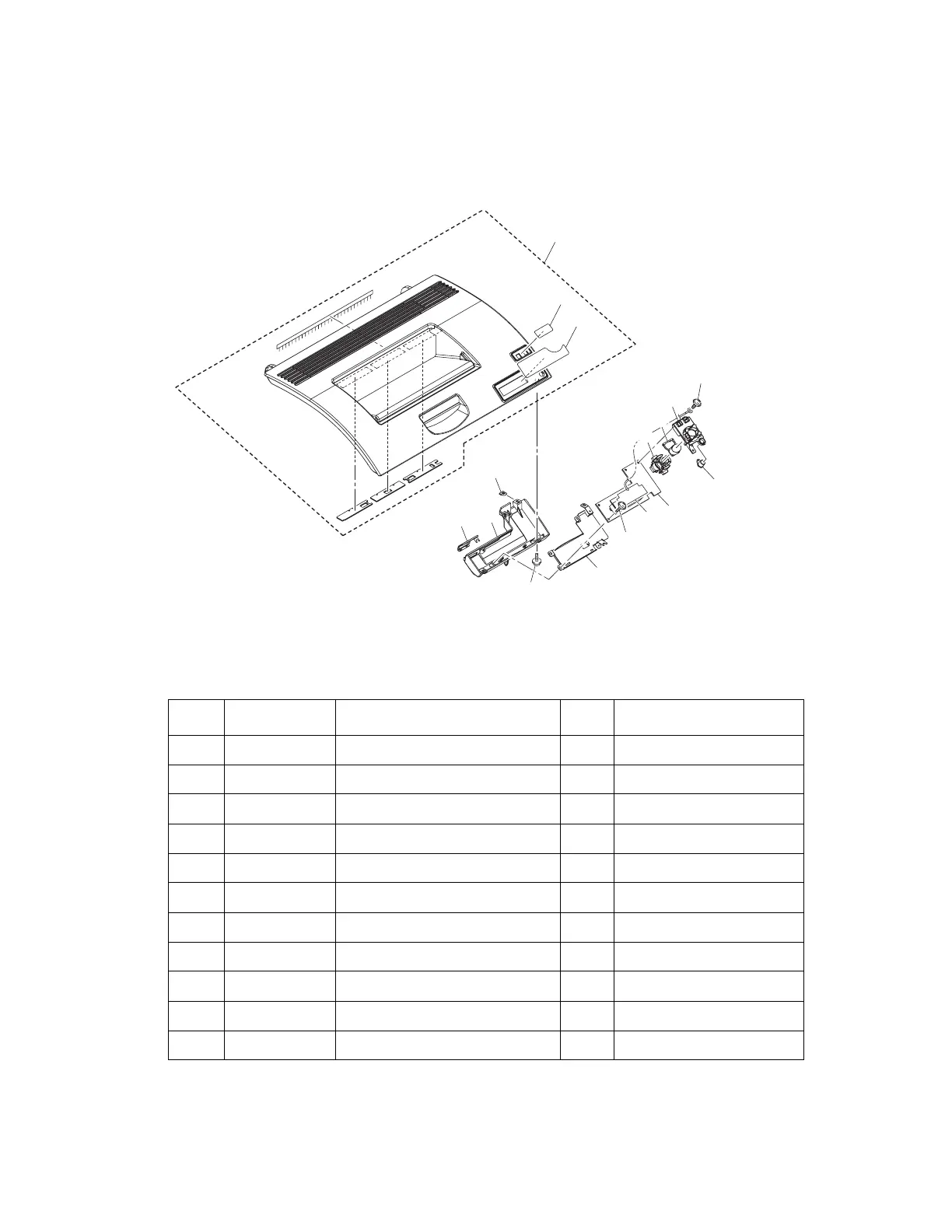

P2 Top Cover
P2 Top Cover Parts List Table
Key Part No. Description Qty Comments
1 FACE SHEET READY ERROR 1
2 FACE SHEET TONER 1
3HOLDER 1
4BUTTON 1
5BUTTON 1
6BUTTON 1
7 960K25480 PWB-OP (Control Panel) 1 Includes LCD
8SHIELD 1
9 EARTH GROUND 1
10 COVER 1
11 EARTH GROUND 1
P 2
PWB-OP
a
b
b
6
7
13
8
11
10
9
4
3
5
12
1
2
