Xerox Phaser 6120

Disassembly/Assembly Procedures
Phaser® 6120 Color Laser Printer Service Manual
5-12

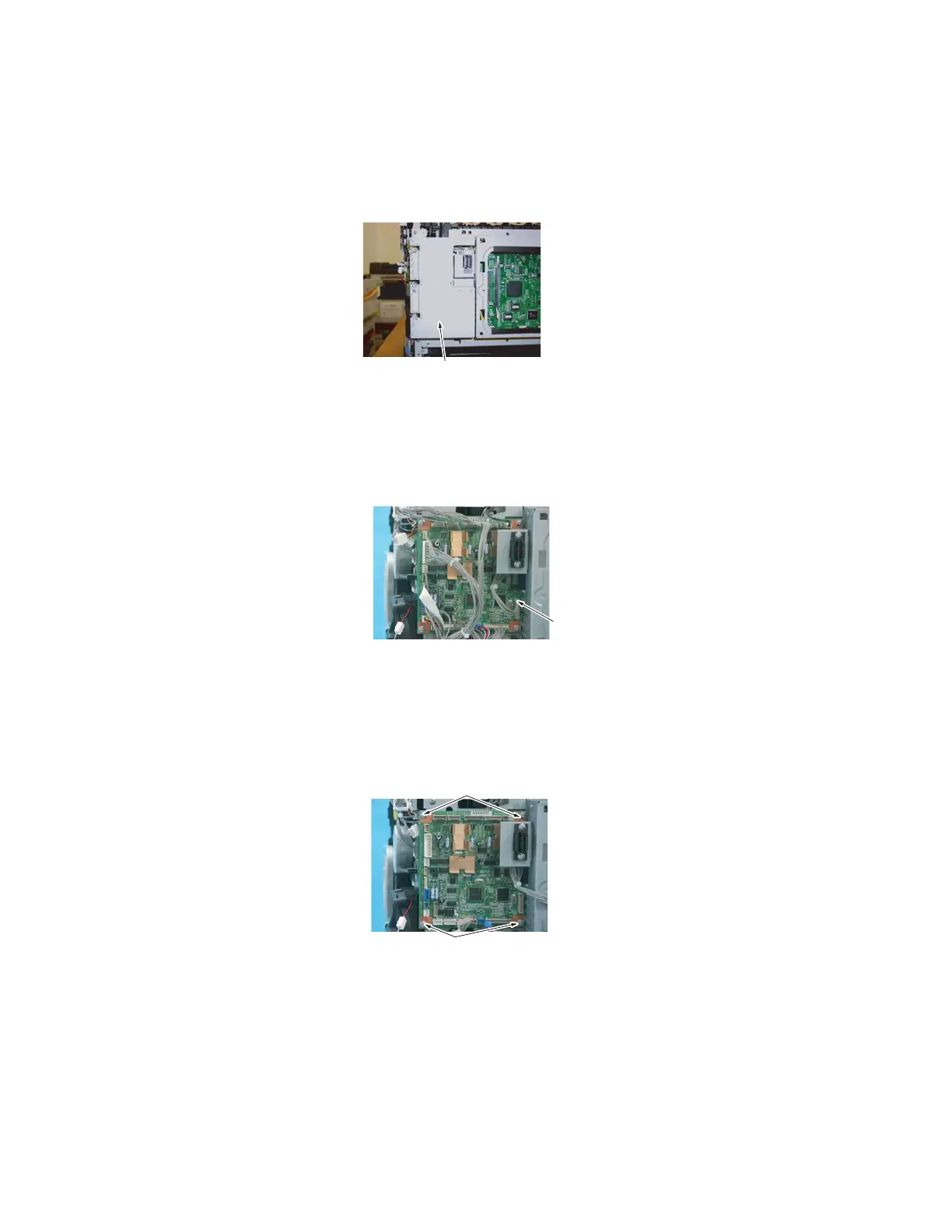

PWB-A (Engine Control Board)
1. Remove the Rear Cover. See Rear Cover on page 5-4.
2. Remove the screws securing the metal plate, and then remove the plate [1].
3. Disconnect all connectors and flat cables from the PWB-A (Engine Control Board) [1].
4. Remove four screws [2].
5. Slide the PWB-A (Engine Control Board) [4] to left to disconnect it from the PWB-P
(Image Processor Board).
shield_pla
te
[1]
[1]
4139fs2018c0
[2]
[2]
4139fs2019c0
