Xerox Phaser 6120

Timing Chart
Phaser® 6120 Color Laser Printer Service Manual
A-7

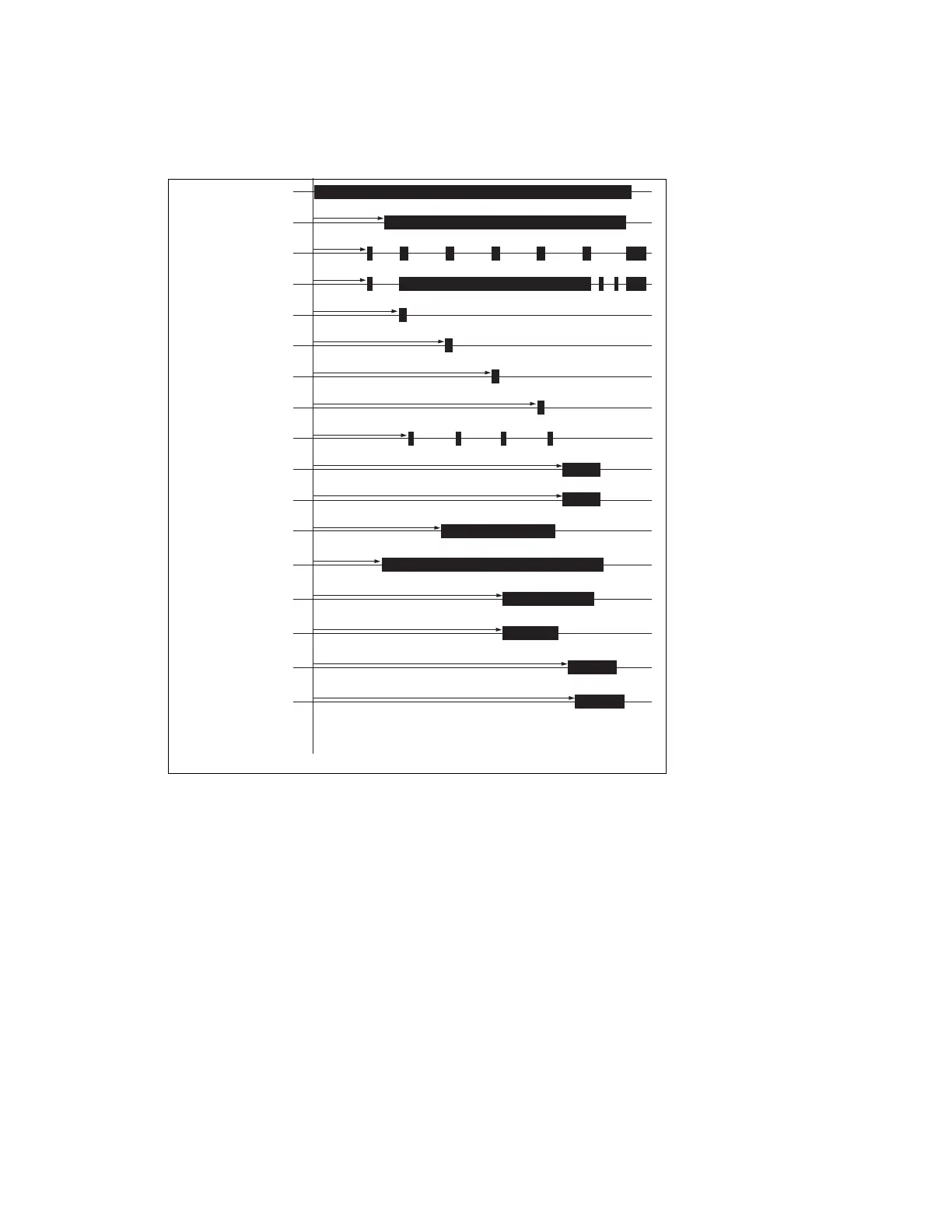

Timing Chart
Main Motor (M1)
Fusing Motor (M7)
Rack Motor (M2)
Developing
Motor (M3)
Developing Bias/Y
Developing Bias/M
Developing Bias/C
Developing Bias/K
TOD
2nd Image
Transfer Bias
2nd Image Transfer
Pressure/Retraction
Transfer Belt
Cleaner Retraction
1st Image
Transfer Bias
Registration
Roller Sensor (PC1)
Registration
Roller Solenoid (SL2)
Fusing Paper Loop
Sensor (PC8)
Exit Sensor (PC7)
