Xerox Phaser 6120

Print Engine Parts List
Phaser® 6120 Color Laser Printer Service Manual
6-24

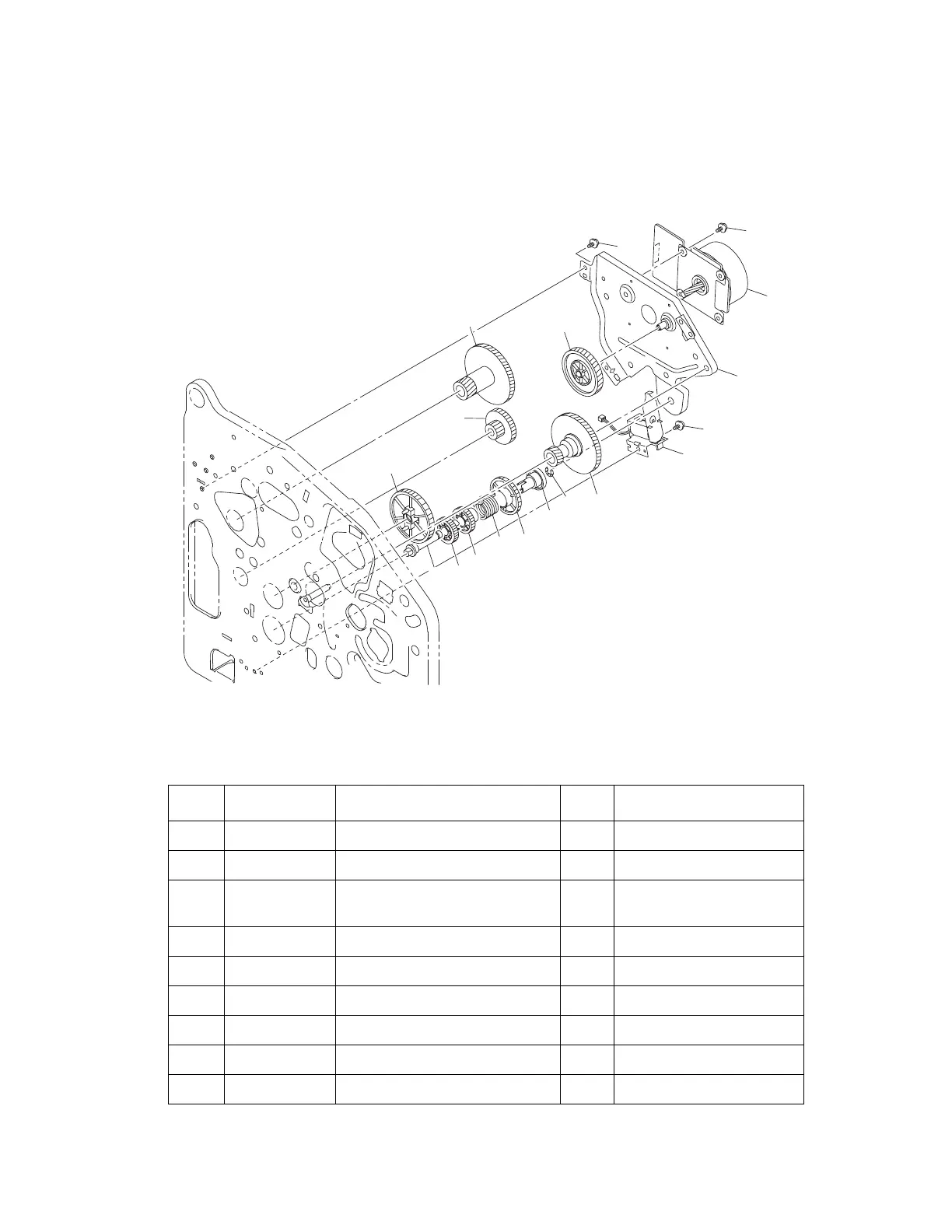

P10 Drive Section
P10 Drive Section Parts List Table
Key Part No. Description Qty Comments
1 127E15270 MAIN MOTOR (M1) 1
2 BRACKET ASSY 1
3 121E20270 REGISTRATION ROLLER
SOLENOID (SL2)
1
4 GEAR 20/117T 1
5DRUM 1
6 RATCHET 1
7 TORSION SPRING 1
8 GEAR 24T 1
9 GEAR 24T 1
