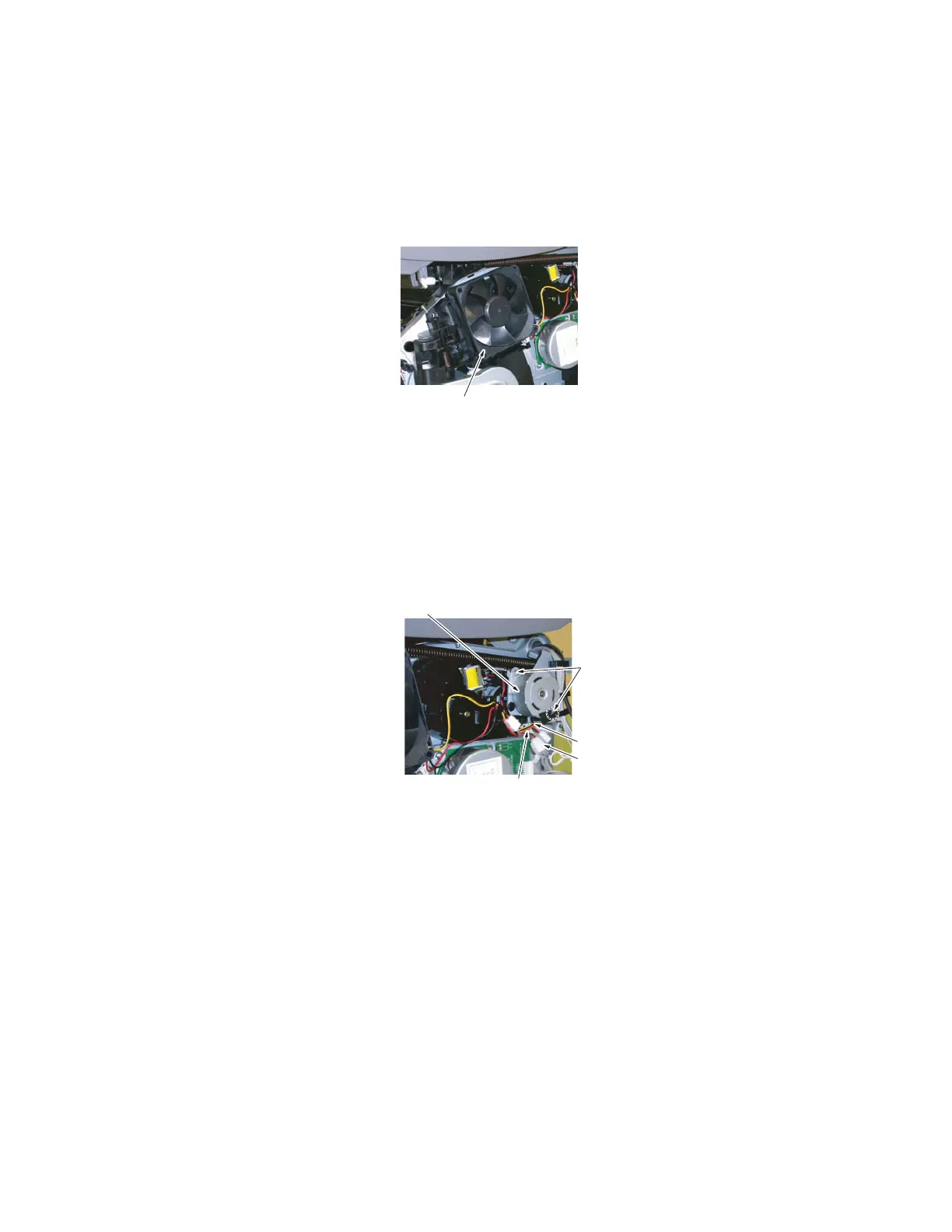

3. Unlock tabs and remove the Ventilation Fan Motor [4].
Note: Notice the position of the fan for reassembly.
Fusing Motor (M7)
1. Remove the Right Cover. See Right Cover on page 5-6.
2. Remove two screws [1] and the connector [2].
3. Remove the harness [3] from the wiring saddle [4] and then remove the Fusing Motor [5].
[4]
4139fs2042c1
[2]
[3]
[4]
[5]
[1]
4139fs2043c1
