Xerox Phaser 6120 Service Manual

Print Engine Parts List
Phaser® 6120 Color Laser Printer Service Manual
6-6

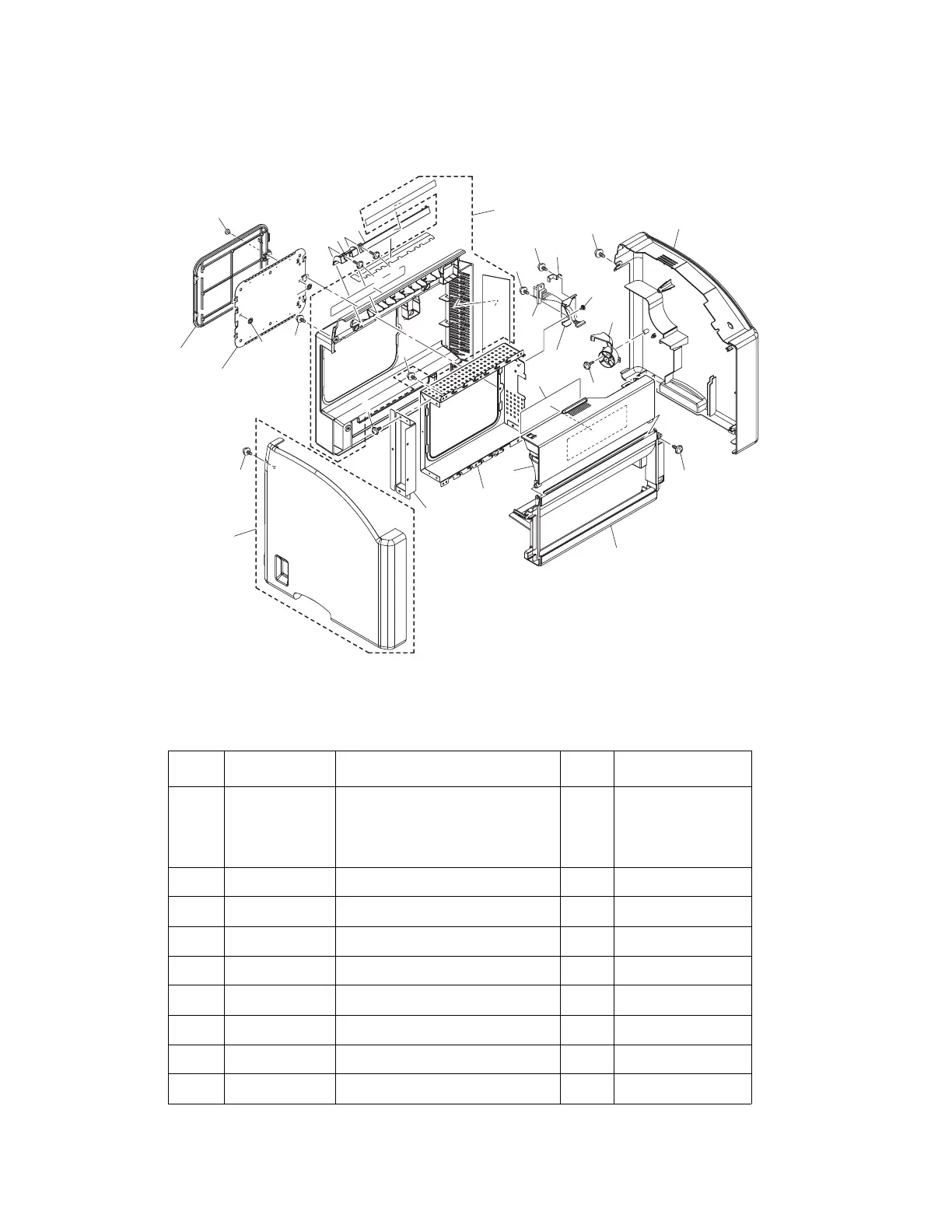

P1 External Parts
P1 External Parts List Table
Key Part No. Description Qty Comments
1 604K35100 REAR COVER KIT 1 Includes all parts
shown within the
dotted line. Some
assembly required
2 REGULATING PLATE 1
3 802E99590 RIGHT COVER 1
4 DUCT 1
5 SHOULDER SCREW 1
6 WIRE HARNESS ASSY 1
7BRACKET1
8 893E86110 INSTRUCTIONS (LABEL) 1
9HOLDER 1
P 1
a
c
a
c
a
a
a
b
c
b
18
19
9
8
2
1
6
3
5
4
7
15
11
12
13
16
15
17
14
10
b

Xerox Phaser 6120 Specifications

General

Color	Yes
Print technology	Laser
Time to first page (black, normal)	13 s
Time to first page (color, normal)	22 s
Print speed (black, normal quality, A4/US Letter)	20 ppm
Print speed (color, normal quality, A4/US Letter)	5 ppm
Internal memory	128 MB
Processor model	300 MHz, 32 bit RISC
Maximum print size	210 x 297 mm
Maximum ISO A-series paper size	A4
I/O ports	USB
Power requirements	200 – 240 VAC / 100 – 127 VAC 50/60 Hz
Networking features	Ethernet/Fast-Ethernet
Non-operating relative humidity (non-condensing)	10 - 85 %
Total input capacity	200 sheets
Maximum input capacity	500 sheets
Printer fonts	PostScript
Maximum duty cycle	35000 pages per month
Number of PostScript fonts	139
Power consumption (printing)	380 W
Storage temperature (T-T)	-20 - 40 °C
Operating temperature (T-T)	10 - 32 °C
Operating relative humidity (H-H)	10 - 80 %

Weight and Dimensions

Dimensions (WxDxH)	442 x 395 x 341 mm
