Xerox Phaser 6120 - Appendix; Parts Layout Drawing; Main Unit

Phaser® 6120 Color Laser Printer Service Manual
A-1

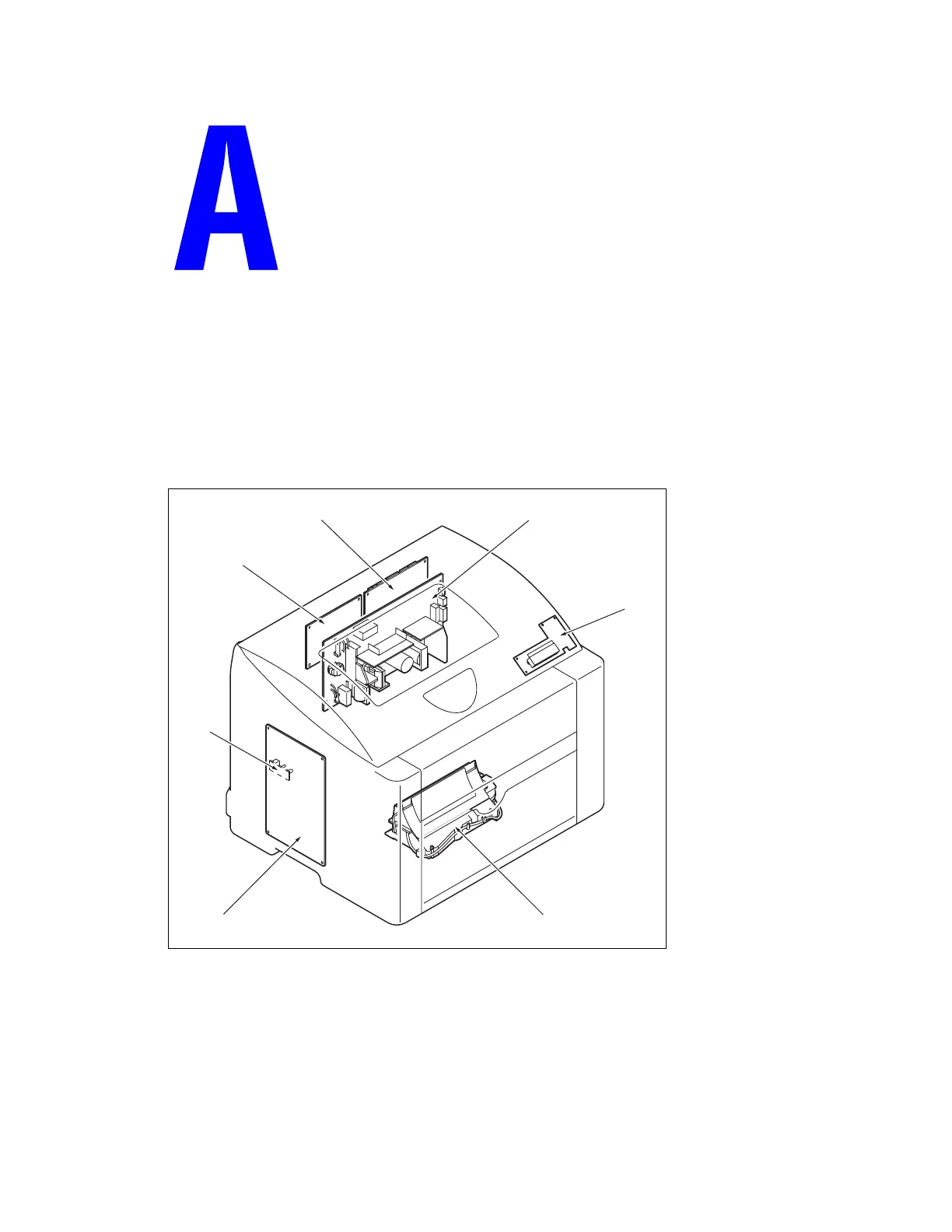

Parts Layout Drawing
Main Unit
Appendix
[1] LVPS (PU) [5] Waste Toner Near Full Detection Board (PWB-C)
[2] Control Panel (PWB-OP) [6] PWB-P (Image Processor Board)
[3] Laser (PH) Unit [7] PWB-A (Engine Control Board)
[4] High Voltage Unit (HV)
4139fs5507c0
[1]
[2]
[3]
[7]
[6]
[5]
[4]
