Xerox Phaser 6120 Service Manual

Print Engine Parts List
Phaser® 6120 Color Laser Printer Service Manual
6-41

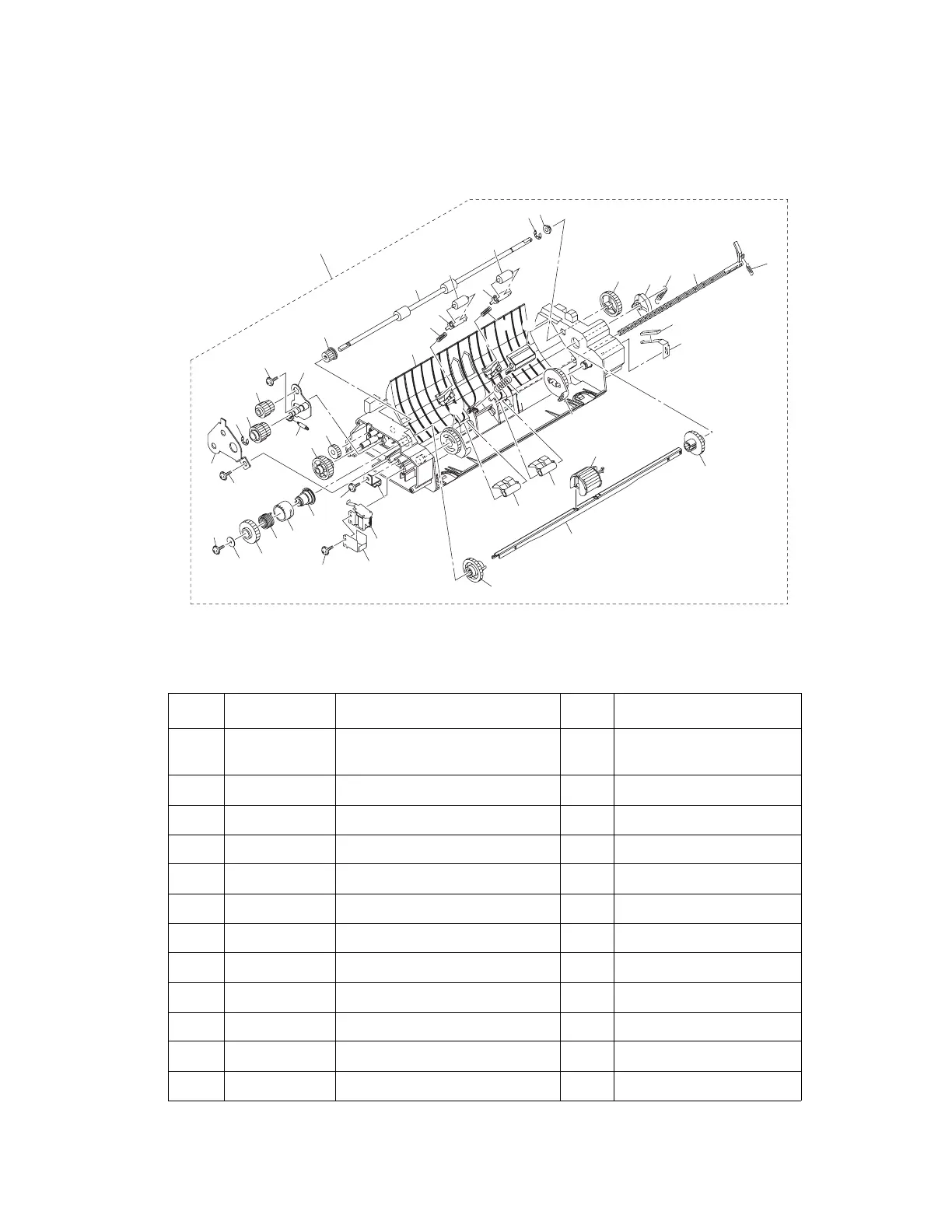

P19 Paper Take-Up Section 2
P19 Paper Take-Up Section 2 Parts List Table
Key Part No. Description Qty Comments
1 130K74270 PAPER TAKE-UP ASSY 1 Includes all parts shown
with the dotted lines.
2 ROLLER 1
3GUIDE 1
4 PRESSURE SPRING 2
5HOLDER 2
6ROLL 2
7 BUSHING 1
8 019K13070 FRICTION SHEET ASSY 1 Does not include spring.
9 GEAR 28T 1
10 CAM 1
11 TENSION SPRING 1
12 LEVER 1
P 19
SL1
1
6
3
12
39
8
19
19
13
5
4
6
5
4
a
b
b
b
b
c
2
33
32
31
30
35
25
26
27
28
24
23
22
38
17
20
16
21
29
34
37
36
7
11
14
15
10
9
18
a

Xerox Phaser 6120 Specifications

General

Color	Yes
Print technology	Laser
Time to first page (black, normal)	13 s
Time to first page (color, normal)	22 s
Print speed (black, normal quality, A4/US Letter)	20 ppm
Print speed (color, normal quality, A4/US Letter)	5 ppm
Internal memory	128 MB
Processor model	300 MHz, 32 bit RISC
Maximum print size	210 x 297 mm
Maximum ISO A-series paper size	A4
I/O ports	USB
Power requirements	200 – 240 VAC / 100 – 127 VAC 50/60 Hz
Networking features	Ethernet/Fast-Ethernet
Non-operating relative humidity (non-condensing)	10 - 85 %
Total input capacity	200 sheets
Maximum input capacity	500 sheets
Printer fonts	PostScript
Maximum duty cycle	35000 pages per month
Number of PostScript fonts	139
Power consumption (printing)	380 W
Storage temperature (T-T)	-20 - 40 °C
Operating temperature (T-T)	10 - 32 °C
Operating relative humidity (H-H)	10 - 80 %

Weight and Dimensions

Dimensions (WxDxH)	442 x 395 x 341 mm
