Xerox Phaser 6120 Service Manual

Theory of Operation
Phaser® 6120 Color Laser Printer Service Manual
9-20
Theory of Operation

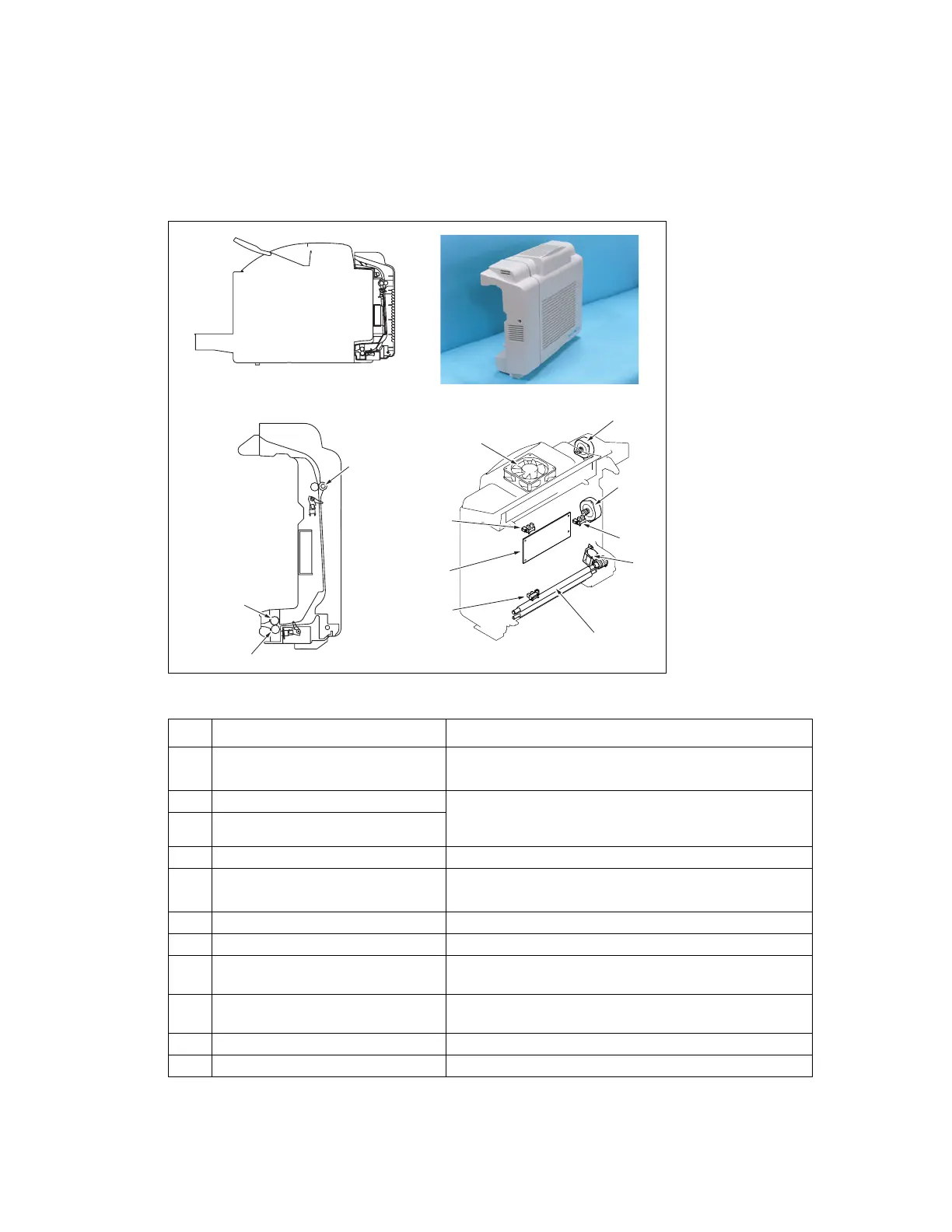

Duplex Unit
Key Name Function/System
[1] Duplex Unit Transport Roller 1 ■ Conveys paper in the Duplex Unit.
■ Driven by the Duplex Transport Motor.
[2] Duplex Registration Roller Starts feeding the paper from the Duplex Unit so that the
paper is correctly synchronized with the image on the
Transfer Belt.
[3] Duplex Unit Transport Roller 2
[4] Duplex Cooling Fan Motor (M10 DU) Cools the inside of the Duplex Unit.
[5] Duplex Reverse Motor (M9 DU)
■ Conveys the paper into the Duplex Unit.
■ Drives the Paper Exit Roller.
[6] Duolex Transport Motor (M8 DU) Conveys paper in the Duplex Unit.
[7] Duplex Door Sensor (PC11 DU) Determines whether the Duplex Door is open or closed.
[8] Duplex Registration Solenoid
(SL6 DU)
Controls drive of the Duplex Registration Roller.
[9] Duplex Paper Loop Sensor (PC10
DU)
Activated to allow a loop to be formed in the paper.
[10] Duplex Board (PWB-A DU) Controls drive of the Duplex Unit.
[11] Duplex Transport Sensor (PC12 DU) Detects paper conveyed into the Duplex Unit.
4057to2500c0
4057to2503c0
[1]
[2]
[3]
4057to2504c0
[5]
[6]
[7]
[8]
[2]
[9]
[10]
[11]
[4]
4057to2505c0

Xerox Phaser 6120 Specifications

General

Color	Yes
Print technology	Laser
Time to first page (black, normal)	13 s
Time to first page (color, normal)	22 s
Print speed (black, normal quality, A4/US Letter)	20 ppm
Print speed (color, normal quality, A4/US Letter)	5 ppm
Internal memory	128 MB
Processor model	300 MHz, 32 bit RISC
Maximum print size	210 x 297 mm
Maximum ISO A-series paper size	A4
I/O ports	USB
Power requirements	200 – 240 VAC / 100 – 127 VAC 50/60 Hz
Networking features	Ethernet/Fast-Ethernet
Non-operating relative humidity (non-condensing)	10 - 85 %
Total input capacity	200 sheets
Maximum input capacity	500 sheets
Printer fonts	PostScript
Maximum duty cycle	35000 pages per month
Number of PostScript fonts	139
Power consumption (printing)	380 W
Storage temperature (T-T)	-20 - 40 °C
Operating temperature (T-T)	10 - 32 °C
Operating relative humidity (H-H)	10 - 80 %

Weight and Dimensions

Dimensions (WxDxH)	442 x 395 x 341 mm
