Xerox Phaser 6120

Sensor Layout
Phaser® 6120 Color Laser Printer Service Manual
9-14

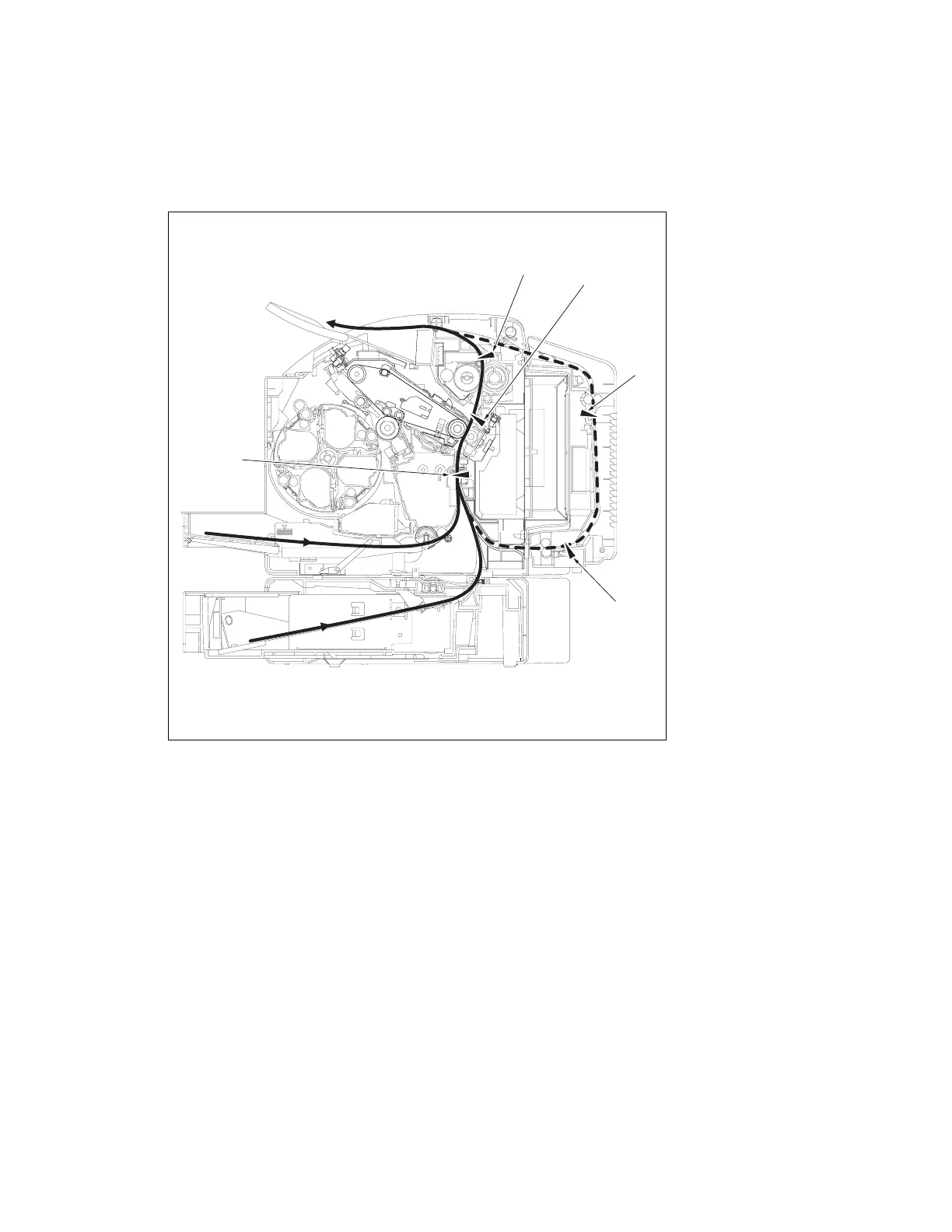

Sensor Layout
(shown with the Lower Feeder Unit and Duplex Unit)
[1] Exit Sensor PC7 [4] Duplex Paper Loop Sensor PC10
DU
[2] Fusing Paper Loop Sensor PC8 [5] Registration Sensor PC1
[3] Duplex Transport Sensor PC12
DU
4139fs4508c0
[1]
[2]
[3]
[5]
[4]
