Xerox Phaser 6120 Service Manual

Disassembly/Assembly Procedures
Phaser® 6120 Color Laser Printer Service Manual
5-33

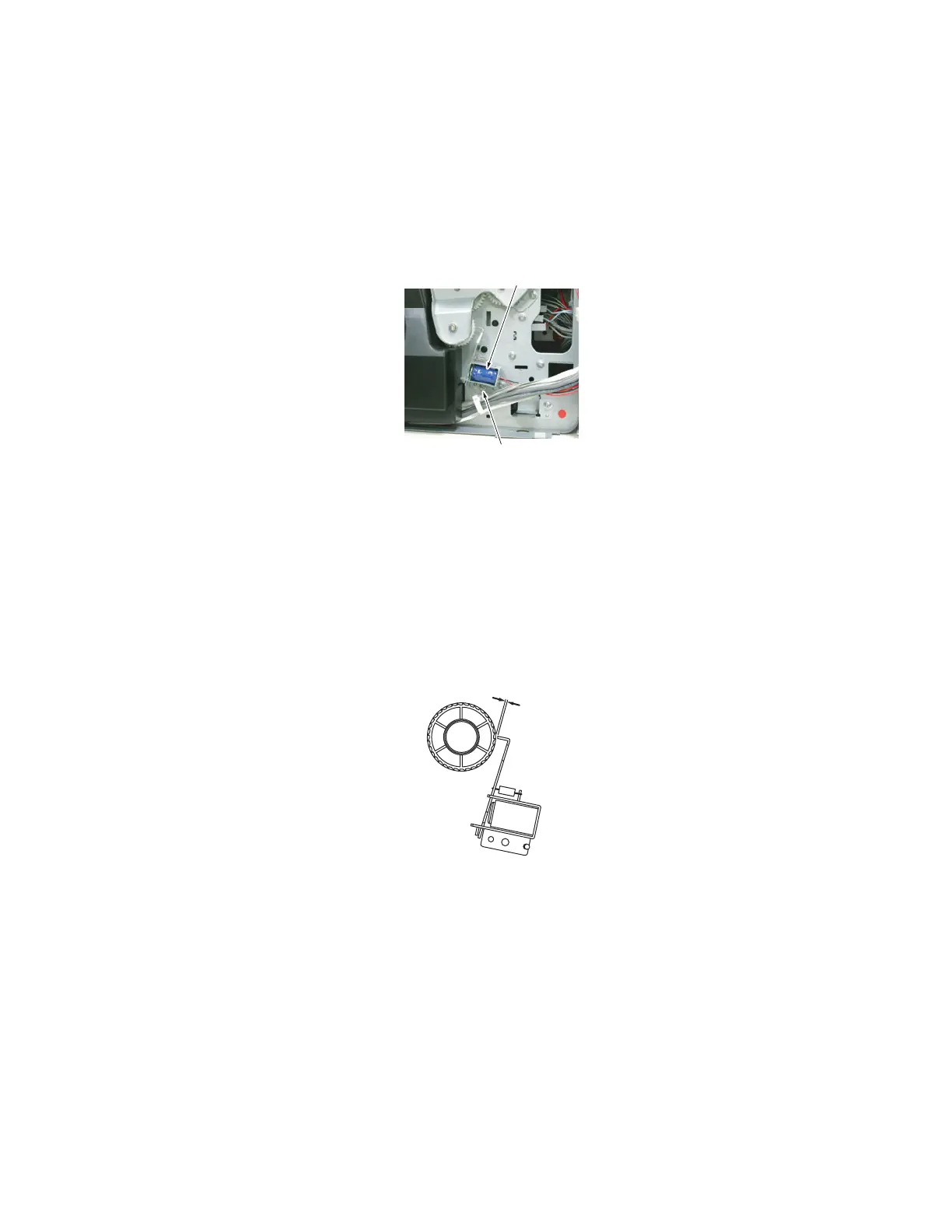

Registration Roller Solenoid (SL2)
1. Remove the Right Cover. See Right Cover on page 5-6.
2. Remove the Power Supply Cooling Fan Motor Assy. See Power Unit (PU) on page 5-14.
3. Disconnect the connector, remove the screw [1], and remove the Registration Roller
Solenoid [2].
Precaution for Reinstallation
■ Confirm that the registration roller solenoid is securely seated on the location pins,
before securing screw [1] to the chassis.
■ Reinstall the solenoid so that the clearance between the gear of the registration roller
clutch and flapper falls within the specified range.
Specifications: 1.0 ± 0.2 mm
[1]
[2]
4139fs2051c1
4139fs2067c1

Xerox Phaser 6120 Specifications

General

Color	Yes
Print technology	Laser
Time to first page (black, normal)	13 s
Time to first page (color, normal)	22 s
Print speed (black, normal quality, A4/US Letter)	20 ppm
Print speed (color, normal quality, A4/US Letter)	5 ppm
Internal memory	128 MB
Processor model	300 MHz, 32 bit RISC
Maximum print size	210 x 297 mm
Maximum ISO A-series paper size	A4
I/O ports	USB
Power requirements	200 – 240 VAC / 100 – 127 VAC 50/60 Hz
Networking features	Ethernet/Fast-Ethernet
Non-operating relative humidity (non-condensing)	10 - 85 %
Total input capacity	200 sheets
Maximum input capacity	500 sheets
Printer fonts	PostScript
Maximum duty cycle	35000 pages per month
Number of PostScript fonts	139
Power consumption (printing)	380 W
Storage temperature (T-T)	-20 - 40 °C
Operating temperature (T-T)	10 - 32 °C
Operating relative humidity (H-H)	10 - 80 %

Weight and Dimensions

Dimensions (WxDxH)	442 x 395 x 341 mm
