Xerox Phaser 6120 Service Manual

Disassembly/Assembly Procedures
Phaser® 6120 Color Laser Printer Service Manual
5-19

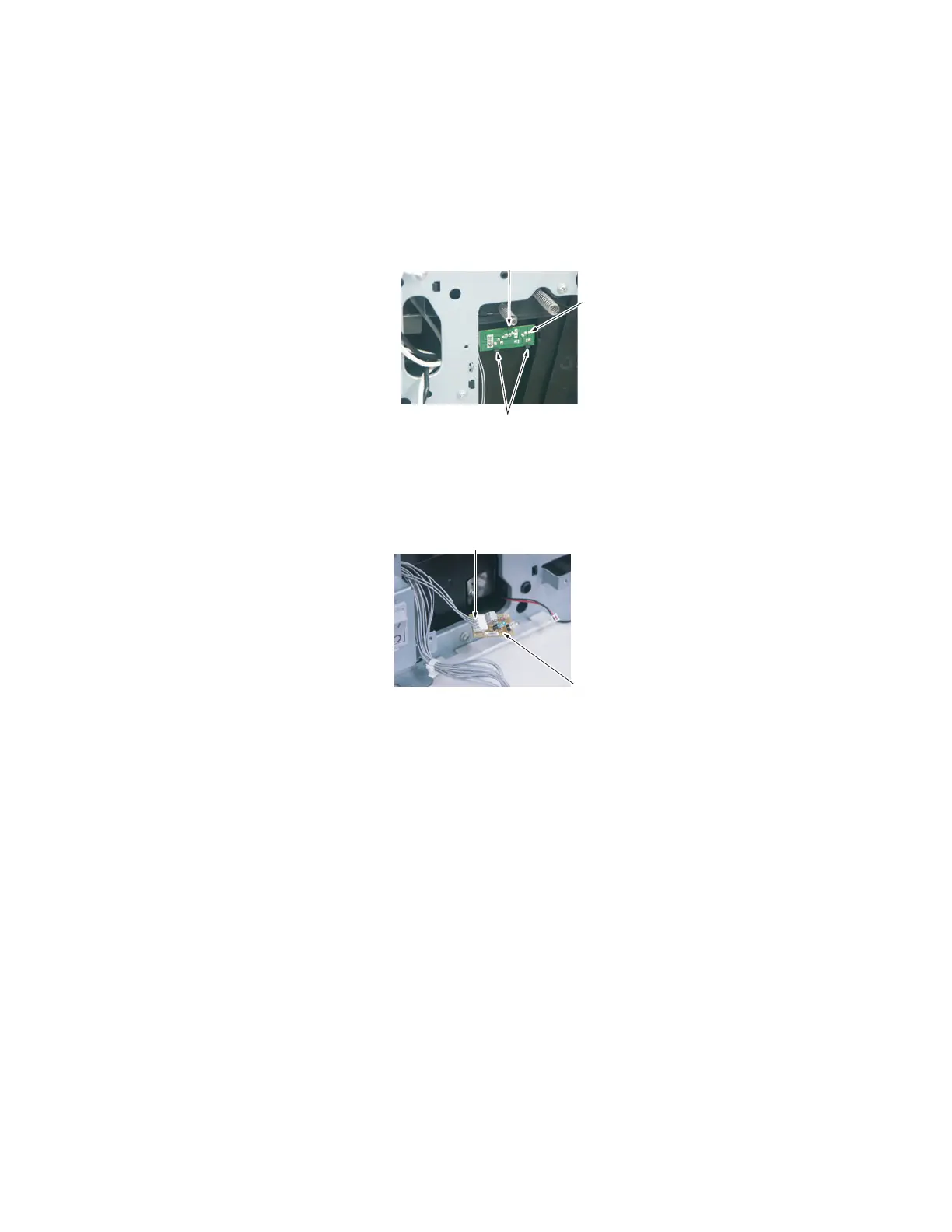

3. Unlock three tabs [5] and remove the Waste Toner Near Full Detection Board [6].
Note: When reinstalling the shield, make sure that no part of the harness is wedged in the
mechanism.
4. Disconnect the connector [8] of the Waste Toner Near Full Detection Board [7].
Laser (PH) Unit
Warning:
■ Ensure that the power is turned off and the power cord is disconnected from the printer
before performing this procedure.
■ Do not attempt to disassemble or adjust the Laser (PH) Unit.
1. Remove the Imaging Unit. See Imaging Unit on page 2-9.
2. Remove the Rear Cover. See Rear Cover on page 5-4.
3. Remove the Right Cover. See Right Cover on page 5-6.
4. Remove the Left Cover. See Left Cover on page 5-5.
5. Remove the Front Cover. See Front Cover on page 5-6.
[5]
[6]
[5]
4139fs2031c1
[8]
[7]
4139fs2032c1

Xerox Phaser 6120 Specifications

General

Color	Yes
Print technology	Laser
Time to first page (black, normal)	13 s
Time to first page (color, normal)	22 s
Print speed (black, normal quality, A4/US Letter)	20 ppm
Print speed (color, normal quality, A4/US Letter)	5 ppm
Internal memory	128 MB
Processor model	300 MHz, 32 bit RISC
Maximum print size	210 x 297 mm
Maximum ISO A-series paper size	A4
I/O ports	USB
Power requirements	200 – 240 VAC / 100 – 127 VAC 50/60 Hz
Networking features	Ethernet/Fast-Ethernet
Non-operating relative humidity (non-condensing)	10 - 85 %
Total input capacity	200 sheets
Maximum input capacity	500 sheets
Printer fonts	PostScript
Maximum duty cycle	35000 pages per month
Number of PostScript fonts	139
Power consumption (printing)	380 W
Storage temperature (T-T)	-20 - 40 °C
Operating temperature (T-T)	10 - 32 °C
Operating relative humidity (H-H)	10 - 80 %

Weight and Dimensions

Dimensions (WxDxH)	442 x 395 x 341 mm
