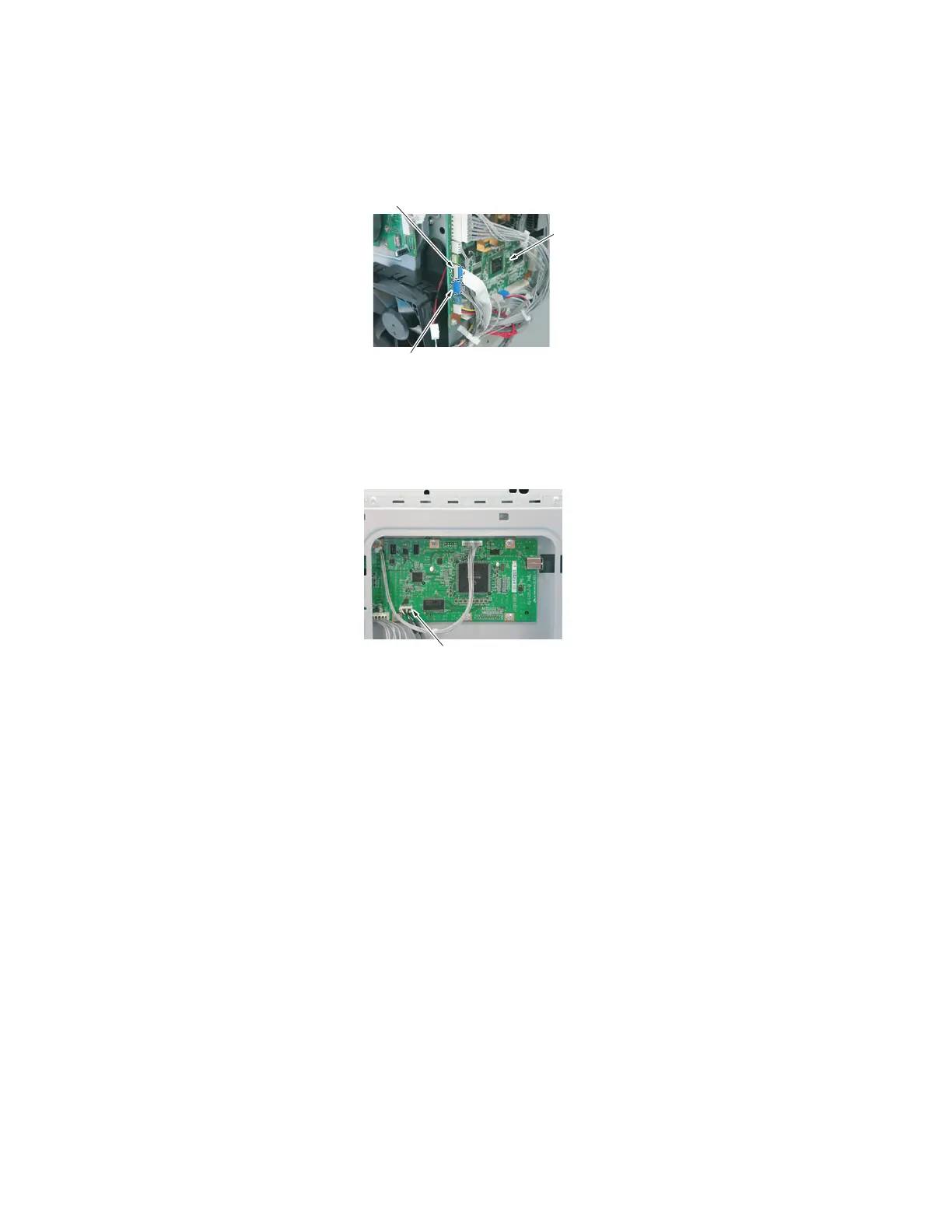

6. Disconnect the connector (PJ20) [2] and the flat cable (PJ19) [3] from the PWB-A (Engine
Control Board) [1].
7. Disconnect the connector (PJ107) from the PWB-P (Image Processor Board) [4].
8. Open the Top Cover.
