Xerox Phaser 6120 Service Manual

Print Engine Theory of Operation
Phaser® 6120 Color Laser Printer Service Manual
7-12

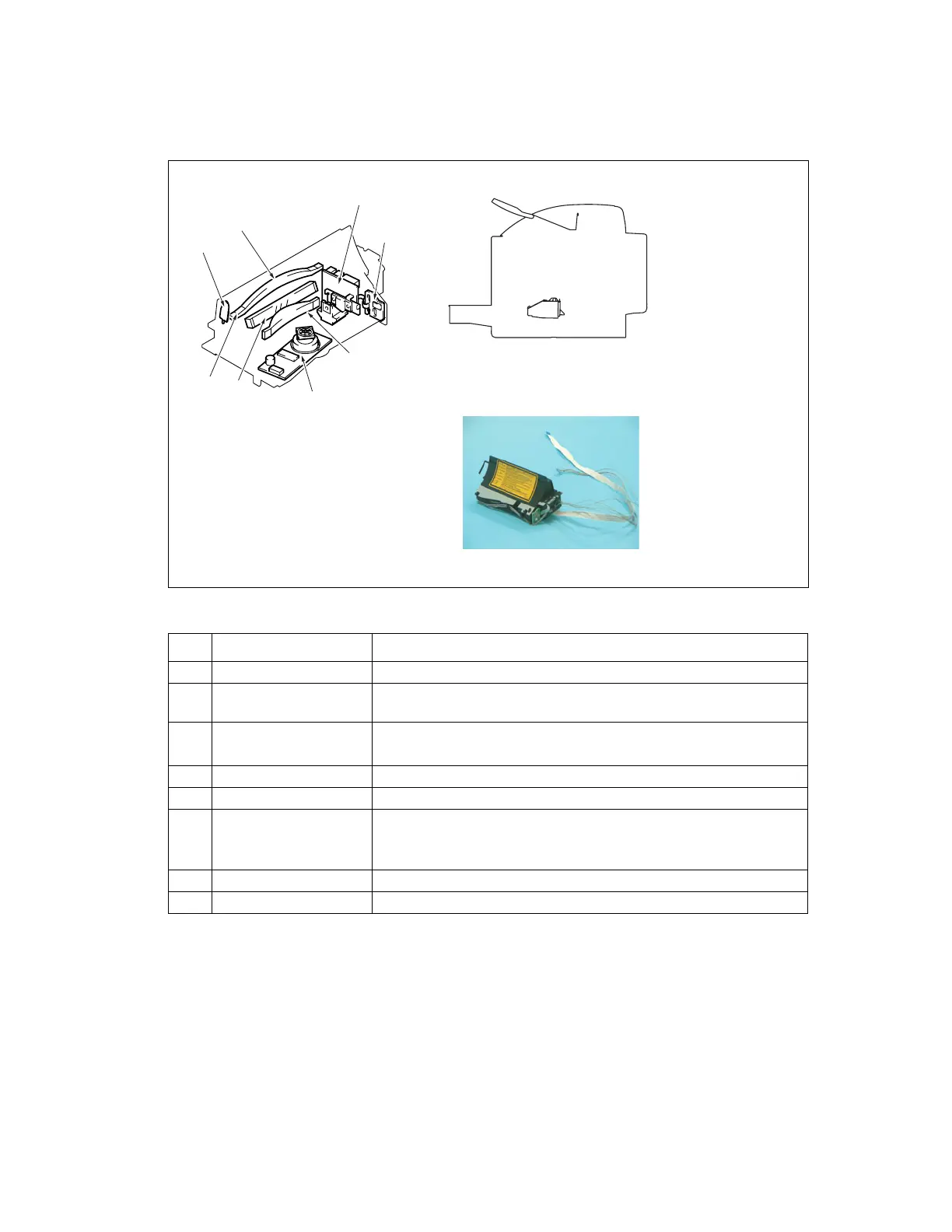

Laser (PH)
Warning: The Laser Assembly is spared as one component. DO NOT disassemble the
Laser Assembly or personal injury can result.
Key Name Function/System
[1] SOS Mirror Condenses the incident laser light onto the SOS Sensor.
[2] G2 Lens Condenses the incident laser light, with which the Photo Conductor is
irradiated.
[3] Semiconductor Laser
■ Emits a laser light.
■ Two-beam array LD
[4] SOS Sensor Produces an SOS signal using the incident laser light.
[5] G1 Lens Corrects the condensing angle of the incident laser light.
[6] Polygon Mirror
■ Scans the incident laser light in the main scan direction and
reflects it onto the G1 Lens.
■ Four-face polygon mirror
[7] Return Mirror Reflects the laser light condensed by the G1 Lens onto the G2 Lens.
[8] G2 Lens (SOS Lens) Condenses the incident laser light onto the SOS Sensor.
4139to2002c0
4139to1568c0
4139to2001c1
[2]
[1]
[7]
[8]
[6]
[5]
[4]
[3]

Xerox Phaser 6120 Specifications

General

Color	Yes
Print technology	Laser
Time to first page (black, normal)	13 s
Time to first page (color, normal)	22 s
Print speed (black, normal quality, A4/US Letter)	20 ppm
Print speed (color, normal quality, A4/US Letter)	5 ppm
Internal memory	128 MB
Processor model	300 MHz, 32 bit RISC
Maximum print size	210 x 297 mm
Maximum ISO A-series paper size	A4
I/O ports	USB
Power requirements	200 – 240 VAC / 100 – 127 VAC 50/60 Hz
Networking features	Ethernet/Fast-Ethernet
Non-operating relative humidity (non-condensing)	10 - 85 %
Total input capacity	200 sheets
Maximum input capacity	500 sheets
Printer fonts	PostScript
Maximum duty cycle	35000 pages per month
Number of PostScript fonts	139
Power consumption (printing)	380 W
Storage temperature (T-T)	-20 - 40 °C
Operating temperature (T-T)	10 - 32 °C
Operating relative humidity (H-H)	10 - 80 %

Weight and Dimensions

Dimensions (WxDxH)	442 x 395 x 341 mm
