Xerox Phaser 6120

Print Engine Parts List
Phaser® 6120 Color Laser Printer Service Manual
6-12

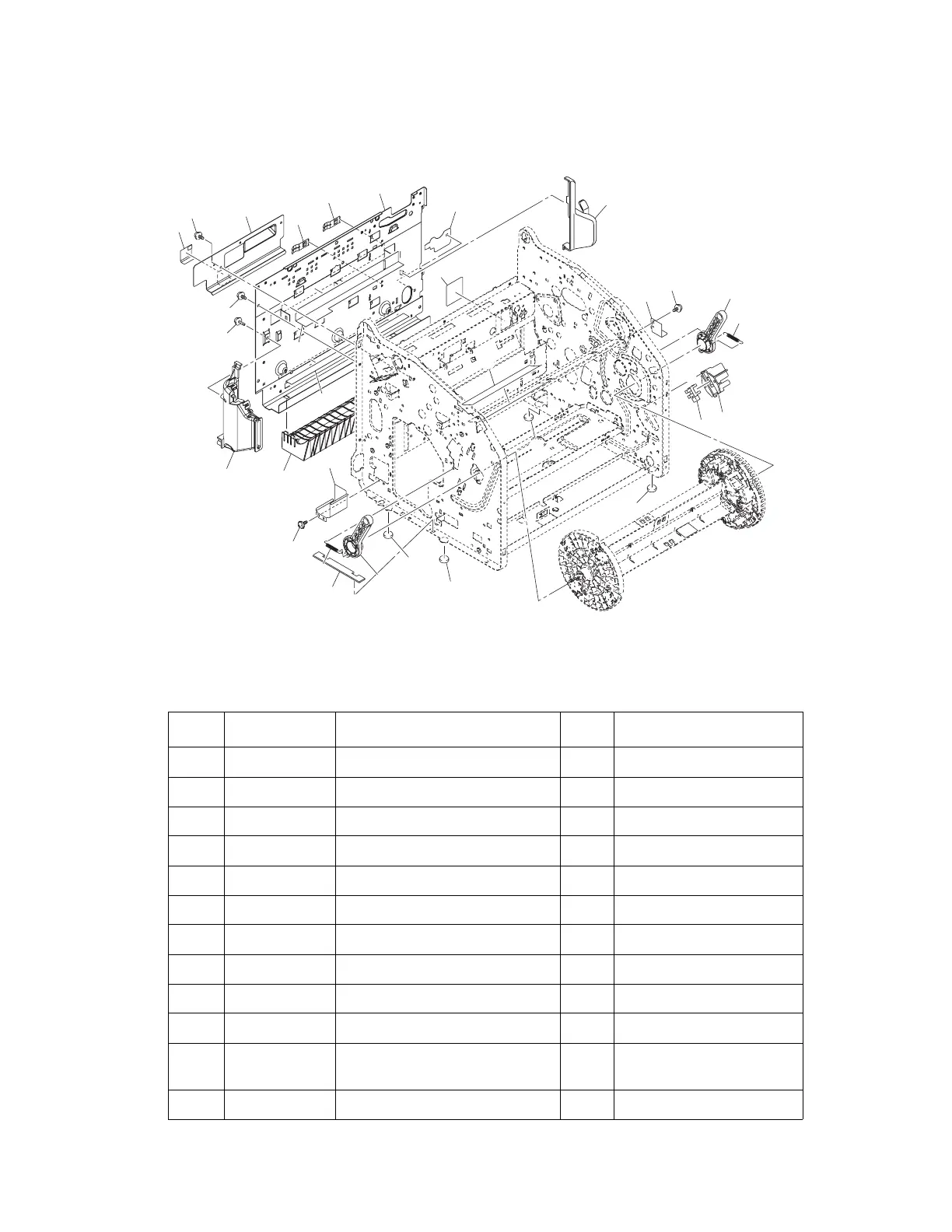

P4 Main Frame
P4 Main Frame Parts List Table
Key Part No. Description Qty Comments
1 SEAL 1
2 COVER 1
3 EARTH GROUND 2
4FRAME 1
5 SEAL 1
6 DUCT 1
7 COVER 1
8 LEVER 2
9 TENSION SPRING 2
10 SEAL 1
11 LABEL CONSUMABLES
REODER
1
12 019E74390 HOLDER 1
